Lascar EL-21CFR-2-LCD Dew Point, Humidity, Temperature Data Logger, USB, Battery Powered, LCD Display, IP67

  • RS庫存編號 876-2560
  • 製造零件編號 EL-21CFR-2-LCD
  • 製造商 Lascar
產品概覽和技術數據資料表
法例與合規
相容
COO (Country of Origin): CN
產品詳細資訊

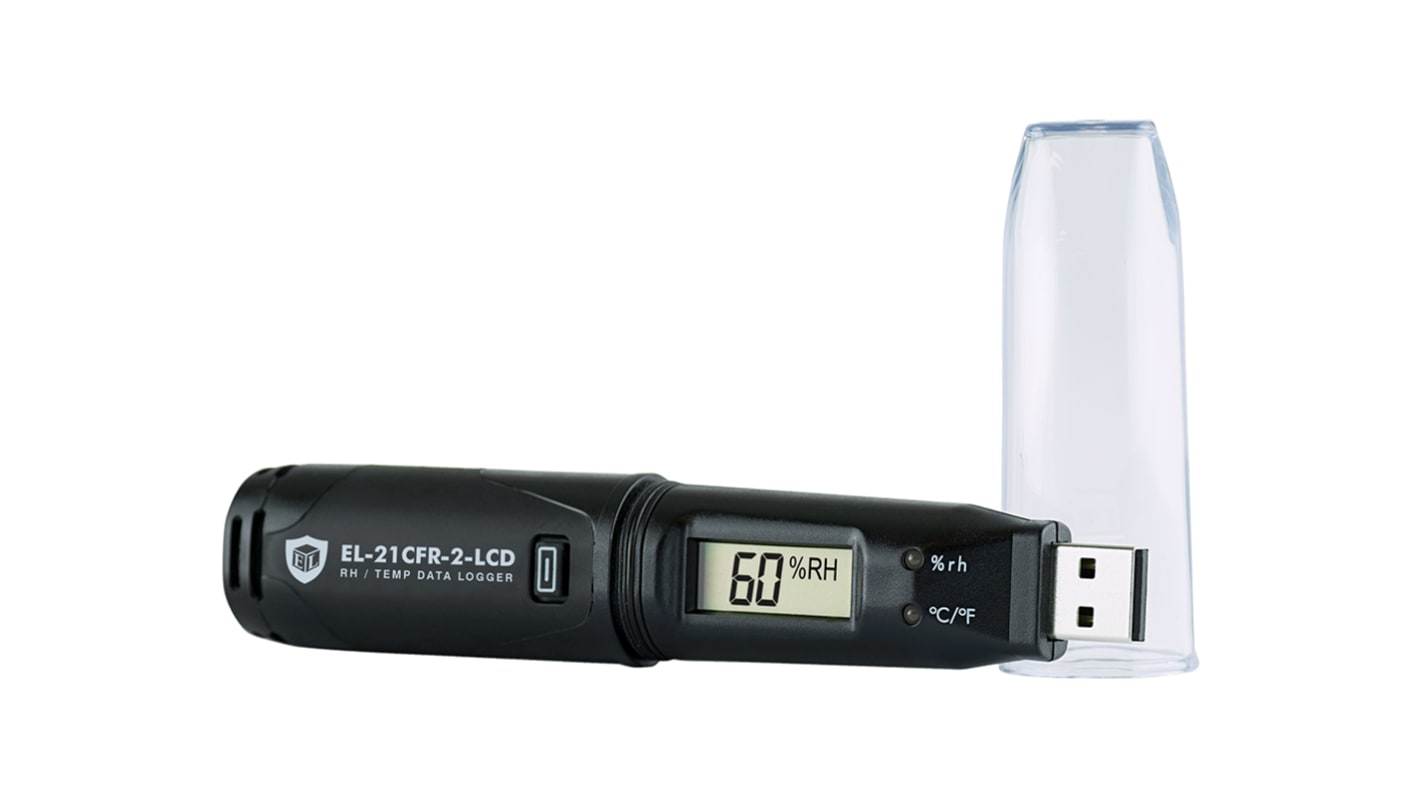

Lascar EL-21CFR-2-LCD Temperature, Humidity & Dew Point Data Logger with LCD Screen

This stand-alone data logger can measure and store more than 16,000 temperature and humidity readings from -35 to +80°C (-31 to +176°F) and 0 to 100% RH range at a resolution of 0.5°C (1°F) and 0.5% RH. The user can easily set up the logger and view downloaded data by plugging the data logger into a PC USB port and using the free EasyLog software. Data, including calculated dew point, can then be graphed, printed and exported to other applications for detailed analysis. The encrypted data has full audit tracking to comply with the requirements of 21CFR Part 11. The high contrast LCD can show a variety of temperature and humidity information. At the touch of a button, the user can cycle between the current temperature and humidity, along with the maximum and minimum stored values for temperature and humidity. The logger is protected against ingress from water and dust to IP67 when the cap is fitted. EL-21CFR-2-LCD applications include: pharmaceutical fridge monitoring; environmental and weather monitoring; agricultural and livestock; food and drink; building and site monitoring; HVAC.

EasyLog 21CFR software available as a free download
-35 to +80°C (-31 to +176°F) and 0 to 100% RH measurement range
Logging rates between 10 seconds and 12 hours
High contrast LCD, with 2 digit temperature and humidity display function
Immediate, delayed and push-to-start logging
Use as part of a 21CFR Part 11 compliant system
Software link to product details - https://www.lascarelectronics.com/software/easylog-21cfr/

Note

EasyLog 21CFR software is not compatible with Mac or Linux

Supplied with

1/2 AA battery and wall mount clip

Lascar Data Loggers

The Lascar EL-USB-2-LCD USB standalone data logger measures and stores over 16,000 temperature and humidity readings between -35°C and 80°C (-31°F to +176°F). It has a 0 to 100% RH range at a resolution of 0.5°C (1°F) and 0.5% RH. At the touch of a button, use the on-board display to cycle between the current, minimum and maximum temperature logs seen during the session for both, temperature and humidity. The user can easily set up the logger and view the downloaded data by plugging the data logger into a PC’s USB port and using the free EasyLog 21CFR software. Data can then be graphed, printed and exported to other applications for a detailed analysis.

Features and Benefits


The measurement ranges between -35°C and 80°C (-31°F and 176°F)
• Temperature measurement accuracy is ±0.55°C
• Humidity measurement accuracy is ±2.25% RH
• Logging rates between 10 seconds and 12 hours
• Number of readings per channel is ?????
• Immediate and delayed logging start
• User-programmable alarm thresholds for both, temperature and humidity
• Battery life is up to 3 years
• Supplied with a 1/2AA lithium metal battery
• High contrast LCD, with two and a half digit temperature and humidity display function
• Use as part of a 21CFR Part 11 compliant system
• Export to Excel functionality

Applications


Vaccine storage
• Cold chain in the pharma industry
• Blood and blood components storage
• Veterinary

Certifications


IP67 Rated

規格
Attribute Value
Measurement Parameters Dew Point, Humidity, Temperature
Sensor Type Dew Point, Humidity, Temperature
Number of Input Channels 2
Interface Type USB
Maximum Temperature Measurement +80 °C
Power Source Battery
Best Temperature Measurement Accuracy ± 0.55 °C
IP Rating IP67
Minimum Operating Temperature -35°C
Maximum Operating Temperature +80°C
Display Type LCD
Dimensions 126 x 25 x 22mm
Number of Readings Per Channel 16382
Alarm Yes
Humidity Measurement Resolution 0.5%RH
Battery Life 2 yr
Best Humidity Measurement Accuracy ± 2.25 %RH
Includes 1/2 AA battery and wall mount clip
Battery Type 1/2 AA Lithium
Temperature Measurement Resolution 0.5°C
Maximum Humidity Measurement 100%RH
