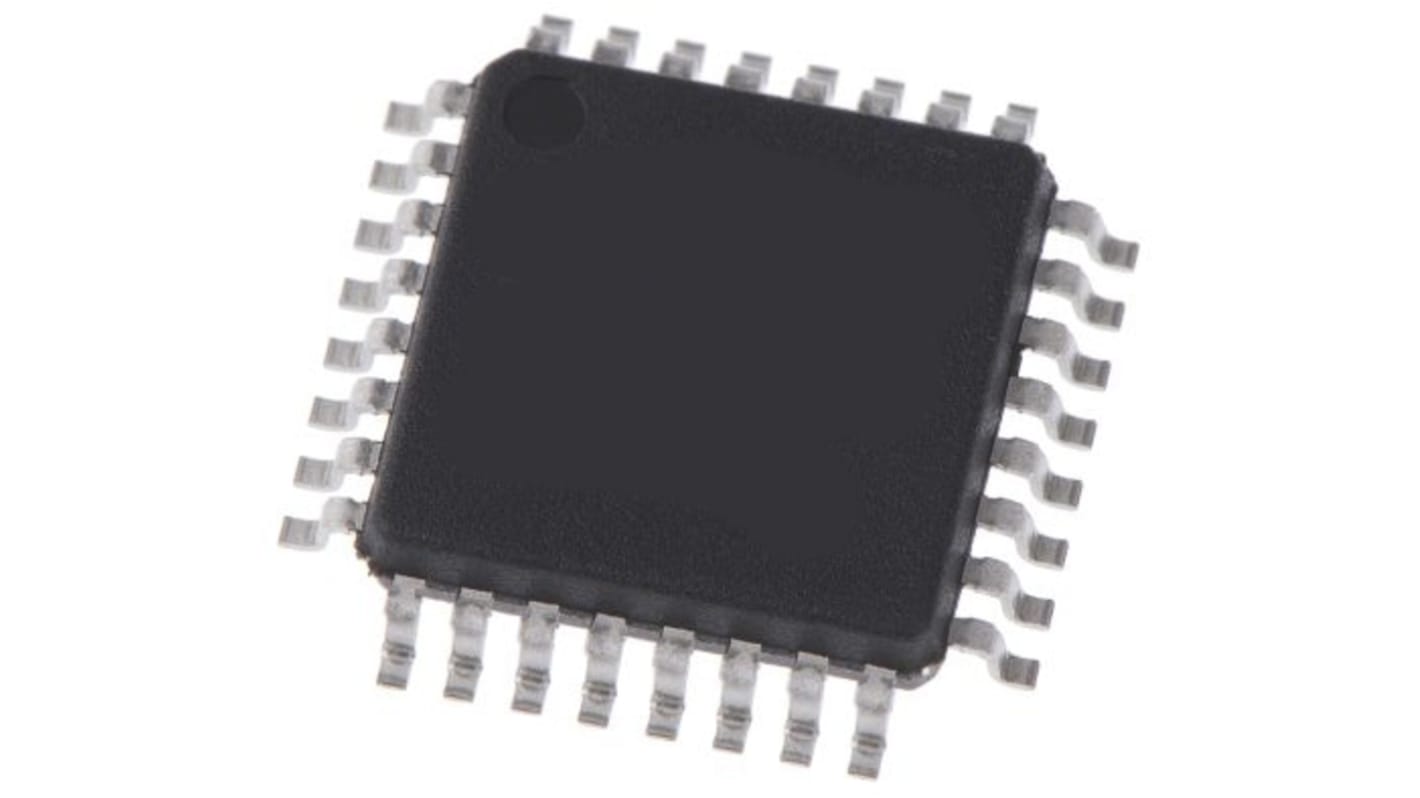

onsemi 12.2ns Delay Line, 32-Pin LQFP
- RS庫存編號:
- 186-9167P
- 製造零件編號:
- MC100EP195FAG
- 製造商:
- onsemi
可享批量折扣
小計 63 件 (以盤裝提供)*
HK$9,683.10
訂單超過 HK$250.00 免費送貨
有庫存
- 250 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 63 - 124 | HK$153.70 |
| 125 + | HK$150.60 |
* 參考價格
- RS庫存編號:
- 186-9167P
- 製造零件編號:
- MC100EP195FAG
- 製造商:
- onsemi
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | onsemi | |
| Logic Function | Delay Line | |
| Mounting Type | Surface Mount | |
| Package Type | LQFP | |
| Pin Count | 32 | |
| Dimensions | 7 x 7 x 1.45mm | |
| Total Number of Taps | 1024 | |
| Absolute Increment | 10ps | |
| Delay to First Tap | 2.2ns | |
| Maximum Delay Time | 12.2ns | |
| Maximum Operating Supply Voltage | 3.6 V | |
| Number of Independent Delay Inputs | 10 | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Supply Voltage | 3 V | |
| Minimum Operating Temperature | -40 °C | |
| 選取全部 | ||
|---|---|---|
品牌 onsemi | ||
Logic Function Delay Line | ||
Mounting Type Surface Mount | ||
Package Type LQFP | ||
Pin Count 32 | ||
Dimensions 7 x 7 x 1.45mm | ||
Total Number of Taps 1024 | ||
Absolute Increment 10ps | ||
Delay to First Tap 2.2ns | ||
Maximum Delay Time 12.2ns | ||
Maximum Operating Supply Voltage 3.6 V | ||
Number of Independent Delay Inputs 10 | ||
Maximum Operating Temperature +85 °C | ||
Minimum Operating Supply Voltage 3 V | ||
Minimum Operating Temperature -40 °C | ||
- COO (Country of Origin):
- CN
Maximum Frequency > 1.2 Ghz Typical
Programmable Range: 2.2 ns to 12.2 ns
10 ps Increments
PECL Mode Operating Range: VCC = 3.0 V with VEE = 0 V
NECL Mode Operating Range: VCC = 0 V with VEE = -3.0 V
Open Input Default State
Safety Clamp on Inputs
A Logic High on the ENbar Pin Will Force Q to Logic Low
D[0:10] Can Accept Either ECL, CMOS, or TTL Inputs.
VBB Output Reference Voltage
Applications
Automated Test Equipement (ATE)
General Purpose Data and Clock Interface
Programmable Range: 2.2 ns to 12.2 ns
10 ps Increments
PECL Mode Operating Range: VCC = 3.0 V with VEE = 0 V
NECL Mode Operating Range: VCC = 0 V with VEE = -3.0 V
Open Input Default State
Safety Clamp on Inputs
A Logic High on the ENbar Pin Will Force Q to Logic Low
D[0:10] Can Accept Either ECL, CMOS, or TTL Inputs.
VBB Output Reference Voltage
Applications
Automated Test Equipement (ATE)
General Purpose Data and Clock Interface
