- RS庫存編號:
- 230-9052P
- 製造零件編號:
- NCID9210R2
- 製造商:
- onsemi
750 現貨庫存,可於3工作日發貨。
已增加
單價 个 (以每卷裝提供) Quantities below 150 on continuous strip
HK$43.33
單位 | Per unit |
10 - 98 | HK$43.33 |
100 - 198 | HK$42.025 |
200 - 498 | HK$40.765 |
500 + | HK$39.545 |
- RS庫存編號:
- 230-9052P
- 製造零件編號:
- NCID9210R2
- 製造商:
- onsemi
產品概覽和技術數據資料表
法例與合規
產品詳細資訊

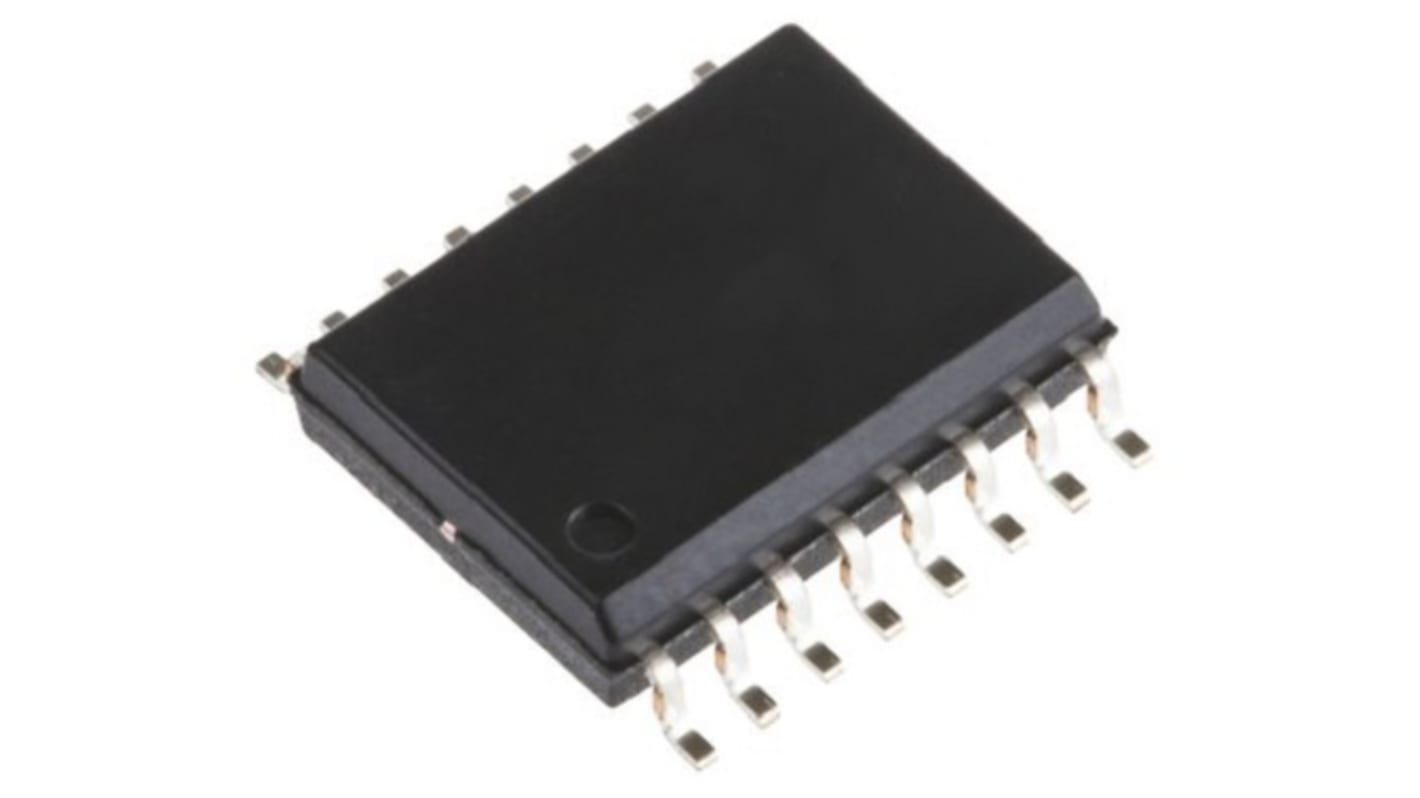

The ON Semiconductor series NCID9210 is galvanic ally isolated full duplex, bi−directional, high−speed dual−channel digital isolators. These devices support isolated communications thereby allowing digital signals to communicate between systems without conducting ground loops or hazardous voltages. They utilize ON Semiconductor patented galvanic off−chip capacitor isolation technology and optimized IC design to achieve high insulation and high noise immunity, characterized by high common mode rejection and power supply rejection specifications.
Full Duplex, Bi−directional Communication
8 mm Creepage and Clearance Distance to Achieve Reliable High Voltage Insulation.
Over Temperature Detection
NCIV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
8 mm Creepage and Clearance Distance to Achieve Reliable High Voltage Insulation.
Over Temperature Detection
NCIV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
AEC−Q100 Qualified and PPAP Capable (Pending)
Safety and Regulatory Approvals: UL1577, 5000 VRMS for 1 Minute, DIN VDE V 0884−11 (Pending
Safety and Regulatory Approvals: UL1577, 5000 VRMS for 1 Minute, DIN VDE V 0884−11 (Pending
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
規格
Attribute | Value |
---|---|
Maximum Data Rate | 50Mbps |
Number of Channels | 2 |
Package Type | SOIC |
Maximum Forward Voltage | 5V |
Maximum Input Current | 2 A |
Isolation Voltage | 2 kV |
Number of Pins | 16 |
