- RS庫存編號:
- 823-2044
- 製造零件編號:
- Si8651AB-B-IS1
- 製造商:
- Skyworks Solutions Inc
160 現貨庫存,可於3工作日發貨。
已增加
單價 个(每托盘 5 )
HK$32.632
單位 | Per unit | Per Pack* |
5 - 10 | HK$32.632 | HK$163.16 |
15 - 20 | HK$31.82 | HK$159.10 |
25 + | HK$31.328 | HK$156.64 |
* 參考價格 |
- RS庫存編號:
- 823-2044
- 製造零件編號:
- Si8651AB-B-IS1
- 製造商:
- Skyworks Solutions Inc
產品概覽和技術數據資料表
法例與合規
產品詳細資訊

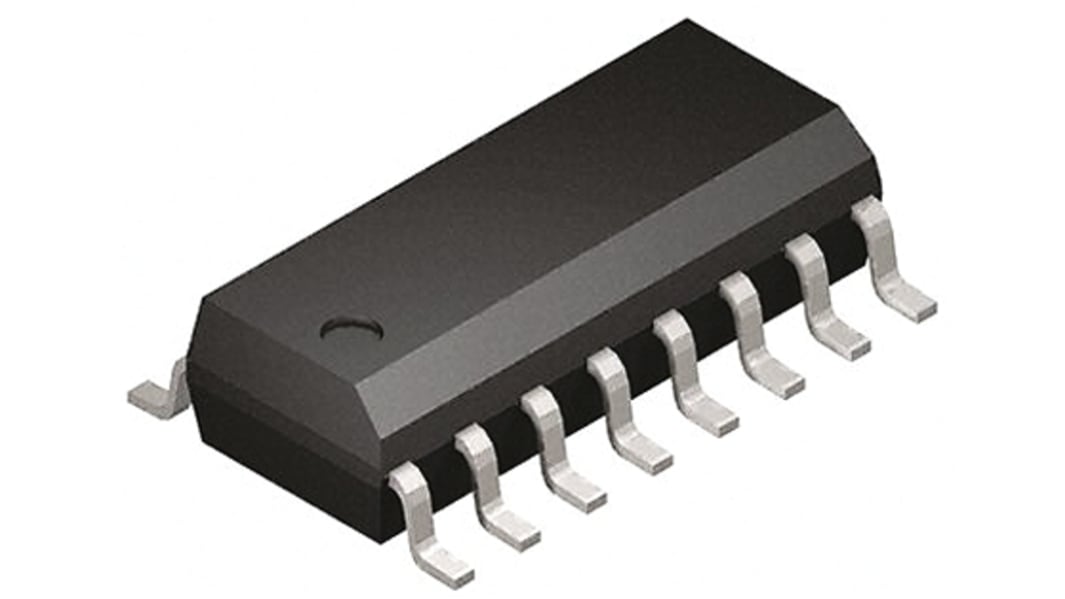

Si865x Series 5-channel Digital Isolators
The Si865x Series of five-channel digital isolators, based on the proprietary capacitive isolation technology, enable low propagation delay and skew, low emissions, high noise immunity and high reliability for a long lifecycle.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Digital Isolators, Silicon Laboratories
The Silicon Labs broad range of Digital Isolation products offers significant improvements over older isolation technologies such as opto-couplers. They demonstrate lower power consumption, greater reliability and higher performance, and are generally smaller in size and lower in cost. These CMOS-based devices exhibit stable operating characteristics over a wide temperature range and do not suffer from the lifespan limitations of opto-coupled devices.
規格
Attribute | Value |
---|---|
Number of Channels | 5 |
Maximum Data Rate | 1Mbps |
Package Type | SOIC |
Maximum Input Current | 9.2 mA dc |
Isolation Voltage | 2500 Vrms |
Rise Time | 4ns |
Number of Pins | 16 |
Mounting Type | Surface Mount |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +125°C |
Length | 9.9mm |
Depth | 1.25mm |
Width | 3.9mm |
