Weidmuller PRO ECO DIN Rail Power Supply, 85 → 264V ac ac, dc Input, 12V dc dc Output, 6A Output, 72W
- RS庫存編號:
- 923-6532
- 製造零件編號:
- 1469570000
- 製造商:
- Weidmuller
查看所有DIN Rail Power Supplies
- RS庫存編號:
- 923-6532
- 製造零件編號:
- 1469570000
- 製造商:
- Weidmuller
- COO (Country of Origin):
- CN
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- CN
產品詳細資訊

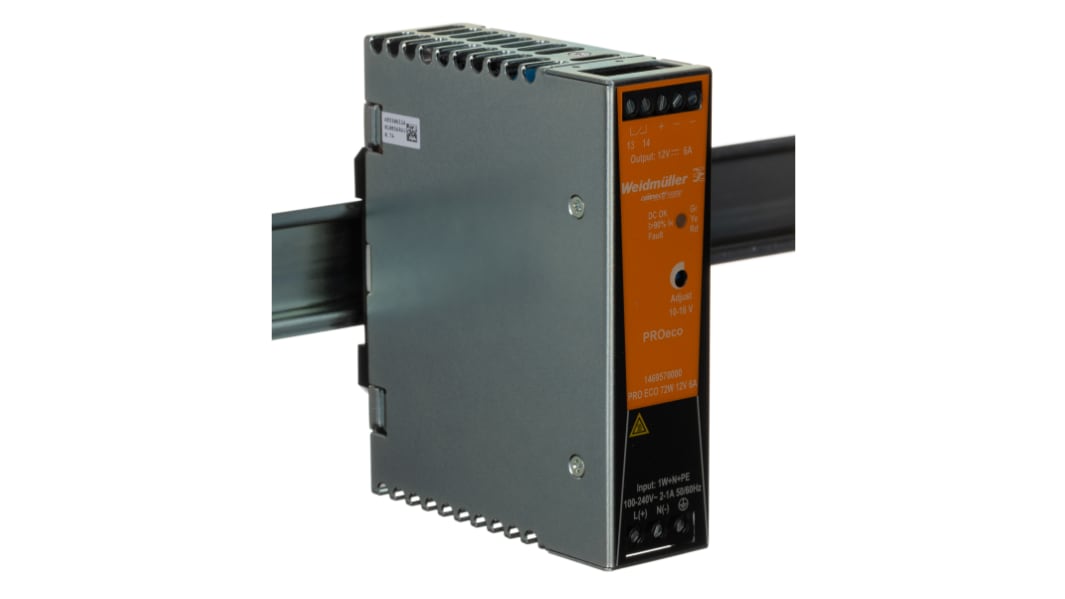

Weidmuller DIN Rail Power Supply, 80 to 370V DC Input Voltage Range, 72W Output Power - PRO ECO Series - 1469570000
In the market for a DIN rail power supply with a light carbon footprint? This one from Weidmuller is just the thing. Thanks to its efficiency of 85%, you can trust this is an energy-saving unit. Its switching regulator supports input voltages from 85 to 264V AC or 80 to 370V DC and outputs a stable voltage of 12V DC, making it ideal for powering small components like LED lights. The product's comprehensive electrical specs, including protection against short circuits and overload, mean you and your equipment won't be shocked by harmful faults.
Features & Benefits
• Tricolour LED status indication makes diagnostics easy
• Output power of 72W for use in heavy-duty applications
• Wide operating temperature range of -25°C to +70°C for use in demanding work environments
• Output power of 72W for use in heavy-duty applications
• Wide operating temperature range of -25°C to +70°C for use in demanding work environments
Applications
• Solenoids
• Actuators
• Relays
• Security and alarms
• Actuators
• Relays
• Security and alarms
Is this unit safe to handle?
Yes, this unit has an IP20 rating, so it's finger-safe and protected against tools and objects larger than 12mm in size for safe handling.
規格
| Attribute | Value |
| Output Voltage | 12V dc |
| Output Current | 6A |
| AC or DC Input Voltage | ac, dc |
| AC or DC Output Voltage | dc |
| Input Voltage | 85 → 264V ac |
| Power Rating | 72W |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Mounting Type | DIN Rail Mount |
| Height | 125mm |
| Series | PRO ECO |
| Depth | 120mm |
| Ripple And Noise | <50mV |
| Minimum Temperature | -25°C |
| MTBF | >500000h |
| Special Features | Flexible, High Performance |
| Maximum Temperature | +70°C |
| Standards Met | 61000-4-4, 61000-4-5, 61000-4-6, CE Certified, cULus Listed, EAC, EN 50178/VDE 0160, EN 55022, EN 60204, EN 60950, EN 61000-3-2, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8, IEC 1709, IEC 60068-2-27, IEC 60068-2-6, IEC 61558-2-16, VDE 0100-410/DIN57100-410, VDE 0106-101 |
