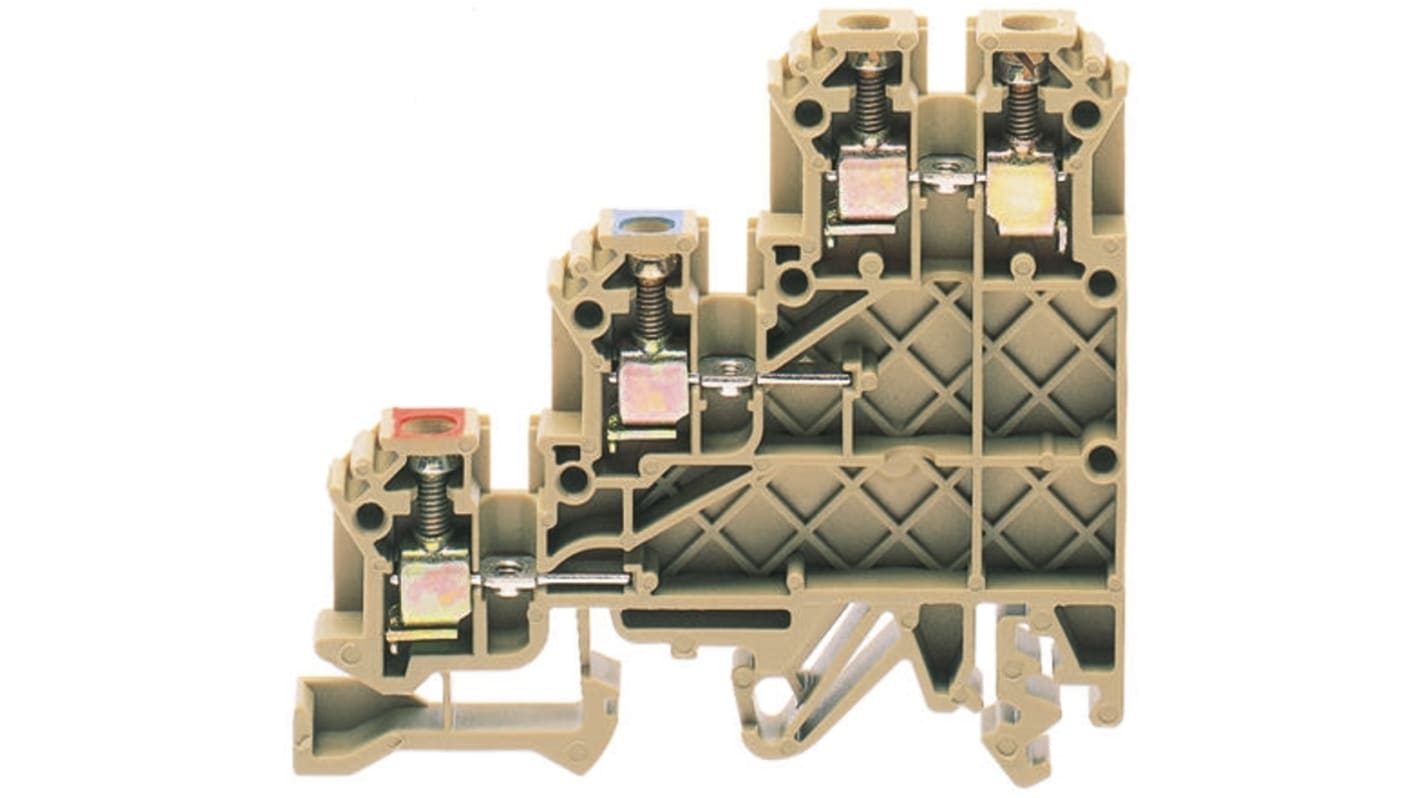

RS PRO Brown DIN Rail Terminal Block, 0.2 → 2.5mm², Triple-Level
- RS庫存編號:
- 501-667
- 製造商:
- RS PRO
- RS庫存編號:
- 501-667
- 製造商:
- RS PRO
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- DE
產品詳細資訊
Three Tier Terminals
Triple decker for improved connection density in sensor/actuator appplications
All levels can be cross connected using Jumper Bar
3 in 1 out design makes providing common potentials simple
24V PNP/NPN versions have internally connected red LED
All three levels can accommodate 5mm clip-in markers
Combi foot for Top Hat and G rail
All levels can be cross connected using Jumper Bar
3 in 1 out design makes providing common potentials simple
24V PNP/NPN versions have internally connected red LED
All three levels can accommodate 5mm clip-in markers
Combi foot for Top Hat and G rail
Note
Please see jumper bars for compatibility
Approvals
UL, CSA, NEMKO
規格
Attribute | Value |
|---|---|
| Colour | Brown |
| Number of Levels | Triple |
| American Wire Gauge | 22 → 12AWG |
| Series | IK |
| Cable CSA | 0.2 → 2.5mm² |
| Current Rating | 24A |
| Voltage Rating | 300 V |
| Pitch | 5mm |
