    ABB 10W Bell Transformer, CE, 230V Primary, 4 → 12V ac Secondary

    RS庫存編號:
    179-2210
    製造零件編號:
    2CSM228715R0802 TM10/12
    製造商:
    ABB
    ABB
    查看所有DIN Rail Transformers
    8 現貨庫存,可於3工作日發貨。
    Add to Basket
    單位

    已增加

    單價 個

    原價 HK$346.91

    您付款

    HK$313.87

    單位Per unit
    1 +HK$313.87
    RS庫存編號:
    179-2210
    製造零件編號:
    2CSM228715R0802 TM10/12
    製造商:
    ABB

    產品概覽和技術數據資料表


    法例與合規


    產品詳細資訊

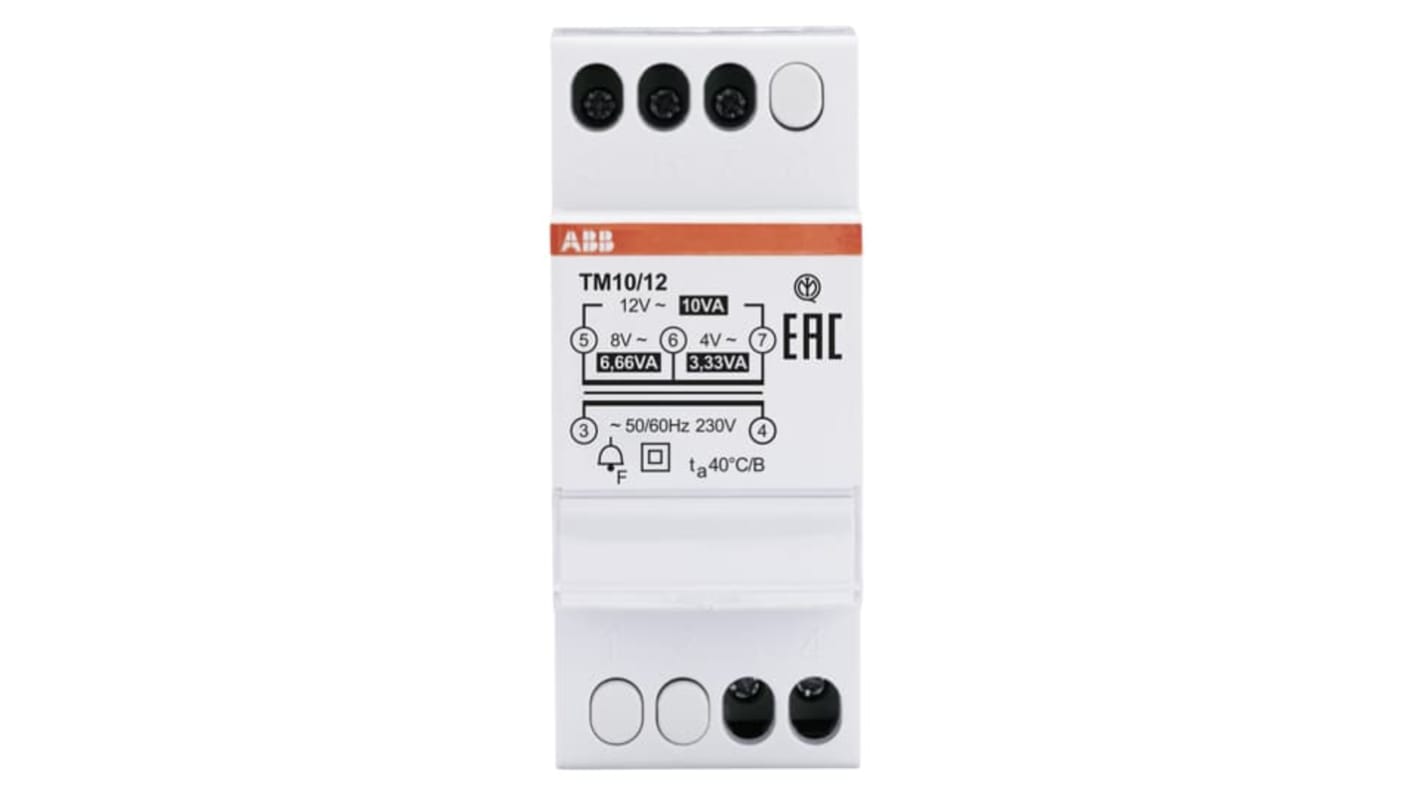

    ABB DIN Rail Bell Transformer, Fail-Safe Behaviour, IP20 Rating - TM Series - 2CSM228715R0802 TM10/12


    Try this DIN rail bell transformer from ABB to safely step down primary voltages of 230V AC from a mains supply. It outputs secondary voltages of 4, 8 and 12V AC so it's suitable for use with a discontinuous load like a doorbell that you use intermittently. As this is a fail-safe transformer, you can trust it's a safe option as it won't function in overload or short-circuit conditions. Double insulation between its primary and secondary windings indicates effective electrical isolation so there's little risk you'll make accidental contact with harmful high voltages. This unit also offers a SELV circuit that provides grounding as a further safety precaution.

    Features & Benefits


    • Label space on consumer unit helps with organisation
    • Class B insulator, so has a maximum allowable temperature of +130°C for use in harsh environments
    • Compact dimensions of 85 (H) x 36 (W) x 65mm (D) make it easy to fit into a crowded board
    • DIN rail mounting style for fast, tool-free installation onto a standard 35mm DIN rail

    Applications


    • Medical devices
    • HVAC systems
    • Process control

    Does this transformer have ingress protection?


    This unit is IP20 rated, so it's finger-safe and protected against objects larger than 12mm.


    規格

    AttributeValue
    Primary Voltage Rating230V
    Secondary Voltage Rating4 → 12V ac
    Power Rating10W
    Length85mm
    Width35mm
    Depth65mm
    Dimensions85 x 35 x65mm
    Minimum Operating Frequency50Hz
    Maximum Operating Frequency60Hz
    Standards MetCE
    Weight300g
