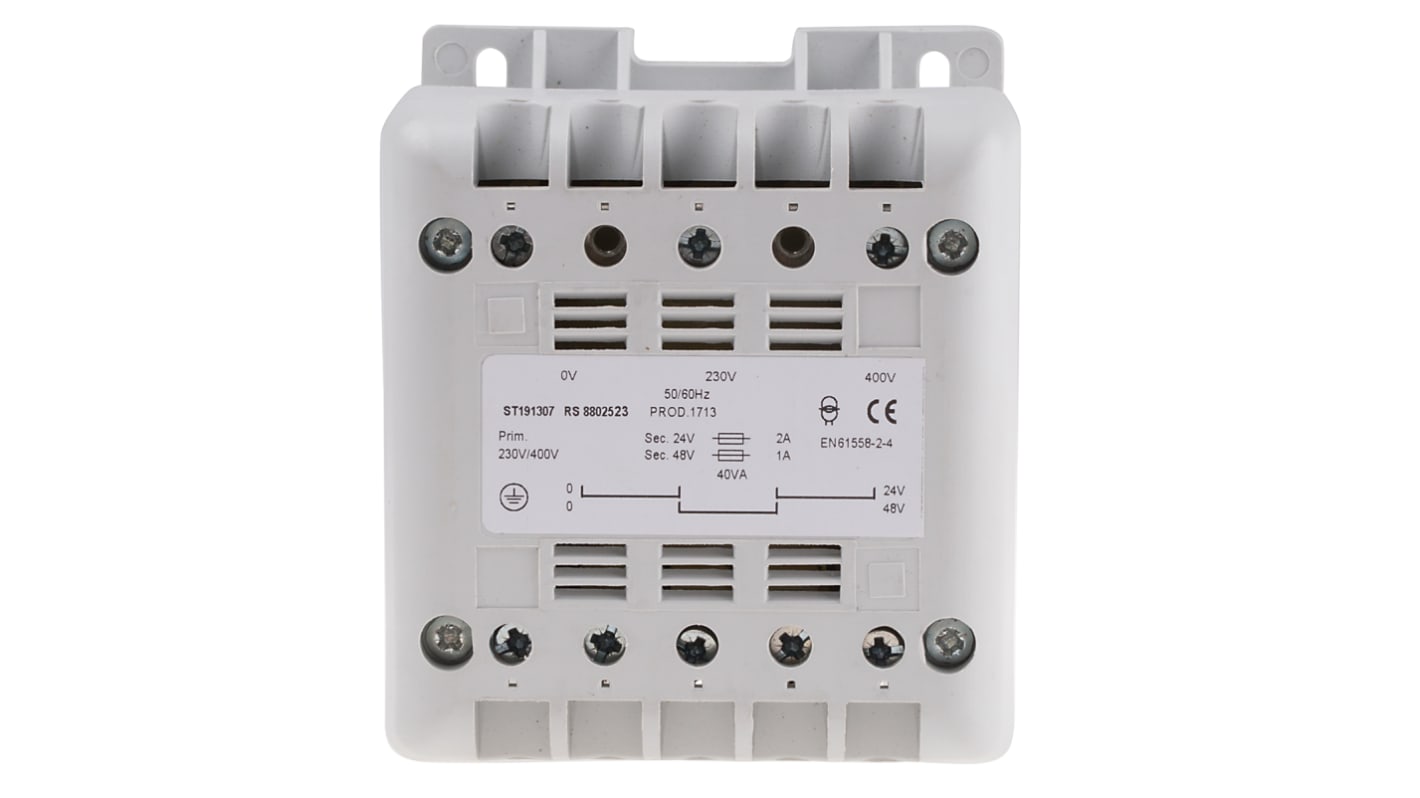

RS PRO 40 VA DIN Rail Transformer, 400 V ac Primary, 24 V ac Secondary, IEC 61558-2-6
- RS庫存編號:
- 880-2523
- Distrelec 貨號:
- 304-05-072
- 製造商:
- RS PRO
可享批量折扣
查看批量定價選項小計（1 件）*
HK$633.70
訂單超過 HK$250.00 免費送貨
暫時缺貨
- 48 件從 2026年11月06日 起裝運發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 9 | HK$633.70 |
| 10 - 49 | HK$608.30 |
| 50 + | HK$500.70 |
* 參考價格
Sponsored
- RS庫存編號:
- 880-2523
- Distrelec 貨號:
- 304-05-072
- 製造商:
- RS PRO
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | RS PRO | |
| Product Type | DIN Rail Transformer | |
| Primary Voltage | 400 V ac | |
| Secondary Voltage | 24 V ac | |
| Mount Type | DIN Rail | |
| Length | 106mm | |
| Power | 40VA | |
| Width | 90mm | |
| Depth | 87mm | |
| Minimum Operating Frequency | 50Hz | |
| Maximum Operating Frequency | 60Hz | |
| Weight | 1.4kg | |
| Standards/Approvals | IEC 61558-2-6 | |
| Maximum Operating Temperature | 130°C | |
| 選取全部 | ||
|---|---|---|
品牌 RS PRO | ||
Product Type DIN Rail Transformer | ||
Primary Voltage 400 V ac | ||
Secondary Voltage 24 V ac | ||
Mount Type DIN Rail | ||
Length 106mm | ||
Power 40VA | ||
Width 90mm | ||
Depth 87mm | ||
Minimum Operating Frequency 50Hz | ||
Maximum Operating Frequency 60Hz | ||
Weight 1.4kg | ||
Standards/Approvals IEC 61558-2-6 | ||
Maximum Operating Temperature 130°C | ||
- COO (Country of Origin):
- PL
RS PRO 40 VA Control Panel Transformer, 400 V AC Primary, 24 V AC Secondary
Use this control panel transformer from RS PRO to regulate voltage during short periods of inrush current or 'overload conditions'. The transformer provides enough secondary voltage stability to control overload conditions safely and efficiently in potentially hazardous working environments.
This compact transformer has a low weight of 1.4 kg. It's designed for DIN rail mounting (DIN stands for 'Deutsche Institut für Normung', or the German Institute for Standardisation). Voltage-rated at 400 V AC (primary), it has a secondary voltage rating of 24 V AC. The IP21 rating means it's protected against condensation and penetration from objects over 12 mm.
As part of our quality RS PRO series, this product has been exhaustively tested by engineers so you can be assured of its safety and reliability. It's typically found in a wide range of industrial environments such as building sites, workshops and factories.
Features and Benefits
• Control panel transformer
• Primary voltage rating of 400 V AC
• Secondary voltage rating of 24 V AC
• Power rating of 40 VA
• Mounted by DIN rail
• Dimensions of 106 mm (L) x 90 mm (W) x 87 mm (D)
• Minimum operating frequency of 50 Hz
• Maximum operating frequency of 60 Hz
• Maximum temperature of +130°C
• Weight of 1.4 kg
• IP21 rated for protection against condensation, objects over 12 mm
• Meets standard EN 61558-1 for safe power transformers and power supplies
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
