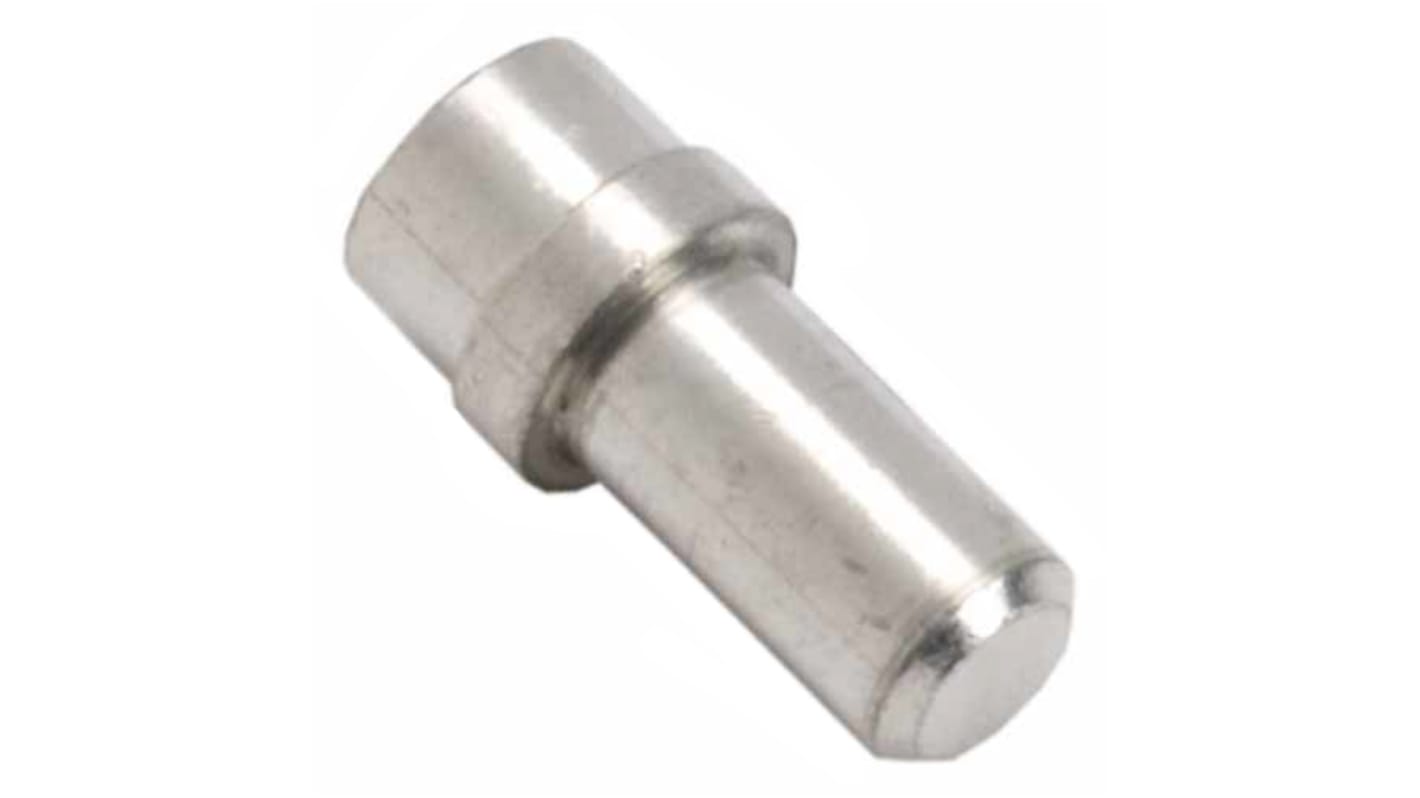

HARWIN, H3182 PCB Socket, Rated At 10A
- RS庫存編號:
- 161-3690
- 製造零件編號:
- H3182-01
- 製造商:
- HARWIN
- RS庫存編號:
- 161-3690
- 製造零件編號:
- H3182-01
- 製造商:
- HARWIN
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- GB
產品詳細資訊
PC Board Socket for mating Ø1.00mm Pin - Gold clip, Tin shell.
Uses 4-finger Beryllium Copper contact clip - Vibration 10-2,000Hz, 10G, 6 hours.
Uses 4-finger Beryllium Copper contact clip - Vibration 10-2,000Hz, 10G, 6 hours.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
規格
Attribute | Value |
|---|---|
| Gender | Female |
| Series | H3182 |
| Length | 5.65mm |
| Number of Rows | 1 |
| Body Orientation | Straight |
| Contact Material | Beryllium Copper |
| Contact Plating | Gold, Gold over Nickel |
| Current Rating | 10A |
| Termination Method | Pin, Solder |
| Housing Material | Brass |
| Number of Contacts | 1 |
