Matrix EB084, E-block gLCD 1.8in Colour LCD Display Module

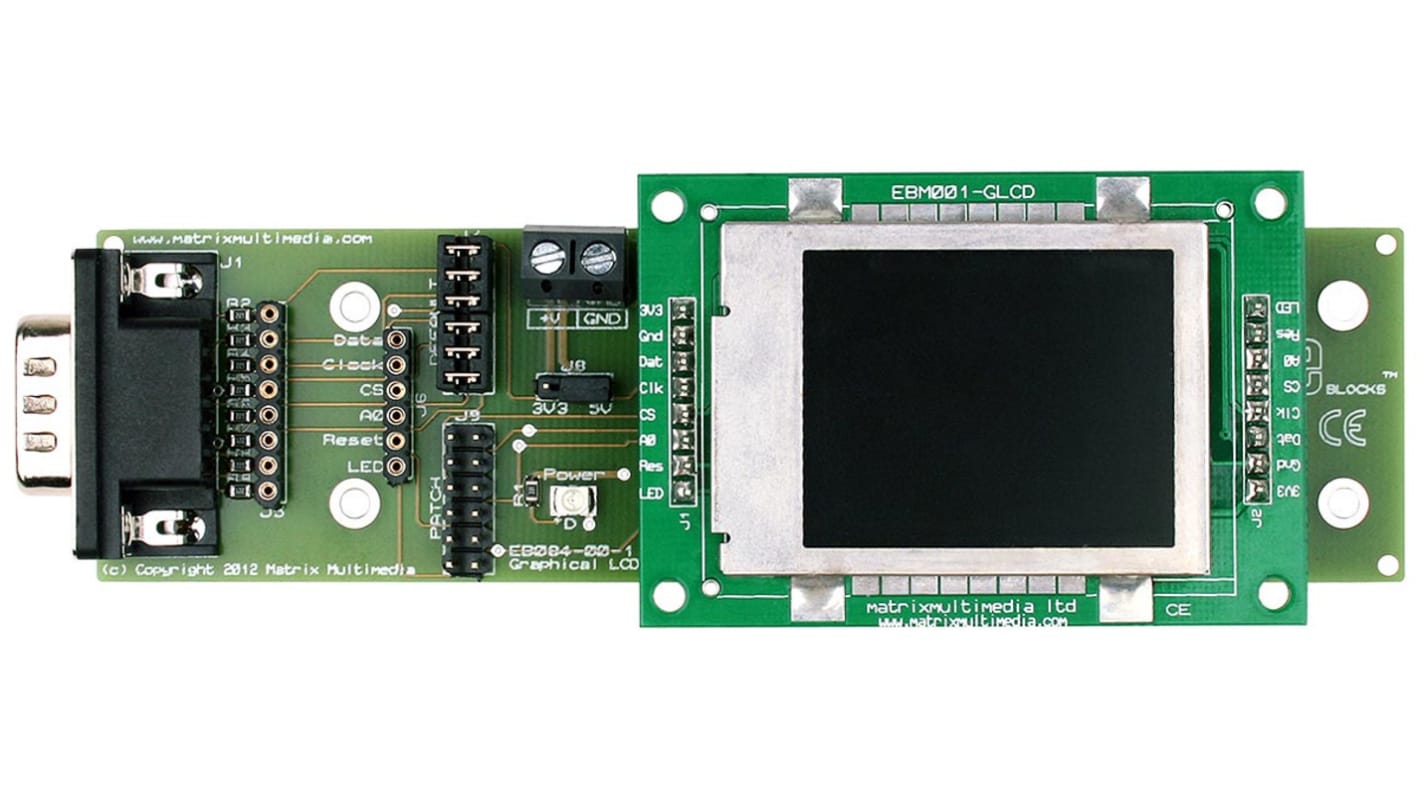

The EB084 board contains a TFT LCD graphics display that you can integrate into your e-blocks designs using the 9-way D-type e-block connector.

Features & Benefits of the ED084 gLCD Board
•Protective metal shield for the gLCD
•On-board patch system
•Jumper links to connect to PICmicro microcontrollers
•128 by160 pixels
•65,536 colours for each pixel
•3 or more programmable font sizes
•Up to 16 lines of text
•Up to 21 characters per line of text
•Clear, non-flicker display
•Controllable backlight for optimum display visibility
•Automatically refreshes
•SIL mirrored pin connections
•Overvoltage protection
•Suitable for 3.3 V and 5 V power supply

E-blocks Boards

E-blocks from Matrix Technology are small circuit boards with a block of electronics that are typically found in an electronic or embedded system. They be quickly snapped together to form a fully functioning systems and this ease of use makes them ideal for rapid prototyping.

Currently there are more than 50 E-Block boards available. From simple LED boards to sensors, Bluetooth, Motor Control, RFID, LCD Display, WiFi, GPS and many more. Whether you are PIC or Arduino programming or working with other hardware platforms there is sure to be something to suit your needs.

E-blocks are supported with software and courseware (including PIC, dsPIC, ARM and AVR Arduino IDE, Flowcode).
