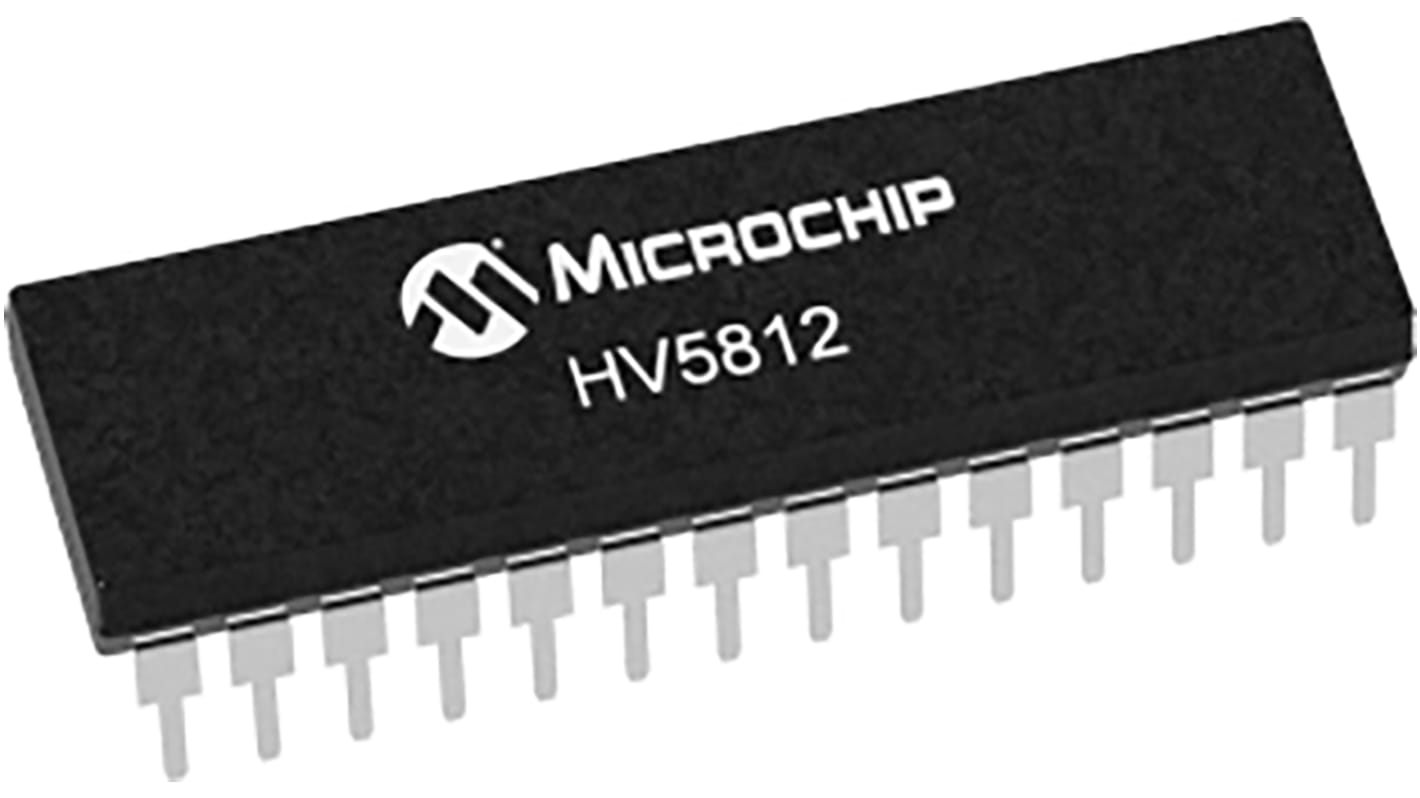

Microchip Technology HV5812PJ-G Display Driver

  • RS庫存編號 177-1912
  • 製造零件編號 HV5812PJ-G
  • 製造商 Microchip
產品概覽和技術數據資料表
法例與合規
相容
COO (Country of Origin): US
產品詳細資訊

HV5812 is a 20-channel, serial input, vacuum-fluorescent display driver. It combines a 20-bit CMOS shift register, data latches, and control circuitry with high voltage MOSFET outputs. The HV5812 is primarily designed for vacuum-fluorescent displays. The CMOS shift register and latches allow direct interfacing with microprocessor based systems. Data input rates are typically over 5.0MHz with 5.0V logic supply. Especially useful for interdigit blanking, the BLANKING input disables the output source drives and turns on the sink drivers. Use with TTL may require external pull-up resistors to ensure an input logic high.

Additional Features:
HVCMOS® technology for high performance
Operating voltage up to 80V
High speed source driver
5.0V CMOS logic circuitry
Up to 5.0MHz data input rate
Excellent noise immunity
Flexible high voltage supplies

規格
Attribute Value
Package Type PLCC
Number of Pins 28
Supply Voltage 4.5 → 5.5 V
Current Rating 3.5mA
Power Dissipation 1900mW
Series HV5812
160 現貨庫存,可於3工作日發貨。
單價 /個 (每包:5個)
HK$ 20.71
(不含稅)
單位
Per unit
Per Pack*
5 - 5
HK$20.71
HK$103.55
10 - 15
HK$19.804
HK$99.02
20 +
HK$18.786
HK$93.93
* 參考價格
包裝方式:
