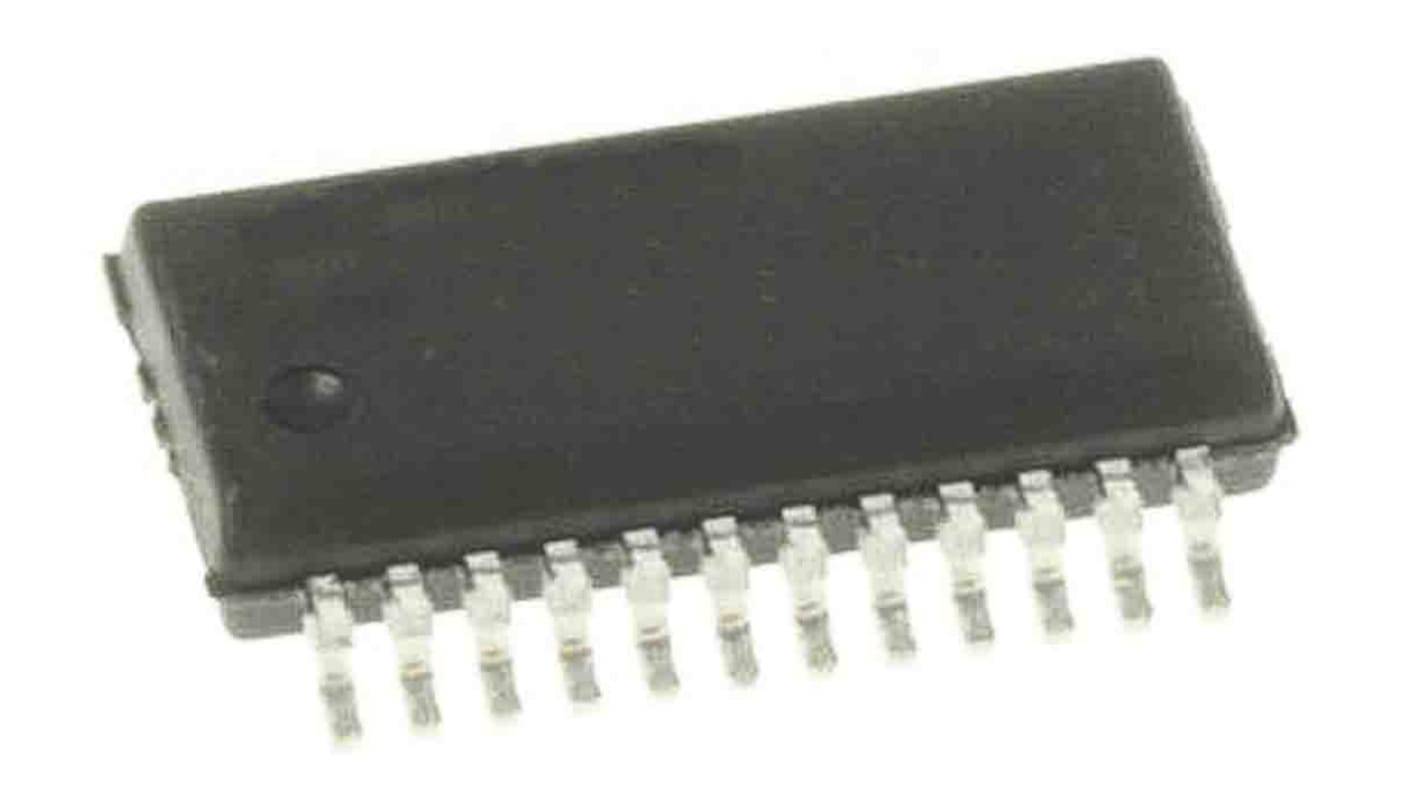

STMicroelectronics STP16CPC26PTR QSOP Display Driver, 24 Pin, 3 → 5.5 V
- RS庫存編號:
- 188-9267
- 製造零件編號:
- STP16CPC26PTR
- 製造商:
- STMicroelectronics
查看所有Display Drivers
7440 現貨庫存,可於3工作日發貨。
單價 /個 (每包:10個)
原價 HK$11.104
您付款
HK$8.94
單位 | Per unit | Per Pack* |
10 - 620 | HK$8.94 | HK$89.40 |
630 - 1240 | HK$8.744 | HK$87.44 |
1250 + | HK$8.557 | HK$85.57 |
* 參考價格 |
包裝方式:
- RS庫存編號:
- 188-9267
- 製造零件編號:
- STP16CPC26PTR
- 製造商:
- STMicroelectronics
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
The STP16CPC26 is a monolithic, low voltage, 16-bit constant current LED sink driver. The device contains a 16-bit shift register and data latches, which convert serial input data into parallel output format. In the output stage sixteen regulated current generators provide 5 mA to 90 mA constant current to drive LEDs. The current is externally adjusted through a resistor. LED brightness can be adjusted from 0% to 100% via OE pin.
The STP16CPC26 guarantees a 20 V driving capability, allowing users to connect more LEDs in series to each current source.
The high 30 MHz clock frequency makes the device suitable for high data rate transmission.
The thermal shutdown (170 °C with about 15 °C hysteresis) assures protection from overtemperature events.
The STP16CPC26 is housed in four different packages: QSOP24, SO-24, TSSOP-24 and HTSSOP-24 (with exposed pad).
The STP16CPC26 guarantees a 20 V driving capability, allowing users to connect more LEDs in series to each current source.
The high 30 MHz clock frequency makes the device suitable for high data rate transmission.
The thermal shutdown (170 °C with about 15 °C hysteresis) assures protection from overtemperature events.
The STP16CPC26 is housed in four different packages: QSOP24, SO-24, TSSOP-24 and HTSSOP-24 (with exposed pad).
16 constant current output channels
Adjustable output current through external resistor
Output current: 5 mA to 90 mA
±1% typical current accuracy bit to bit
Max clock frequency: 30 MHz
20 V current generators rated voltage
3 - 5.5 V power supply
Thermal shutdown for overtemperature protection
Applications
Video display panel LED driver
Special lighting
Adjustable output current through external resistor
Output current: 5 mA to 90 mA
±1% typical current accuracy bit to bit
Max clock frequency: 30 MHz
20 V current generators rated voltage
3 - 5.5 V power supply
Thermal shutdown for overtemperature protection
Applications
Video display panel LED driver
Special lighting
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
規格
Attribute | Value |
Package Type | QSOP |
Display Type | LED |
Number of Pins | 24 |
Supply Voltage | 3 → 5.5 V |
Maximum Supply Current | (Off) 13.5 mA, (On) 15mA |
Minimum Operating Temperature | -40°C |
Mounting Type | Surface Mount |
Maximum Operating Temperature | +150°C |
Width | 6.2mm |
Height | 1.48mm |
Length | 8.76mm |
