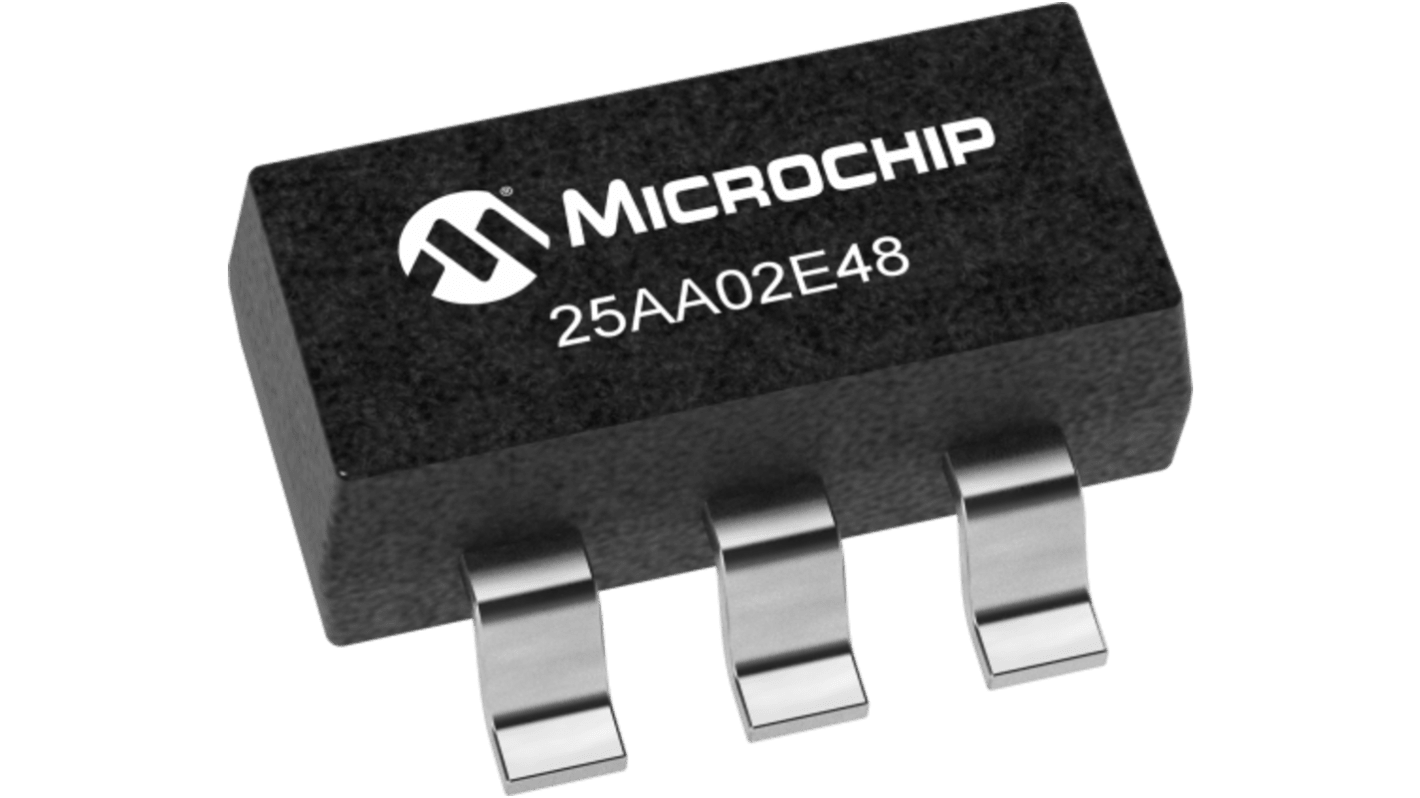

Microchip 25AA02E48T-I/SN, 64bit EEPROM Chip, 250ns 6-Pin SOT Serial

The Microchip 2 Kbit Serial Electrically Erasable Programmable Read Only Memory. The memory is accessed via a simple Serial Peripheral Interface (SPI) compatible serial bus. The bus signals required are a clock input (SCK) plus separate data in (SI) and data out (SO) lines. Access to the device is controlled through a Chip Select (CS) input. Communication to the device can be paused via the hold pin. While the device is paused, transitions on its inputs will be ignored, with the exception of Chip Select, allowing the host to service higher priority interrupts.

10 MHz max. clock frequency
Write page mode up to 16 bytes
Sequential read
Self timed erase and write cycles
