Microchip 24FC02T-I/MUY, 2 kB EEPROM, 3500 ns 8-Pin UDFN Serial-2 Wire

RS庫存編號:: 188-0123
製造零件編號:: 24FC02T-I/MUY
製造商:: Microchip

Microchip 24FC02T-I/MUY, 2 kB EEPROM, 3500 ns 8-Pin UDFN Serial-2 Wire

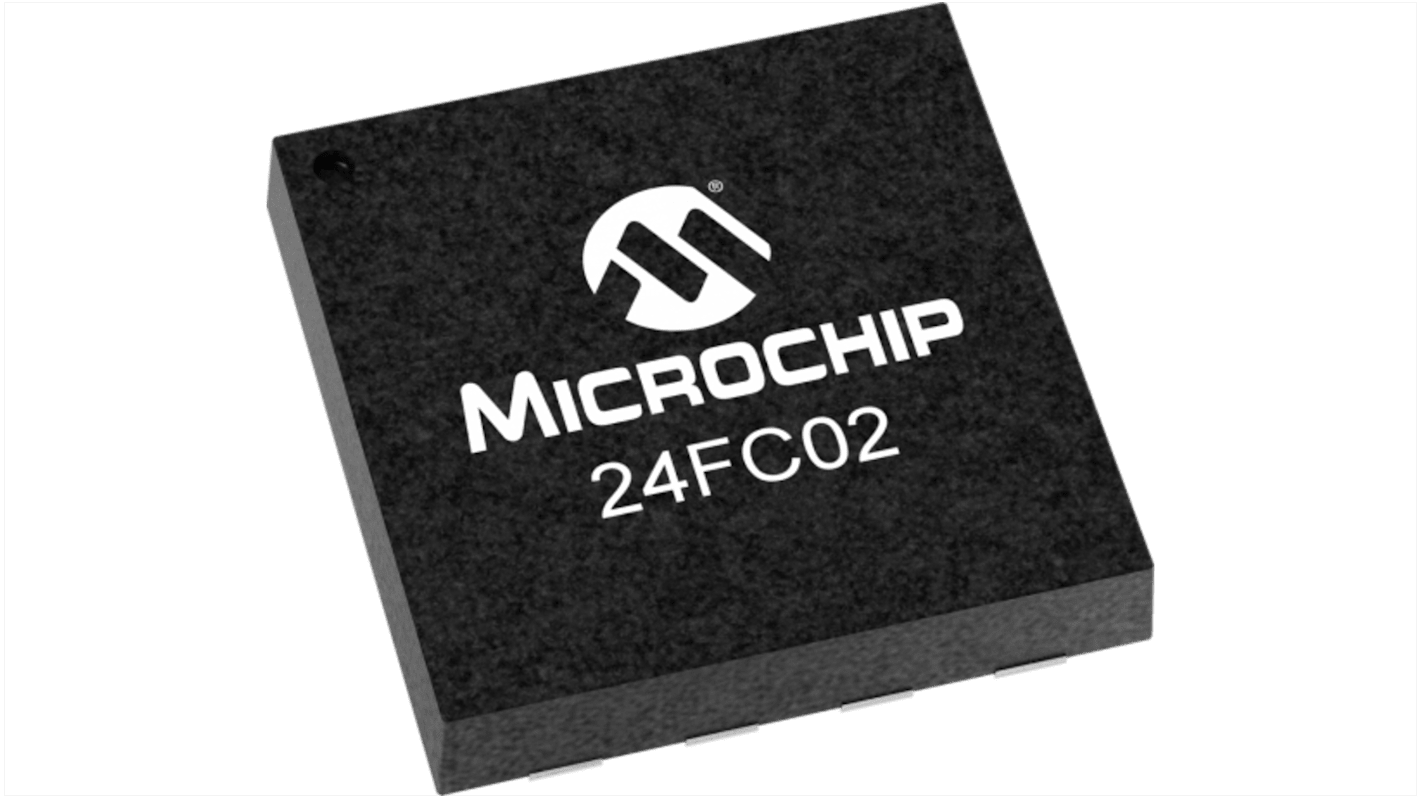

此圖片僅供參考，請參閲產品詳細資訊及規格

小計（1 包，共 50 件）*

HK$87.70

訂單超過 HK$250.00 免費送貨

最後的 RS 庫存

最終 200 個，準備發貨

單位	每單位	每包*
50 +	HK$1.754	HK$87.70

* 參考價格

RS庫存編號:: 188-0123
製造零件編號:: 24FC02T-I/MUY
製造商:: Microchip

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Microchip
	Memory Size	2kB
	Product Type	EEPROM
	Interface Type	Serial-2 Wire
	Package Type	UDFN
	Mount Type	Surface
	Pin Count	8
	Maximum Clock Frequency	1MHz
	Organisation	256 x 8 bit
	Minimum Supply Voltage	1.7V
	Number of Bits per Word	8
	Maximum Supply Voltage	5.5V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Height	0.6mm
	Length	2mm
	Standards/Approvals	No
	Width	3 mm
	Series	24FC02
	Number of Words	256
	Automotive Standard	AEC-Q100
	Data Retention	200year
	Maximum Random Access Time	3500ns
	Supply Current	1mA

	選取全部
	品牌 Microchip
	Memory Size 2kB
	Product Type EEPROM
	Interface Type Serial-2 Wire
	Package Type UDFN
	Mount Type Surface
	Pin Count 8
	Maximum Clock Frequency 1MHz
	Organisation 256 x 8 bit
	Minimum Supply Voltage 1.7V
	Number of Bits per Word 8
	Maximum Supply Voltage 5.5V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Height 0.6mm
	Length 2mm
	Standards/Approvals No
	Width 3 mm
	Series 24FC02
	Number of Words 256
	Automotive Standard AEC-Q100
	Data Retention 200year
	Maximum Random Access Time 3500ns
	Supply Current 1mA

Single supply with operation down to 1.7V

Low-power CMOS technology - Read current 1 mA max, Standby current 1 mA max (I-temp.)

2-wire serial interface, I2C™ Compatible

100 KHz, 400 KHz, and 1 MHz compatibility

Schmitt Trigger inputs for noise suppression

Output slope control to eliminate ground bounce

Self-Timed Erase and Write Cycles (5 ms max)

Hardware Write-Protect Pin

More than 1 million erase/write cycles

Data retention > 200 years

Extended temperature ranges available

Factory Programming Available

Microchip 24FC02T-I/MUY, 2 kB EEPROM, 3500 ns 8-Pin UDFN Serial-2 Wire
