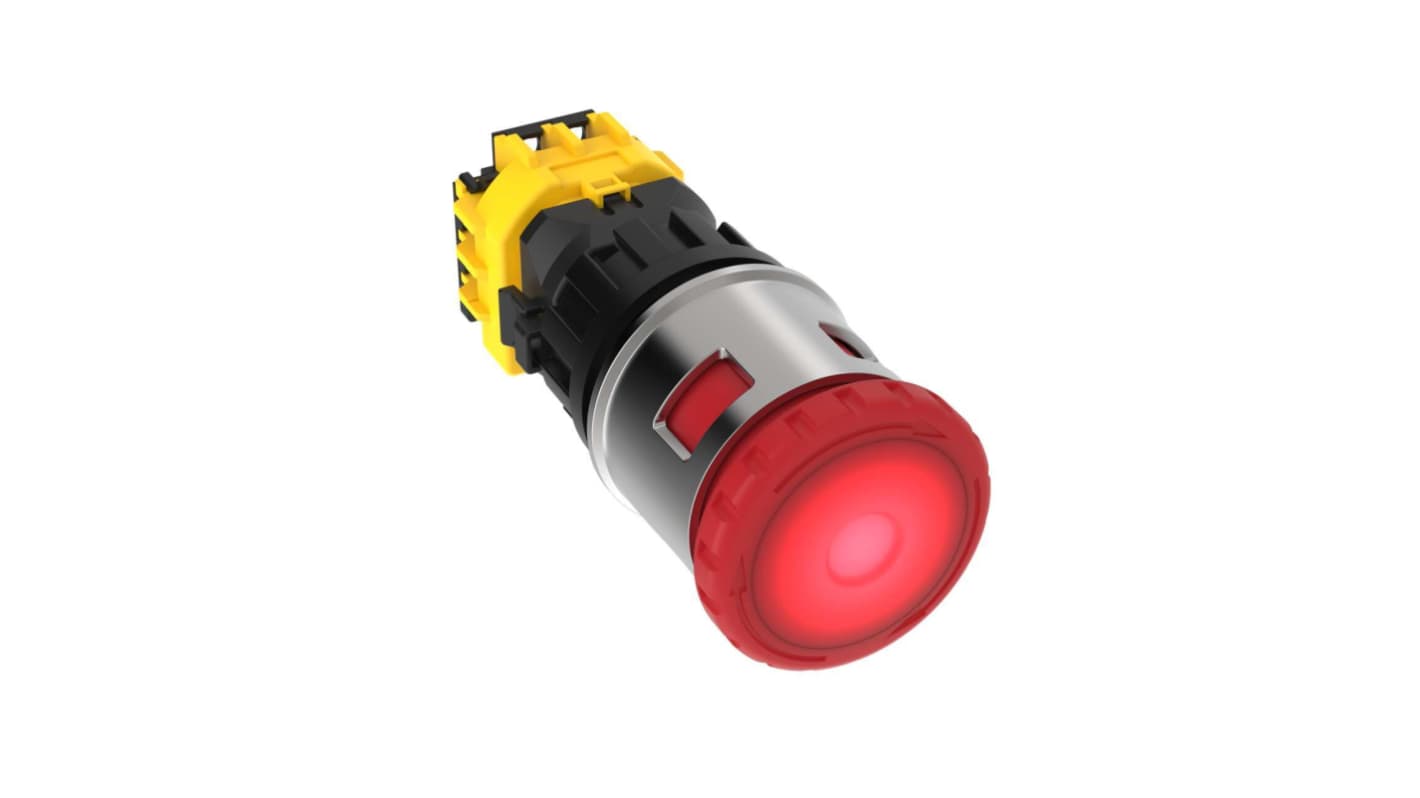

Banner SSA-EB Series Push to Shut Off, Turn Release Illuminated Emergency Stop Push Button, Panel Mount, 30mm Cutout, 3

查看所有Emergency Stop Push Buttons

小計（1 件）*

HK$1,288.94

Add to Basket
選擇或輸入數量
庫存資訊目前無法查詢
單位
每單位
1 +HK$1,288.94

* 參考價格

RS庫存編號:
295-121
製造零件編號:
SSA-EB1ML1P-13
製造商:
Banner
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Banner

Mounting Type

Panel Mount

Cutout Diameter

30mm

Contact Configuration

3 NC And 1 NO

Push Button Actuation

Push to Shut Off, Turn Release

Voltage Rating

24V dc

Illuminated

Yes

Series

SSA-EB

IP Rating

IP65

COO (Country of Origin):
JP
The Banner Electro Mechanical Push Button features push to stop switches. It comes with twist to release or pull to release operation. It comes with a latching design which complies with ISO 13850. When the button is armed, the switch's safety contacts (normally closed/NC) are closed and its monitoring contacts (normally open/NO), if present, are open. When the button is pushed, the switch's safety contacts open, and the monitoring contacts close. The contacts remain in this condition until they are manual rearmed.

Compliant with ANSI B11.19 and NFPA 79
Panel mount though 30 mm mounting hole
