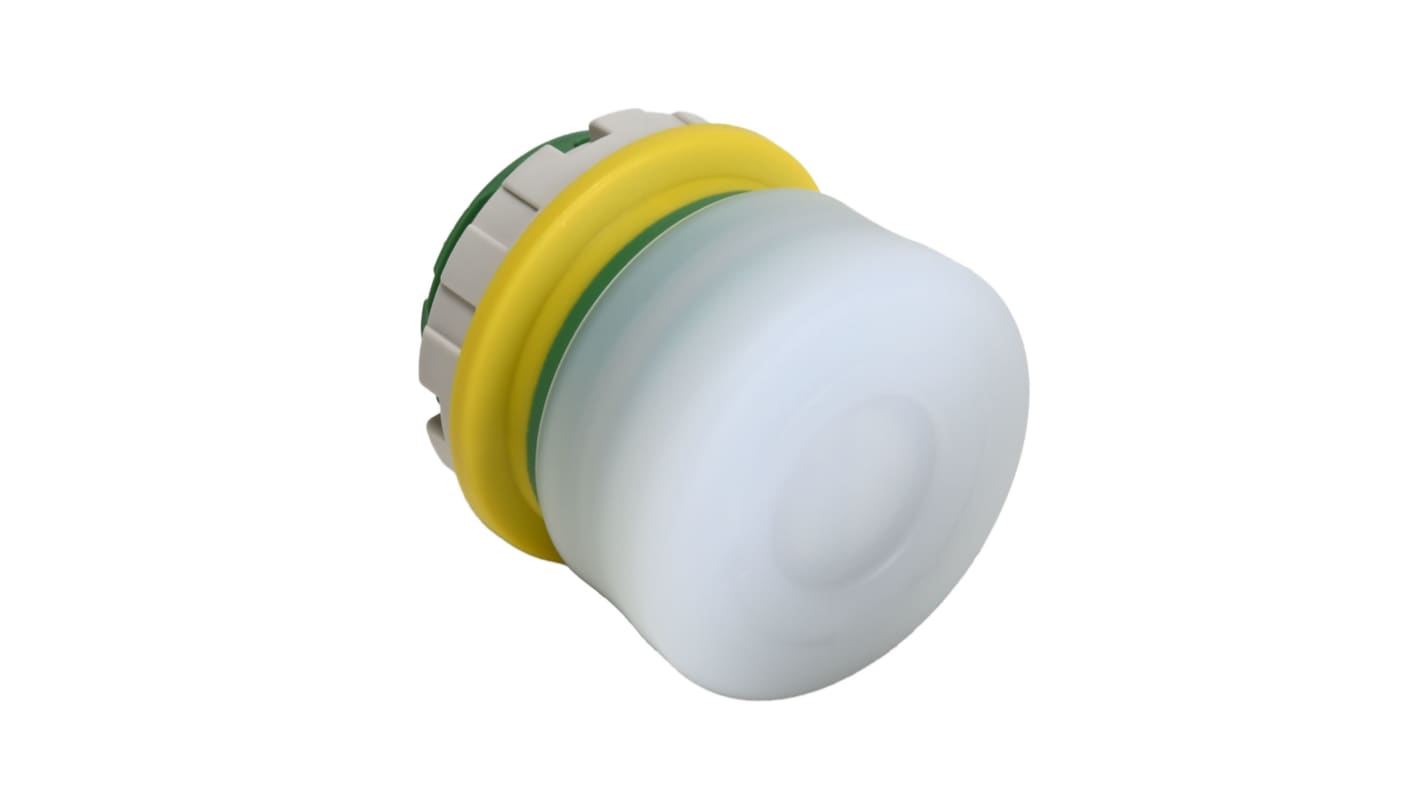

Idec XW1E Series Push Lock Turn Reset Emergency Stop Push Button, Panel Mount, 22mm Cutout, DPST, IP65, IP67, IP69K

The Idec 22mm Estop is a short body illuminated emergency stop with 2NC contact and a 12.6mm panel depth solder terminal. It features a new illumination method required by ISO13850:2015, displaying white color when inactive and red color when active. It offers protection degrees IP65, IP67 (IEC60529), and IP69K (ISO20653).

Mechanical Life 250,000 times min
Compact unibody structure with 3-terminal configuration suitable for a wide range of applications in limited space
One contact (blue) can be used as a lamp terminal or as a NO contact for monitoring
Status indicator and escape structure
UL type 4X certified making them the ideal E-stops for use in wet, windy, and snowy environments
Safer E-stop with reverse energy structure
