規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	SICK
	Mounting Type	Surface Mount
	Cutout Diameter	22mm
	Contact Configuration	2NC/1NO
	Voltage Rating	24 V ac/dc, 250 V ac/dc
	Push Button Actuation	Turn Release
	Series	ES21
	Illuminated	No
	IP Rating	IP65
	Colour	Black, Red, Yellow
	Push Button Shape	Square
	Supply Current	3A
	Depth	31.5mm
	Push Button Material	Plastic
	Height	103mm
	Switch Operation	Slow Action

	選取全部
	品牌 SICK
	Mounting Type Surface Mount
	Cutout Diameter 22mm
	Contact Configuration 2NC/1NO
	Voltage Rating 24 V ac/dc, 250 V ac/dc
	Push Button Actuation Turn Release
	Series ES21
	Illuminated No
	IP Rating IP65
	Colour Black, Red, Yellow
	Push Button Shape Square
	Supply Current 3A
	Depth 31.5mm
	Push Button Material Plastic
	Height 103mm
	Switch Operation Slow Action

Datasheet - ES21-SA14F1

COO (Country of Origin):: DE

Overview

The ES21 emergency stop pushbuttons are a must for automated machines and systems. They provide a means for a person to stop a machine or system in the event of an emergency.

Depending on the variant, the emergency stop pushbuttons are either integrated into a machine operator panel or mounted directly on the machine.

At a glance

Optionally available as a built-in version or as a surface-mounted version with housing
Built-in version with self-monitoring emergency stop contacts
Status display with coloured mark or LED ring illumination
Variants with protective collar
Variants with

Your Benefit

A wide range of variants for custom-fit integration into your machine
High level of safety thanks to self-monitoring: It switches off the machine in the event of faulty installation or mechanical damage
Quick and user-friendly reading of the device status

Applications

Safe stop function for machinery and systems

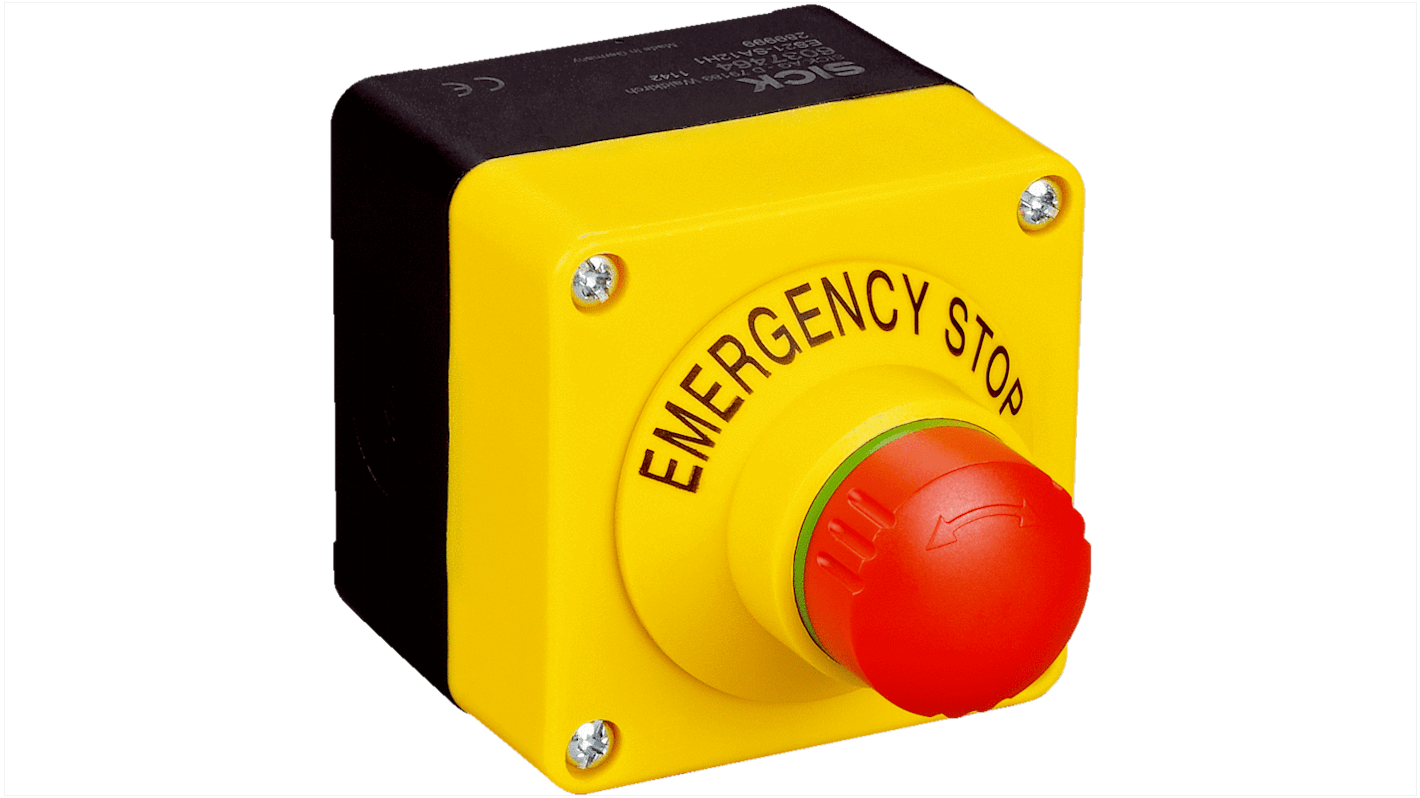

SICK ES21 Series Turn Release Emergency Stop Push Button, Surface Mount, 22mm Cutout, 2NC/1NO, IP65
