XB5AS9445 | Schneider Electric Harmony XB5 Series Key Release Emergency Stop Push Button, Panel Mount, 22mm Cutout, SPDT | RS

Better World

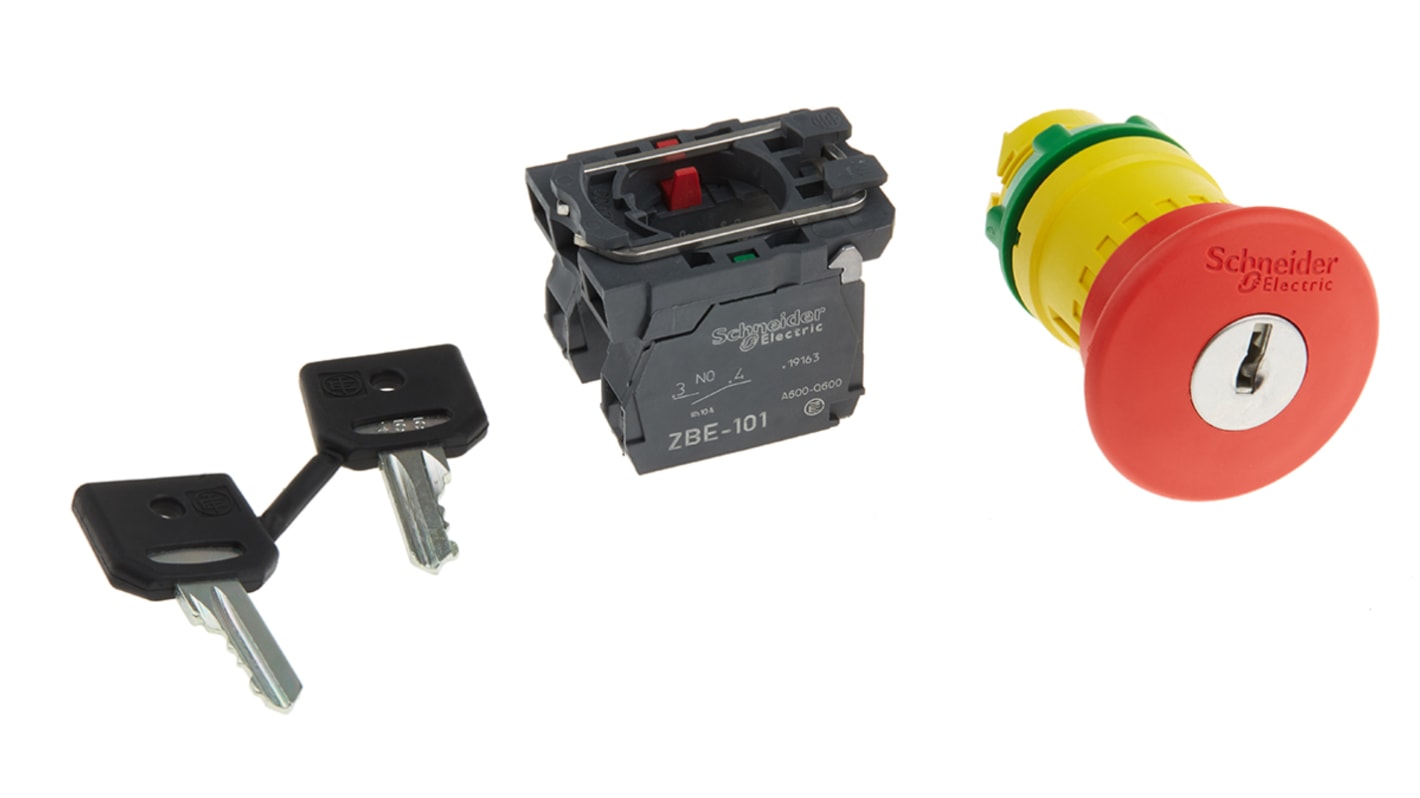

Schneider Electric Harmony XB5 Series Key Release Emergency Stop Push Button, Panel Mount, 22mm Cutout, SPDT

RS庫存編號:: 609-6170
Distrelec 貨號:: 303-02-560
製造零件編號:: XB5AS9445
製造商:: Schneider Electric

Schneider Electric Harmony XB5 Series Key Release Emergency Stop Push Button, Panel Mount, 22mm Cutout, SPDT

Price 个**

HK$492.10

78 現貨庫存，可於3工作日發貨。*

* 交貨日期可能會根據您選擇的數量和交貨地址而變更。

訂單金額滿 HK$250.00 即可享受免費送貨服務

即時庫存查詢

單位	每單位
1 +	HK$492.10

** 參考價格

Better World

我們的 Better World 產品系列可讓您輕鬆選擇值得信賴的環保產品。點擊此處了解更多。

RS庫存編號:: 609-6170
Distrelec 貨號:: 303-02-560
製造零件編號:: XB5AS9445
製造商:: Schneider Electric

Schneider Electric Emergency Stop Push Buttons - Harmony XB5 Series

Introducing the Harmony XB5 series of E-Stop Push Buttons. The range comprises of spring return emergency "E-stop" mushroom head push buttons with snap-action locking. The XB5 series is to the highest industry standard, conforming to IEC, UL, CSA standards and more.

Features.

1 NO + 1 NC contact configuration

Turn-to-release reset functionality, easily operated by different levels of expertise

Red "mushroom" styled head, prominent in most environments to signal the safety cut off point for machines

Compact in nature, perfect for environments that require space, easy for mounting

Mechanical durability of approximately 300,000 cycles provides you with the reassurance of emergency cut off when required

Conforms to the following standards & protection degrees:

- High protection ratings include: IP67, IP66, IP69K & IP69 (perfect for environments with dust, water or chemical interference).

- NEMA 13, 4X (providing further protection in tough environments with a lot of dust, water or chemical interference)

- Over-voltage category Class 2, conforming to IEC 60536

- Highly versatile in extreme temperatures, operating at -40 to 70°C

Vibration & shock resistance as standard, tough and durable outer body material with tough plastics on both the bezel and fixing collar means you can rely on this push button switch in difficult scenarios that require immediate stop without interruption

Short circuit protection via a 10 A cartridge fuse

Schneider Green Premium product as standard across the XB6 Emergency Stop Button range

18-month manufacturer warranty with Schneider

Applications

Machine, chemical & Marine applications (particularly with water/chemical involvement)

Service sectors such as restaurants, kitchens, car washes and more

XB5AS9445 Harmony XB5 Schneider Electric Emergency Stop Push Button.

Emergency stop, emergency switching off push button.

Harmony XB5.

Bezel – Plastic, dark grey.

Plastic fixing collar.

Mounting diameter 22 mm.

Round shape, standard, red mushroom 40 mm diameter (unmarked).

Release reset, Key release.

Operator – Trigger action and mechanical latching.

1 NO plus 1 NC Contact, slow break.

Screw clamp terminal connection.

300000 Durability cycles.

Silver alloy (Ag/Ni) contacts.

Vibration and shock resistant.

Weight 0.112 kg.

Screw Head Shape.

Cross compatible with Philips no 1 screwdriver, Cross compatible with pozidriv No 1 screwdriver, Slotted compatible with flat 4 mm screwdriver, Slotted compatible with flat 5.5 mm screwdriver.

Protection.

IP 66 to IEC 60529, IP 67, IP 69, IP 69K, NEMA 13, NEMA 4X, IK 03 to IEC 50102.

Standards.

EN/IEC 60204-1, JIS C8201-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-1, CSA C22.2 No 14, UL 508, IEC 60364-5-53, EN/ISO 13850, EN/IEC 60947-5-5, EN/IEC 60947-1, JIS C8201-1.

Certification.

CSA, LROS (Lloyds register of shipping,) DNV, RINA, BV, UL listed, GL.

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Schneider Electric
	Mounting Type	Panel Mount
	Cutout Diameter	22mm
	Better World Product	Yes
	Contact Configuration	SPDT
	Voltage Rating	600 V ac, 600V dc
	Push Button Actuation	Key Release
	Illuminated	No
	Series	Harmony XB5
	Colour	Red
	Depth	43mm
	Better World Verification	Green Premium
	Width	43mm
	Pole and Throw Configuration	DPST
	Push Button Material	Plastic

	選取全部
	品牌 Schneider Electric
	Mounting Type Panel Mount
	Cutout Diameter 22mm
	Better World Product Yes
	Contact Configuration SPDT
	Voltage Rating 600 V ac, 600V dc
	Push Button Actuation Key Release
	Illuminated No
	Series Harmony XB5
	Colour Red
	Depth 43mm
	Better World Verification Green Premium
	Width 43mm
	Pole and Throw Configuration DPST
	Push Button Material Plastic
