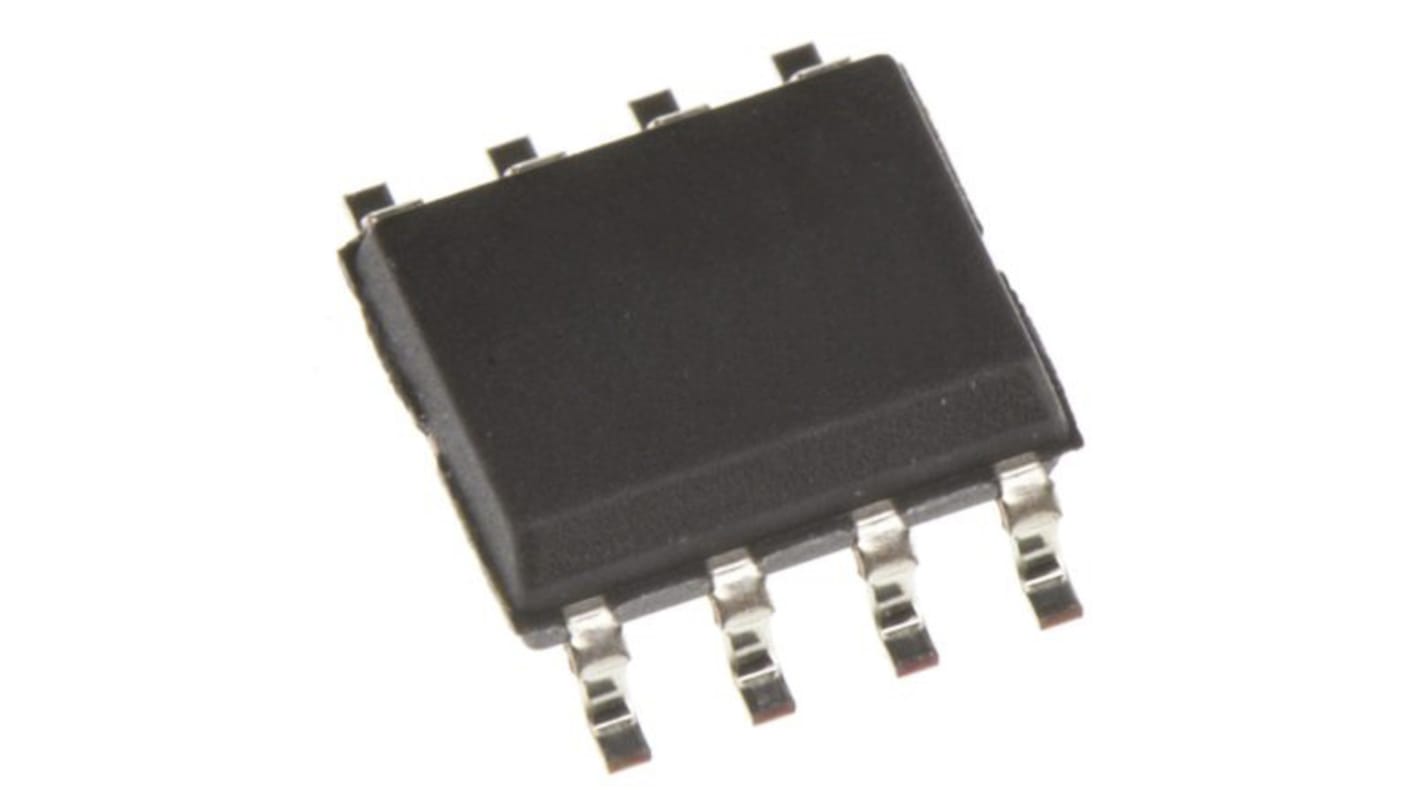

Winbond NOR 32Mbit SPI Flash Memory 8-Pin SOIC, W25Q32JVSSIQ/TUBE
- RS庫存編號:
- 171-2189
- 製造零件編號:
- W25Q32JVSSIQ/TUBE
- 製造商:
- Winbond
900 現貨庫存，可於3工作日發貨。
已增加
單價 毎管：90 个
HK$12.469
| 單位 | Per unit | Per Tube* |
| 90 - 90 | HK$12.469 | HK$1,122.21 |
| 180 - 270 | HK$12.157 | HK$1,094.13 |
| 360 + | HK$11.97 | HK$1,077.30 |
| * 參考價格 | ||
- RS庫存編號:
- 171-2189
- 製造零件編號:
- W25Q32JVSSIQ/TUBE
- 製造商:
- Winbond
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
32M-bit Serial Flash Memory with uniform 4KB sectors and Dual/Quad SPI
Single/Dual/Quad SPI operations
Uniform 4KB erasable sectors & 32KB/64KB erasable blocks
16,384 pages (256 bytes), page program in 0.7mS (typ.)
Continuous Read with 8/16/32/64 Byte Wrap
Clock operation up to 133MHz (266/532MHz equivalent with Dual/Quad SPI)
2.7 to 3.6V power supply
4mA active read current, <1μA power down current
-40° to +85°C operating range
Program/Erase Suspend/Resume, Suspend Status Bit
Factory-programmed unique ID
Electronic ID with Dual/Quad SPI, Hardware and software write protection for top or bottom blocks
Volatile & Non-volatile Status Register Bits
Lock-Down and OTP protection
Serial Flash Discoverable Parameters (SFDP)
3X256byte Security Registers with OTP locks
Complement Array Protection Bit
Individual Block/Sector Write Protection
Software Reset & Configurable hardware/RESET pin
Programmable output driver strength
Uniform 4KB erasable sectors & 32KB/64KB erasable blocks
16,384 pages (256 bytes), page program in 0.7mS (typ.)
Continuous Read with 8/16/32/64 Byte Wrap
Clock operation up to 133MHz (266/532MHz equivalent with Dual/Quad SPI)
2.7 to 3.6V power supply
4mA active read current, <1μA power down current
-40° to +85°C operating range
Program/Erase Suspend/Resume, Suspend Status Bit
Factory-programmed unique ID
Electronic ID with Dual/Quad SPI, Hardware and software write protection for top or bottom blocks
Volatile & Non-volatile Status Register Bits
Lock-Down and OTP protection
Serial Flash Discoverable Parameters (SFDP)
3X256byte Security Registers with OTP locks
Complement Array Protection Bit
Individual Block/Sector Write Protection
Software Reset & Configurable hardware/RESET pin
Programmable output driver strength
規格
Attribute | Value |
|---|---|
| Memory Size | 32Mbit |
| Interface Type | SPI |
| Package Type | SOIC |
| Pin Count | 8 |
| Organisation | 4M x 8 |
| Mounting Type | Surface Mount |
| Cell Type | NOR |
| Minimum Operating Supply Voltage | 2.7 V |
| Maximum Operating Supply Voltage | 3.6 V |
| Block Organisation | Symmetrical |
| Length | 5.38mm |
| Height | 1.91mm |
| Width | 5.38mm |
| Dimensions | 5.38 x 5.38 x 1.91mm |
| Minimum Operating Temperature | -40 °C |
| Number of Words | 4M |
| Number of Bits per Word | 8bit |
| Series | W25Q |
| Maximum Random Access Time | 6ns |
| Maximum Operating Temperature | +85 °C |
