- RS庫存編號:
- 756-4306
- 製造零件編號:
- MP1C-5
- 製造商:
- Sensata / Cynergy3
- RS庫存編號:
- 756-4306
- 製造零件編號:
- MP1C-5
- 製造商:
- Sensata / Cynergy3
法例與合規
- COO (Country of Origin):
- IT
產品詳細資訊

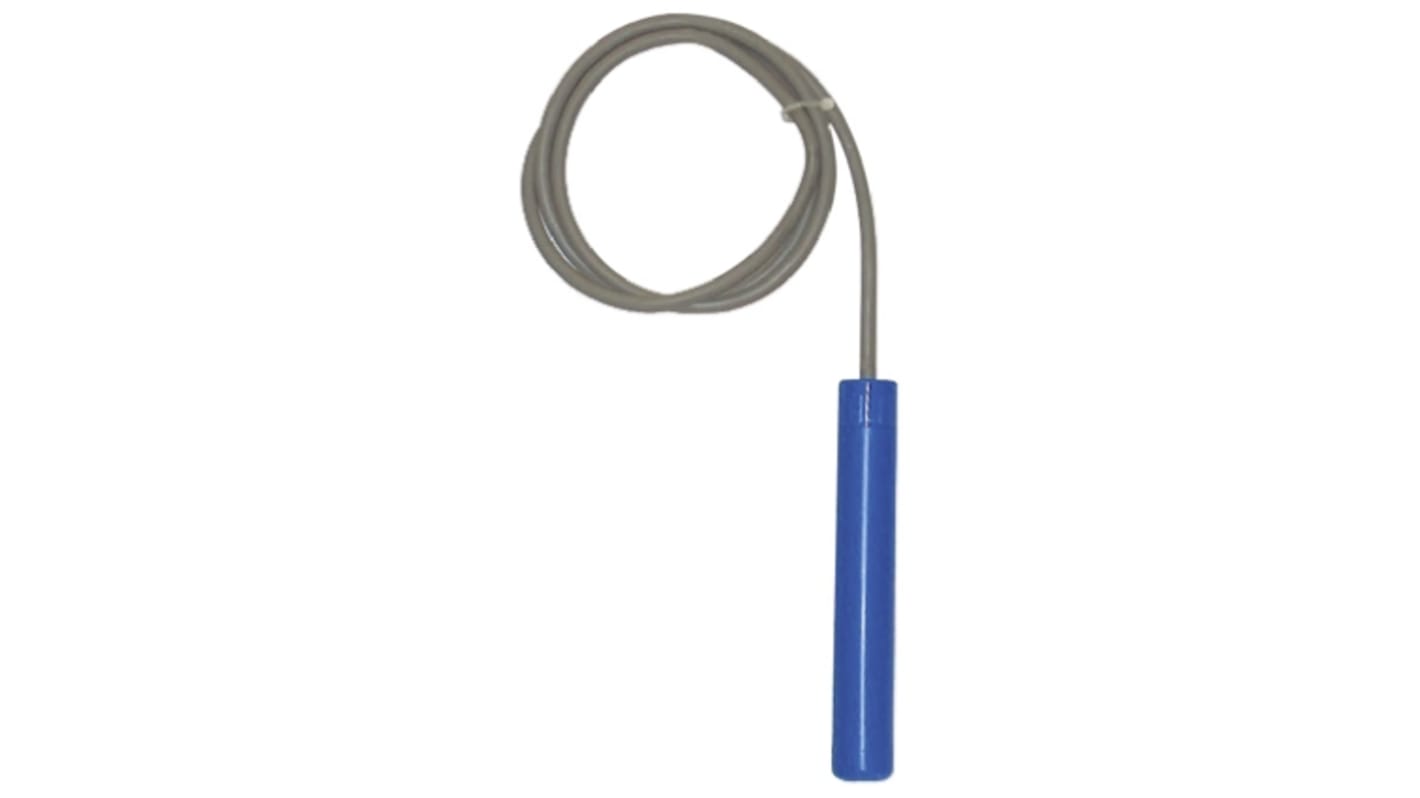

MP1C Series Float Switches
The MP1C series of float switches are designed to maintain the air cushion in autoclaves, the switches can be entered into the tank through a coupling due to its small diameter and mounted either horizontally or vertically.
For compressor receivers or pressurised tank
Supplied with gland and counterweight
Installation through G1" or G1"1/4
Contact form CO
Supplied with gland and counterweight
Installation through G1" or G1"1/4
Contact form CO
規格
Attribute | Value |
---|---|
Device Type | Float |
Mounting Type | Horizontal, Vertical |
Switch Output | NO/NC |
Body Material | PE |
Cable Length | 5m |
Minimum Operating Temperature | 0°C |
Maximum Operating Temperature | +55°C |
Maximum Current | 250 mA |
Maximum Pressure | 10bar |
