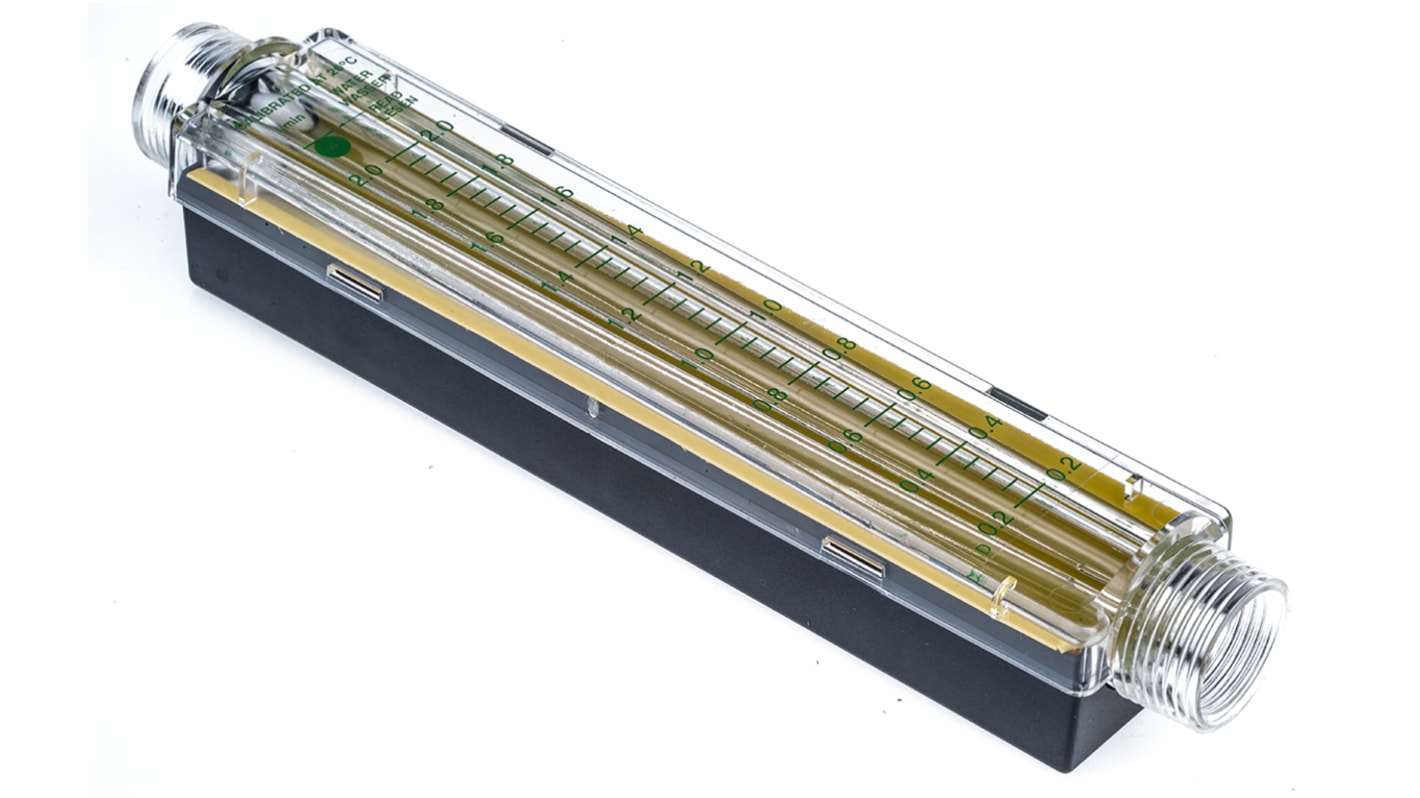

Parker S Series Variable Area Flow Meter for Liquid, 0.2 L/min Min, 2 L/min Max

The Parker S series variable area flowmeter measures a liquid flow rate of 0.2L/min to 2L/min. This variable flow indicators with a float inside an outer graduated flow scale on the viewing sleeve. It utilises the technique of differential pressure across a piston. As the flow increases, the piston moves against a calibrated spring.

Pipe diameter range is 3/4 in
Connection type is 3/4 BSP
Maximum operating pressure is 10bar
Maximum operating temperature is 60°C

It has accuracy ±2%
Repeatability ±1%
Operating pressure is 10bar
It be installed in a vertical plane for maximum accuracy

Water treatment
Cooling systems
Industrial washing systems
Irrigation
