- RS庫存編號:
- 198-0749
- 製造零件編號:
- SO.641 122 329
- 製造商:
- Parker
此產品已停售
- RS庫存編號:
- 198-0749
- 製造零件編號:
- SO.641 122 329
- 製造商:
- Parker
法例與合規
不適用
產品詳細資訊

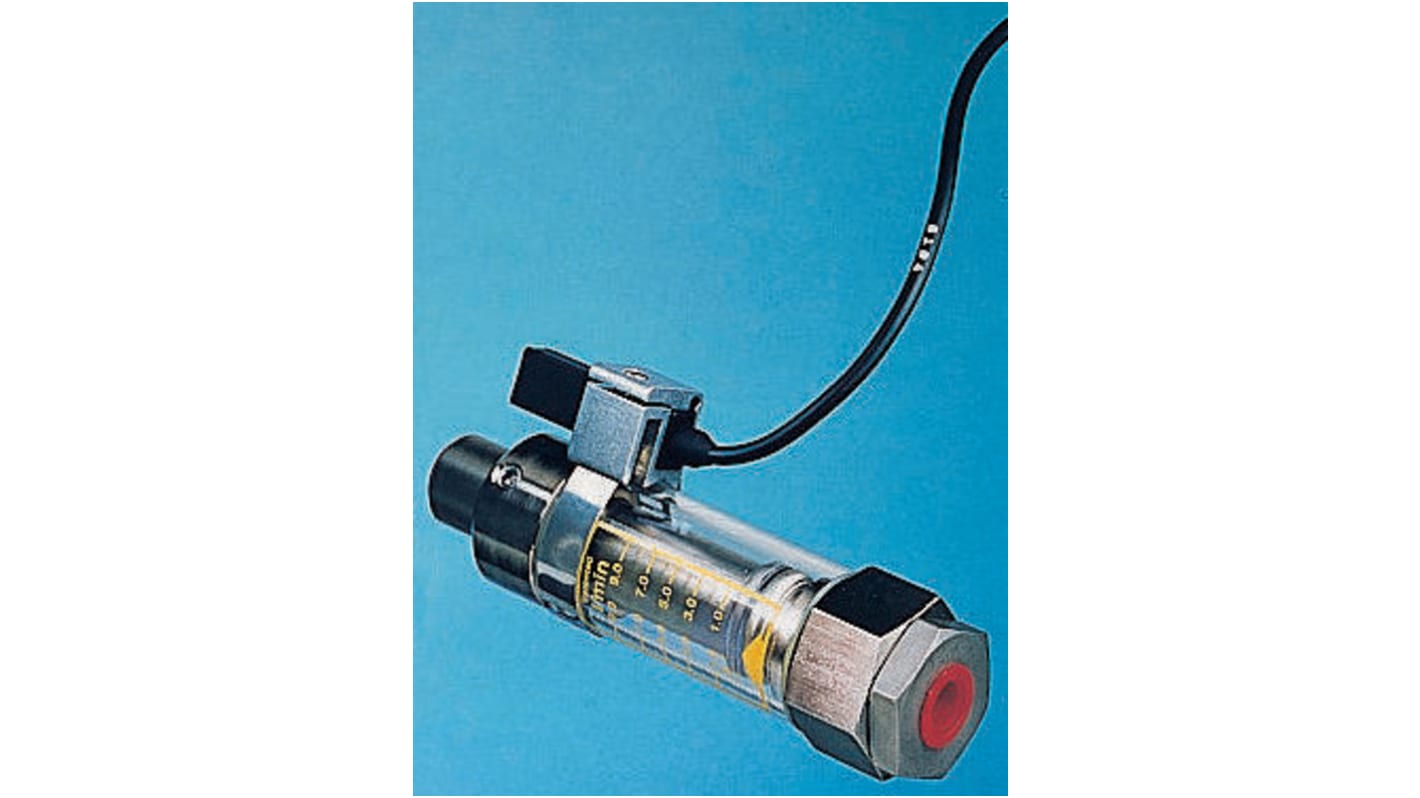

Industrial Flow Indicator – Strap-On
High pressure, variable flow indicator with a graduated flow scale on the outer viewing sleeve and a indicator ring which is magnetically coupled to an internal piston. Utilises the technique of differential pressure across a piston which, as the flow increases, moves the piston against a calibrated spring. Can be installed in any plane without compromising accuracy and is supplied with a manufacturers instruction leaflet.
Supplied with a strap-on reed switch and mounting bracket for fitting to the desired switch position on the flow indicator
Supplied with
2 x DIN standard sockets complete with plugs
規格
Attribute | Value |
---|---|
Device Type | Variable Area |
Minimum Flow Rate | 1 L/min |
Maximum Flow Rate | 9 L/min |
Supply Voltage | 10 → 240 V ac |
Pipe Diameter Range | 1/4 in |
Maximum Pressure | 350bar |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +90°C |
Series | SO |
