DWYER INSTRUMENTS RMB Series Variable Area Flow Meter for Liquid, 10 gal/h Min, 100 gal/h Max
- RS庫存編號:
- 906-9730
- 製造零件編號:
- RMB-85-SSV
- 製造商:
- DWYER INSTRUMENTS
不可供應
RS 不再對此產品進貨。
- RS庫存編號:
- 906-9730
- 製造零件編號:
- RMB-85-SSV
- 製造商:
- DWYER INSTRUMENTS
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | DWYER INSTRUMENTS | |
| Media Monitored | Liquid | |
| Device Type | Variable Area | |
| Minimum Flow Rate | 10 gal/h | |
| Maximum Flow Rate | 100 gal/h | |
| Pipe Diameter Range | 1/4 in | |
| Connection Type | 1/4 NPT Female | |
| Maximum Pressure | 6.9bar | |
| Material | Polycarbonate | |
| Maximum Operating Temperature | +54°C | |
| Series | RMB | |
| 選取全部 | ||
|---|---|---|
品牌 DWYER INSTRUMENTS | ||
Media Monitored Liquid | ||
Device Type Variable Area | ||
Minimum Flow Rate 10 gal/h | ||
Maximum Flow Rate 100 gal/h | ||
Pipe Diameter Range 1/4 in | ||
Connection Type 1/4 NPT Female | ||
Maximum Pressure 6.9bar | ||
Material Polycarbonate | ||
Maximum Operating Temperature +54°C | ||
Series RMB | ||
不適用
- COO (Country of Origin):
- US

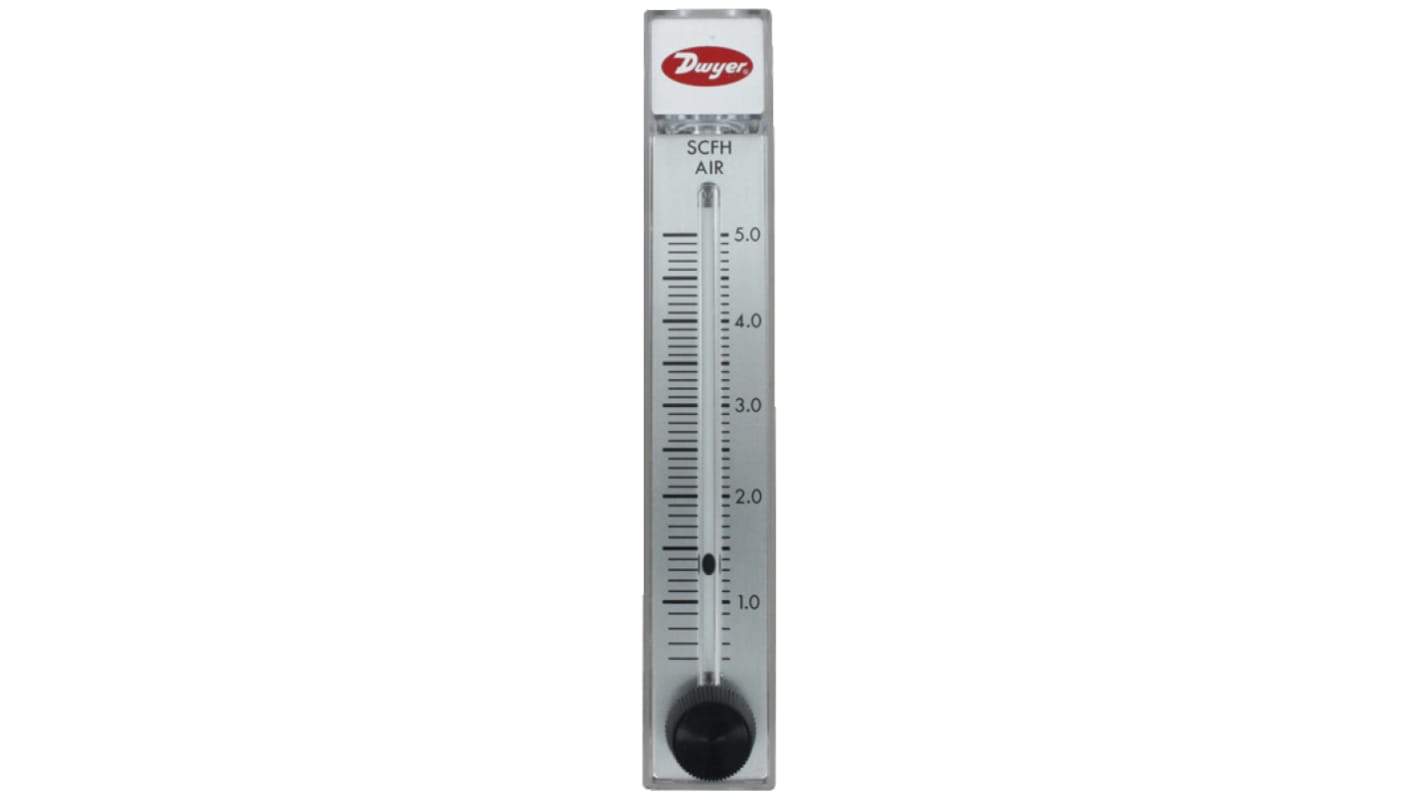

Dwyer Instruments RMB Series Flowmeters
Dwyer Instruments RMB series flowmeters feature a 5” scale and easy to read design. The direct reading scales eliminate troublesome conversions. Integral flow guides stabilise the float throughout the range. The float is highly visible against a white background. The RMB series are accurate within ±4% of full-scale reading.
Easy to read design
5” Scale
Simple installation
Interchangeable bodies
Easy cleaning
5” Scale
Simple installation
Interchangeable bodies
Easy cleaning
