Trenz Electronic GmbH Programmable Logic Development Kits

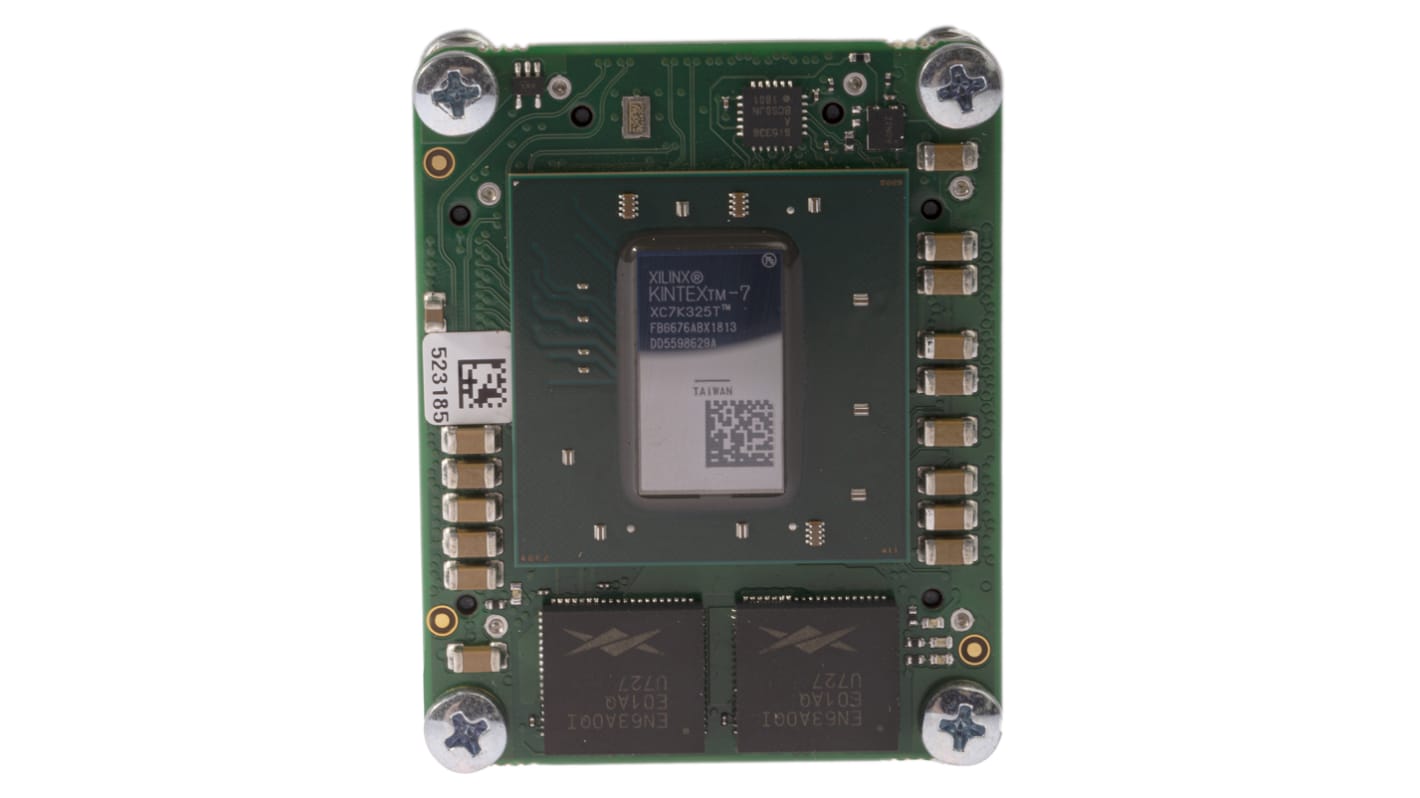

The Trenz electronic carrier board is an industry-grade FPGA module integrating a Xilinx Kintex-7 325T FPGA, 8 MGTs (Multi-Gigabit Transceivers) and 32Mb flash memory for configuration and operation. It has powerful switch-mode power supplies for all on-board voltages. The rugged high-speed stacking strips provide a large number of configurable I/Os. All this on a tiny footprint, smaller than a credit card. It has an electric rating of either 3.3 V or 3.3V and 5V. It is used for industrial applications.
Features and Benefits:
• Core voltage regulator 20A • It has 200MHz speed • It uses FPGA technology • Lead free • Low jitter oscillator with shutdown control 25MHz • MGT voltage regulators with control enable • on-board high efficiency DC-DC converters • Plug-on module with two 100-pin and one 60-pin high-speed hermaphroditic stacking strips • Programmable quad clock generator • Quad-SPI flash memory 256Mbit
Applications:
• Data storage • Industrial Use
Certifications:
• WEEE
Attribute
Value
Classification
Module
Programmable Logic Technology
FPGA
Technology
FPGA
Kit Classification
Module
Featured Device
TE0741-03
Kit Name
4 x 5 cm standard footprint, FPGA Module with Xilinx Kintex-7 XC7K325T-2CF
