- RS庫存編號:
- 175-2532
- 製造零件編號:
- BK4005DDS
- 製造商:
- BK Precision
- RS庫存編號:
- 175-2532
- 製造零件編號:
- BK4005DDS
- 製造商:
- BK Precision
法例與合規
- COO (Country of Origin):
- TW
產品詳細資訊

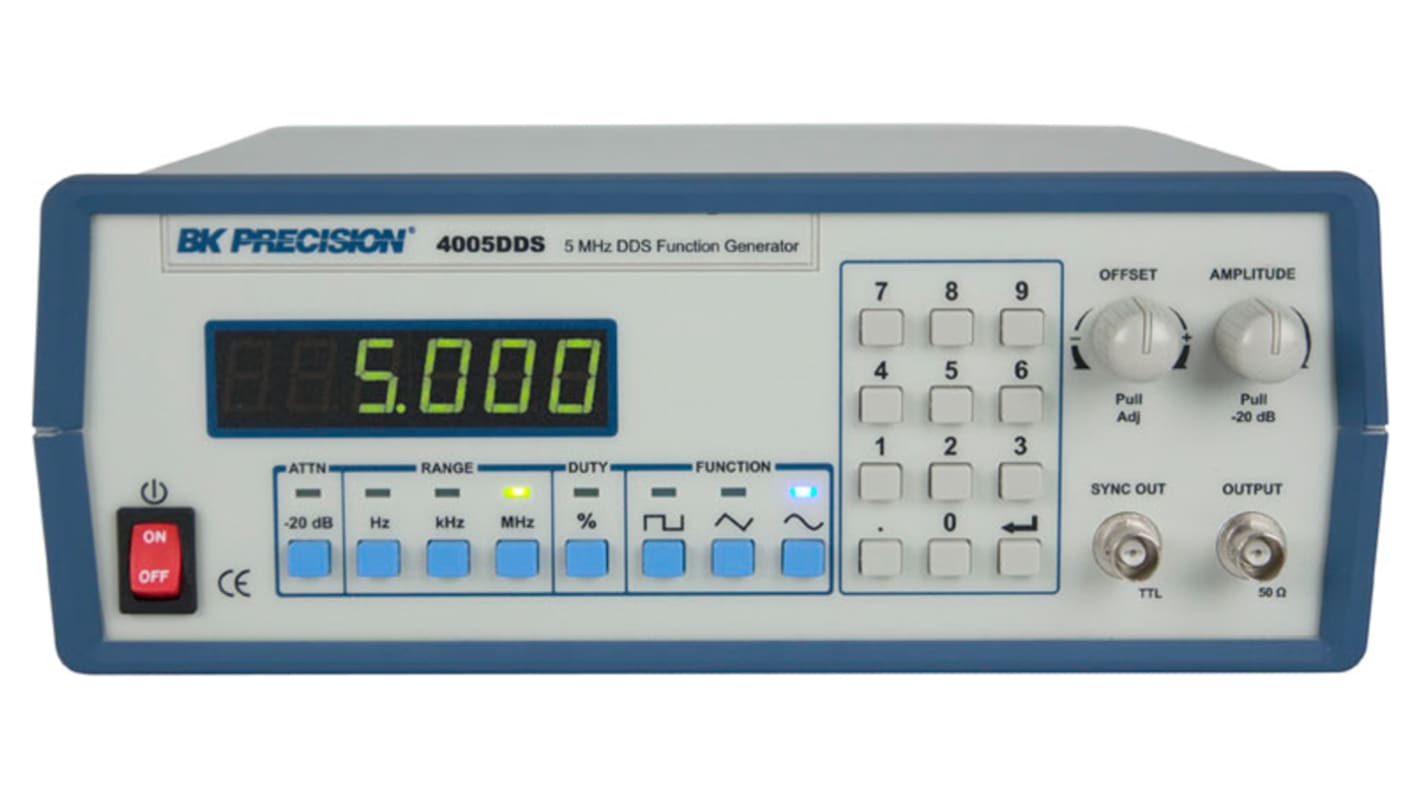

The B&K Precision model BK4005DDS is a versatile 5 MHz DDS (direct digital synthesis) function generator with a 4-digit display. The instrument generates sinusoidal, triangular, and square waveforms over the 1 Hz to 5 MHz range at precise frequencies. The output voltage can be varied from 0 to 10 Vp-p into 50 ohms or to 20 Vp-p into open circuit. A continuously variable DC offset allows the output to be injected directly into circuits at the correct bias level.
Features include:
Frequency is selectable from 1 Hz to 5 MHz
Sine, square, or triangle waveform output
Direct digital synthesis (DDS) architecture
Bright, easy-to-read LED display
Number pad for quick input of frequency
Front panel push button and pull knob can attenuate output by up to 40 dB
Adjustable duty cycle and DC offset
Sine, square, or triangle waveform output
Direct digital synthesis (DDS) architecture
Bright, easy-to-read LED display
Number pad for quick input of frequency
Front panel push button and pull knob can attenuate output by up to 40 dB
Adjustable duty cycle and DC offset
規格
Attribute | Value |
---|---|
Model Number | 4005DDS |
Digital Frequency | Yes |
Maximum Frequency Range Sinewave | 5MHz |
Minimum Frequency Range Sinewave | 1Hz |
Minimum Frequency Range Square Pulse and Arbitrary Waveform | 1 Hz |
Maximum Frequency Range Square Pulse and Arbitrary Waveform | 5MHz |
Maximum Frequency Range Triangle/Saw | 5MHz |
Minimum Frequency Range Triangle/Saw | 1Hz |
Digital Amplitude and Offset | Yes |
Minimum Operating Temperature | 0°C |
Height | 101.6mm |
Width | 297.2mm |
Length | 279.4mm |
Output Impedance | 50Ω |
Weight | 2.3kg |
Attenuation | -20dB |
Frequency Range Square Pulse and Arbitrary Waveform | 1 Hz → 5 MHz |
Maximum Operating Temperature | +40°C |
Dimensions | 279.4 x 297.2 x 101.6mm |
Output Amplitude | 20V Pk-Pk |
