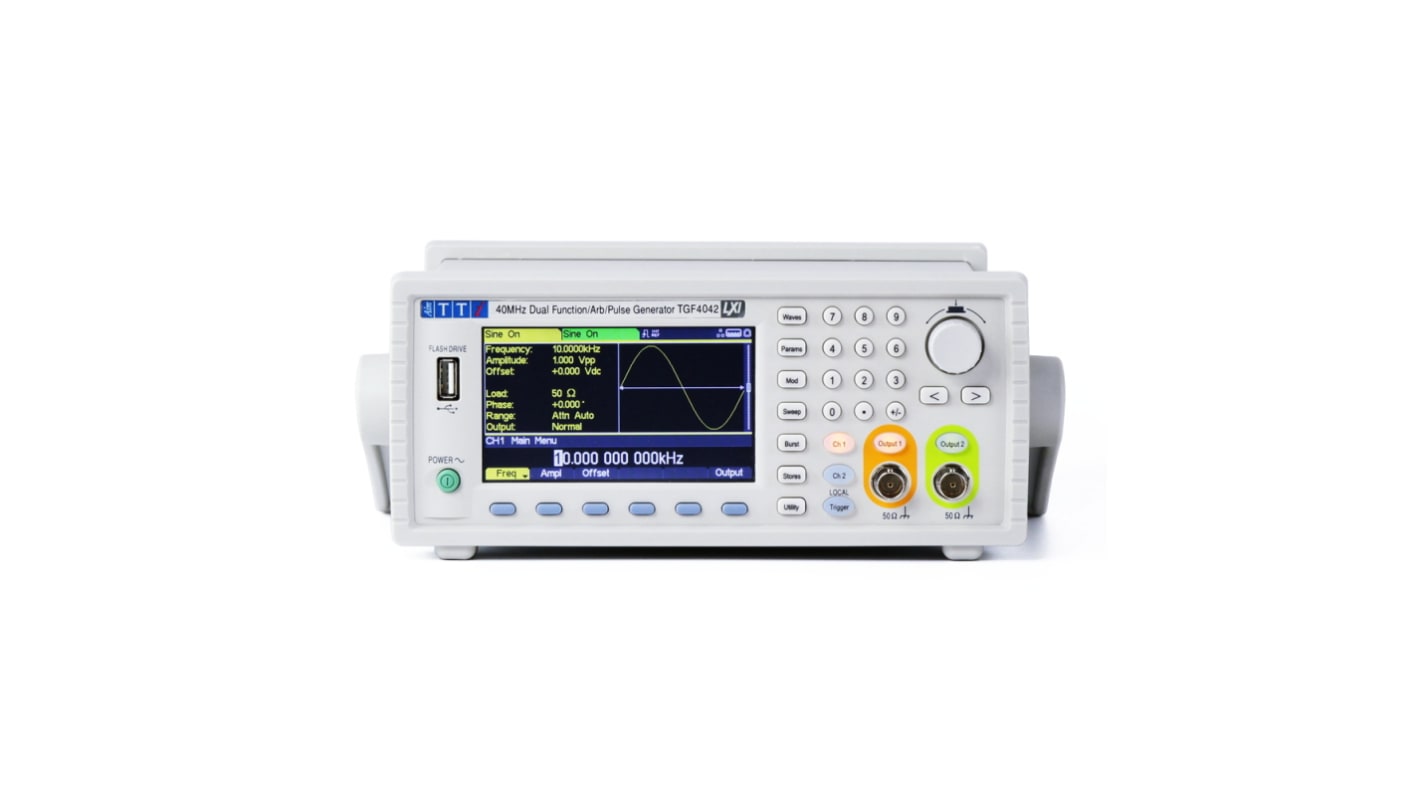

Aim-TTi TGF4042 Function Generator, 1μHz Min, 40MHz Max, FM Modulation, Variable Sweep
- RS庫存編號:
- 181-3540
- 製造零件編號:
- TGF4042
- 製造商:
- Aim-TTi
- RS庫存編號:
- 181-3540
- 製造零件編號:
- TGF4042
- 製造商:
- Aim-TTi
法例與合規
- COO (Country of Origin):
- GB
產品詳細資訊
Aim-TTi TGF4000 Series Function Generator, Digital Frequency, FM Modulation - TGF4042
This function generator by Aim-TTi, with a digital amplitude offset capability and a frequency range of up to 25MHz, is a powerful tool designed to meet the demands of various industries.
Features & Benefits
• Offers precise digital amplitude and offset capabilities for accurate waveforms
• Supports a wide frequency range up to 25MHz to cover various applications
• Integrates GPIB, LAN, and USB interfaces for enhanced connectivity
• Features internal and external amplitude modulation for versatile applications
• Provides TTL output level for better signal control
• Supports a wide frequency range up to 25MHz to cover various applications
• Integrates GPIB, LAN, and USB interfaces for enhanced connectivity
• Features internal and external amplitude modulation for versatile applications
• Provides TTL output level for better signal control
Applications
• Suitable for electronic testing and calibration purposes
• Ideal for waveform generation in research and development labs
• Can be used for educational institutions for teaching purposes
• Ideal for waveform generation in research and development labs
• Can be used for educational institutions for teaching purposes
Can it be used for waveform generation in research labs?
Yes, this function generator is suitable for waveform generation in research labs.
Will this generator provide precise digital amplitude and offset capabilities?
Yes, the Aim-TTi function generator offers precise digital amplitude and offset capabilities.
Is it compatible with GPIB, LAN, and USB interfaces?
Yes, it integrates GPIB, LAN, and USB interfaces for enhanced connectivity.
規格
Attribute | Value |
|---|---|
| Series | TGF4000 |
| Model Number | TGF4042 |
| Number of Channels | 2 |
| Digital Frequency | Yes |
| Maximum Frequency Range Sinewave | 40MHz |
| Minimum Frequency Range Sinewave | 1µHz |
| Maximum Frequency Range Square Pulse and Arbitrary Waveform | 25 (Square & Pulse) MHz, 40 (Arbitrary)MHz |
| Minimum Frequency Range Square Pulse and Arbitrary Waveform | 1 μHz |
| Minimum Frequency Range Triangle/Saw | 1µHz |
| Maximum Frequency Range Triangle/Saw | 5MHz |
| Digital Amplitude and Offset | Yes |
| Internal Linear and Log Sweep | Yes |
| Variable Sweep | Yes |
| Internal and External Amplitude Modulation | Yes |
| FM Modulation | Yes |
| Time Base Accuracy | <±1 (Initial Settling Error) ppm, <±1(Oscillator Aging Rate) ppm, <1(Temperature Range) ppm |
| Output Impedance | 50Ω |
| Interface Type | GPIB, LAN, USB |
| Width | 295mm |
| Dimensions | 250 x 295 x 97mm |
| Length | 250mm |
| Weight | 3.1kg |
| Frequency Range Square Pulse and Arbitrary Waveform | 1 μHz → 25 MHz (Square & Pulse), 40 (Arbitrary) MHz |
| Minimum Operating Temperature | +5°C |
| Height | 97mm |
| Input Impedance | 10 kΩ |
| TTL Output Level | 10V Pk-Pk |
| Operating Temperature Range | +5 → +40 °C |
| Output Amplitude | 10V Pk-Pk |
| Maximum Operating Temperature | +40°C |
