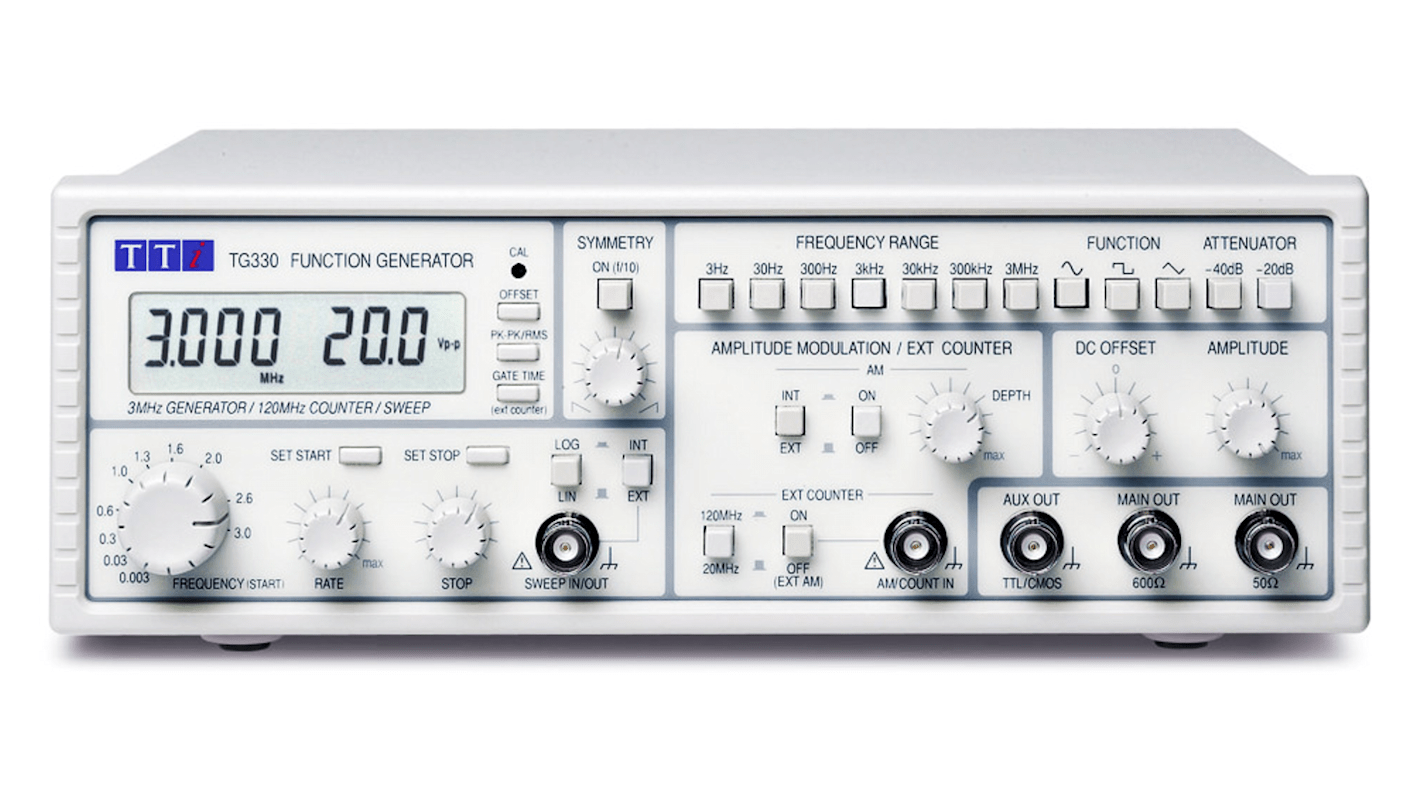

Aim-TTi TG330 Function Generator, 0.03Hz Min, 3MHz Max, Variable Sweep
- RS庫存編號:
- 465-8928
- 製造零件編號:
- TG330
- 製造商:
- Aim-TTi
1 現貨庫存,可於4工作日發貨。
單價 个
HK$5,073.82
單位 | 每單位 |
---|---|
1 + | HK$5,073.82 |
- RS庫存編號:
- 465-8928
- 製造零件編號:
- TG330
- 製造商:
- Aim-TTi
- COO (Country of Origin):
- GB
Aim-TTi TG330 3MHz Function Generator with Counter Sweep and AM
The TG330 has the same features and specifications as the TG320, but with the addition of an internal sweep generator and an AM capability.
Function generator specifications as TG315
Frequency counter specifications as TG320
Internal sweep generator with lin or log sweep
Amplitude modulation, internal or external source
Frequency counter specifications as TG320
Internal sweep generator with lin or log sweep
Amplitude modulation, internal or external source
Aim-TTi TG300 Series Function Generator, 0.03 Hz to 3 MHz Frequency Range, 0 to 5 V TTL Output Level - TG330
This function generator by Aim-TTi is a versatile and reliable tool for various industries. With a wide frequency range of 0.03 Hz to 3 MHz across different waveforms, this function generator offers precise wave generation capabilities for a range of applications.
Features & Benefits
• Attenuation options of -60 dB, -40 dB, -20 dB, 0 dB for flexible signal control
• CMOS output level ranging from 0 to 5 V for compatibility with different devices
• Digital amplitude and offset control for precise waveform adjustments
• Internal and external amplitude modulation for enhanced signal manipulation
• Internal linear and log sweep functions for custom waveform generation
• Variable sweep capability for versatile signal output
• TTL output level of 0 to 5 V for logic signal compatibility
• Compact dimensions of 235 x 260 x 88 mm for easy integration into setups
• Lightweight design of 1.9 kg for portability and convenience
• CMOS output level ranging from 0 to 5 V for compatibility with different devices
• Digital amplitude and offset control for precise waveform adjustments
• Internal and external amplitude modulation for enhanced signal manipulation
• Internal linear and log sweep functions for custom waveform generation
• Variable sweep capability for versatile signal output
• TTL output level of 0 to 5 V for logic signal compatibility
• Compact dimensions of 235 x 260 x 88 mm for easy integration into setups
• Lightweight design of 1.9 kg for portability and convenience
Applications
• Signal testing in electronics
• Waveform generation in research and development
• Signal modulation in communication systems
• Frequency response testing in audio equipment
• Waveform generation in research and development
• Signal modulation in communication systems
• Frequency response testing in audio equipment
Can it function with multiple waveforms simultaneously?
Yes, the function generator can support multiple waveforms for versatile signal generation.
Will it work with both European and British power outlets?
Yes, it is compatible with Type C - European Plug and Type G - British 3-pin plug types.
Is it feasible for frequency calibration in precision instruments?
Yes, the precision time base accuracy of ±10 ppm ensures reliable frequency calibration.
Attribute | Value |
---|---|
Maximum Frequency Range Sinewave | 3MHz |
Number of Channels | 1 |
Maximum Frequency Range Square Pulse and Arbitrary Waveform | 3MHz |
Series | TG300 |
Output Impedance | 50 Ω, 600 Ω |
Minimum Frequency Range Sinewave | 0.03Hz |
Variable Sweep | Yes |
Minimum Frequency Range Square Pulse and Arbitrary Waveform | 0.03 Hz |
Time Base Accuracy | ±10ppm |
Digital Frequency | Yes |
Maximum Frequency Range Triangle/Saw | 3MHz |
Minimum Frequency Range Triangle/Saw | 0.03Hz |
Length | 235mm |
Attenuation | -60 dB, -40 dB, -20 dB, 0 dB |
Frequency Range Square Pulse and Arbitrary Waveform | 0.03 Hz → 3 MHz |
Input Impedance | 10 kΩ |
Operating Temperature Range | +5 → +40 °C |
Plug Type | Type C - European Plug, Type G - British 3-pin |
CMOS Output Level | 0 → 5V |
Maximum Operating Temperature | +40°C |
Output Amplitude | 20V Pk-Pk |
Model Number | TG330 |
Minimum Operating Temperature | +5°C |
Height | 88mm |
Internal and External Amplitude Modulation | Yes |
Internal Linear and Log Sweep | Yes |
Dimensions | 235 x 260 x 88mm |
Digital Amplitude and Offset | Yes |
Width | 260mm |
TTL Output Level | 0 → 5V |
Weight | 1.9kg |
