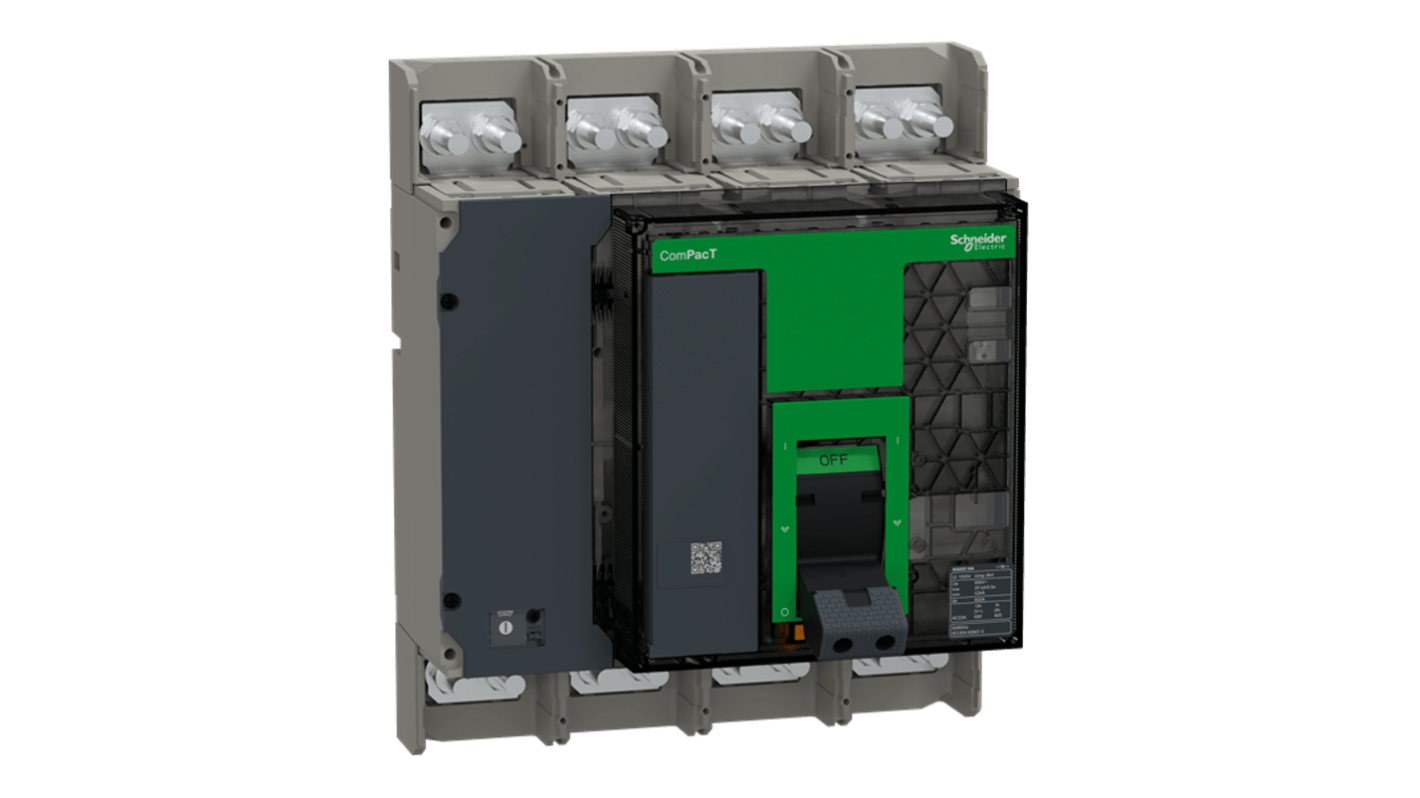

Schneider Electric Fuse Switch Disconnector, 4 Pole, 800A Max Current

The Schneider Electric Switch disconnector is a complete 4 poles switch disconnector used to control and isolate electrical distribution circuits. This device is a fixed version, front connected and manually operated. The operational voltage is 690VAC 50 or 60 Hz. The operational current is 800A and the conventional thermal current is 800A at 60°C. This product comes with a variety of optional functions and accessories.

Compliant with IEC 60947-1 and IEC60947-3 standards
RoHS compliant
IP40 protection conforming to IEC 60529
IK07 protection conforming to EN 50102
