Testo 0563 3163 438A, CFCs, HCFCs, HFCs, R134a, R-22, R-404A, R-410A, R-507 Refrigerant Leak Detector

  • RS庫存編號 913-2639
  • 製造零件編號 0563 3163
  • 製造商 Testo
產品概覽和技術數據資料表
法例與合規
不適用
產品詳細資訊

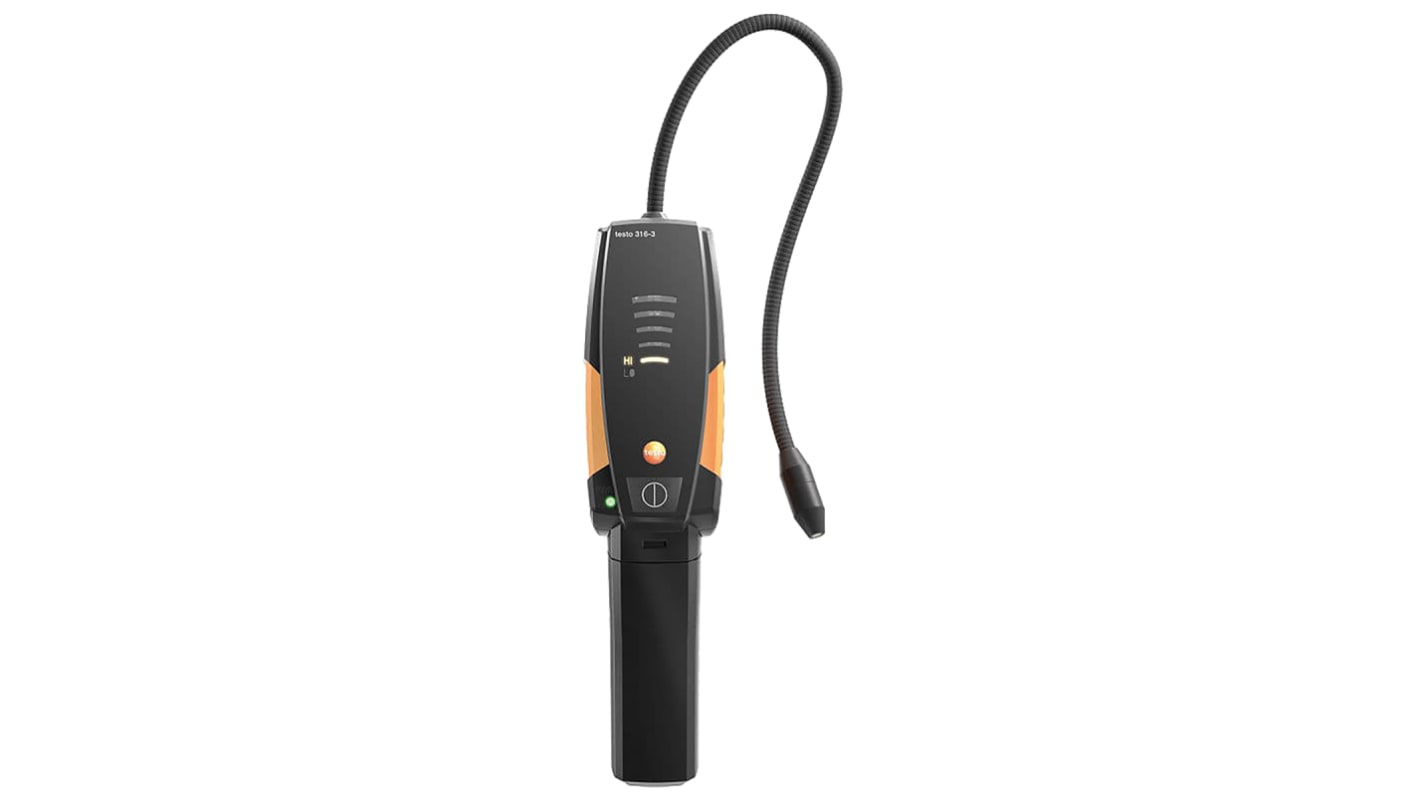

testo 316-3 Refrigerant Leak Detector

The innovative testo 316-3 enables users to find most refrigerant leaks. Features include fast and easy reset with automatic zeroing. The 316-3 detects R22, R134a, R404A, R410A, R507, R438A and all CFCs, HFCs and HCFCs. Its proven heated diode sensor provides great sensitivity down to 0.15 oz (4.25 gm) per year. Capabilities include detection of new refrigerant blends such as R-410A, R-407C and R134-a.

Patented heated diode sensor provides excellent sensitivity
High/low sensitivity adjustment and automatic zeroing
Easy one-button operation
Dependable, rugged performance

Standards

EN 14624:2012; SAE J1627

Supplied with

Sensor head, transport case, calibration certificate, batteries, filter

Testo Refrigerant Leak Detector

The Testo handheld refrigerant leak detector enables users to find most of the refrigerant leaks. Its features include fast and easy reset with automatic zeroing. The 316-3 detects R22, R134a, R404A, R410A, R507, R438A and all CFCs, HFCs and HCFCs. Its proven heated diode sensor provides great sensitivity down to 0.15oz (4.25gm) per year. Its capabilities include detection of new refrigerant blends such as R-410A, R-407C and R134-a.

Standards:
EN 14624:2012 SAE J1627

Supplied with:
Sensor head, transport case, calibration certificate, batteries and filter.

Features and Benefits


Patented heated diode sensor provides excellent sensitivity
• High/low sensitivity adjustment
• Designed for use on new refrigerants
and blends
• Easy one-button operation
• Response time 20s
• Dependable, rugged performance
• Audible and visual alarm
• Extremely fast
• Battery type is 2xD
• Battery life is 16 hours
continuous
• Automatic zeroing
• LED indicator
• Rugged housing
• Operating temperature ranges between -20⁰C and 50⁰C

Applications


Boiler plant rooms
• Automotive industry
• Welding
• Power plants
• Refrigeration plants
• Textile industry

Certifications


EN 14624:2012
• SAE J1627

規格
Attribute Value
Gases Detected CFCs, HCFCs, HFCs, R-22, R-404A, R-410A, R-507, R134a, 438A
Response Time 20 s
Meter Type Handheld
Audible Alarm Yes
Visual Alarm Yes
Power Source Battery
Battery Type 2 x D
Battery Life 16 h
Dimensions 270 x 65 x 65mm
Weight 454g
Length 270mm
Width 65mm
Height 65mm
Model Number p Testo 316-3
Minimum Operating Temperature -20°C
Maximum Operating Temperature +50°C
