TLE49613LHALA1 | Infineon Through Hole Hall Effect Sensor, Open Drain Output, 32 V, Block Body, 32V | RS

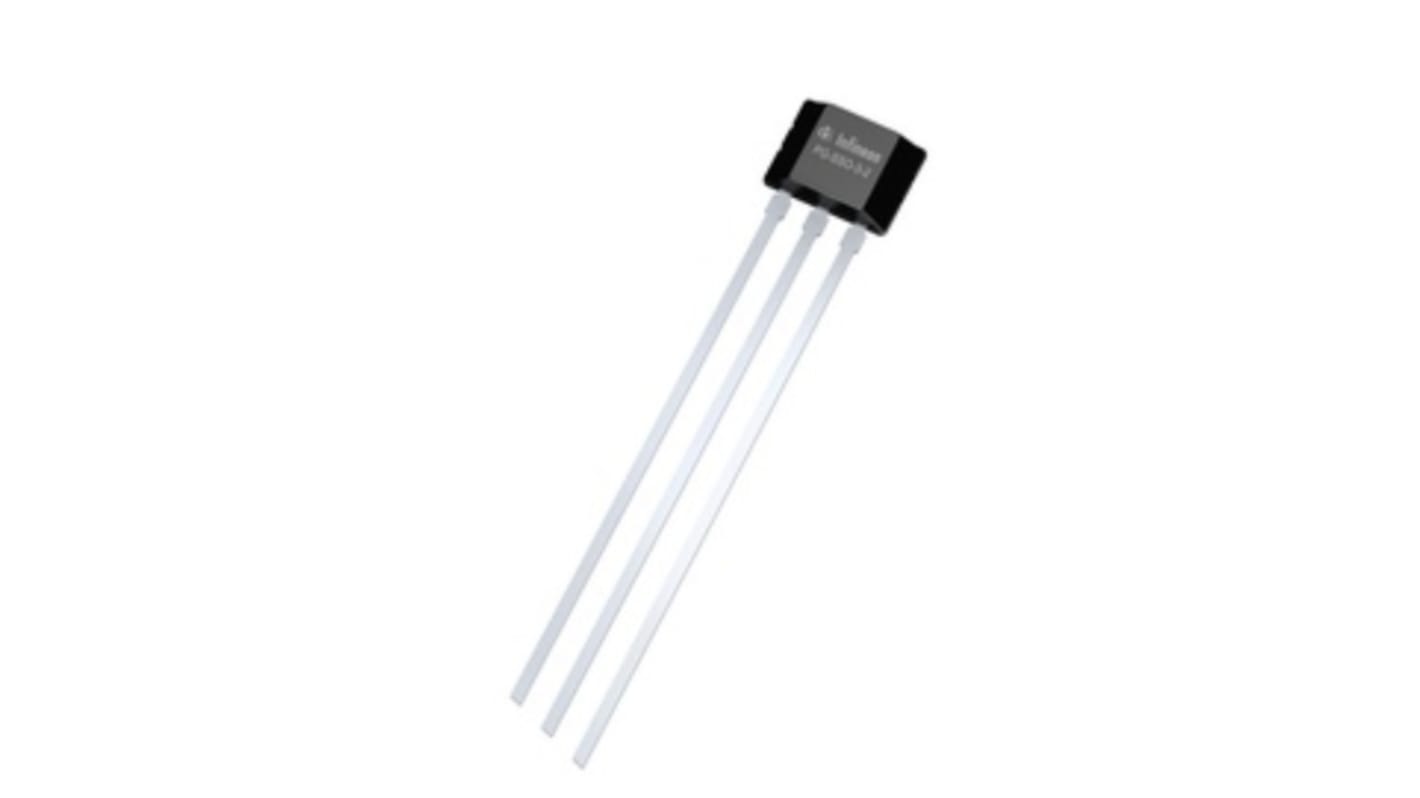

Infineon Through Hole Hall Effect Sensor, Open Drain Output, 32 V, Block Body, 32V

RS庫存編號:: 244-0920P
製造零件編號:: TLE49613LHALA1
製造商:: Infineon

Infineon Through Hole Hall Effect Sensor, Open Drain Output, 32 V, Block Body, 32V

可享批量折扣

Price 个 (以每卷裝提供)**. 連續帶的數量低於 150

HK$8.90

1368 現貨庫存，可於3工作日發貨。*

* 交貨日期可能會根據您選擇的數量和交貨地址而變更。

訂單金額滿 HK$250.00 即可享受免費送貨服務

即時庫存查詢

單位	每單位
10 - 98	HK$8.90
100 - 248	HK$8.65
250 - 498	HK$8.45
500 +	HK$8.25

** 參考價格

RS庫存編號:: 244-0920P
製造零件編號:: TLE49613LHALA1
製造商:: Infineon

Infineon Hall Effect Sensor, 32V Supply Voltage, Open Drain Output Type - TLE49613LHALA1

This Hall effect sensor is a high-precision device designed for automotive and industrial applications. With dimensions of 4.16 x 3.29 x 1.52 mm, this compact Hall effect sensor offers robust performance across a wide temperature range, with an operating temperature between -40°C and +170°C. It is equipped with reverse polarity protection, making it suitable for various operational environments.

Features & Benefits

• Open drain output facilitates high-current requirements
• Integrated overvoltage protection up to 42V without additional resistors
• Excellent temperature stability ensures reliable performance
• Compact design allows for easy integration in tight spaces
• Low jitter operation results in high accuracy for sensing requirement

Applications

• Used for automotive requiring precise state detection
• Utilised in industrial settings for position and speed monitoring
• Ideal for with high temperature requirements
• Suitable for systems with potential load dump scenarios
• Effective in window lifters and other mechanisms requiring precise control

What supply voltage range does this sensor support?

It supports a supply voltage range from 3.0V to 32V, accommodating various system designs without compromising performance.

How does the reverse polarity protection feature function?

The integrated reverse polarity protection safeguards the device against potential damage from incorrect connections, ensuring durability.

What type of output does this sensor provide?

It features an open drain output configuration, which is effective for driving high-power applications and reducing overall circuit complexity.

Can this sensor operate under extreme temperatures?

Yes, it is designed to function effectively within an extensive temperature range of -40°C to +170°C, suitable for demanding environments.

How is the magnetic threshold stability ensured?

The sensor utilises advanced compensation techniques to maintain stable magnetic thresholds, minimising the impact of temperature variations on performance.

For these production packs, non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Infineon
	Output Type	Open Drain
	Body Style	Block
	Mounting Style	Through Hole
	Supply Voltage	32 V
	Maximum DC Voltage	32V
	Length	4.16mm
	Width	3.29mm
	Depth	1.52mm
	Maximum Operating Temperature	+170°C
	Dimensions	4.16 x 3.29 x 1.52 mm
	Minimum Operating Temperature	-40°C
	Reverse Polarity Protection	Yes

	選取全部
	品牌 Infineon
	Output Type Open Drain
	Body Style Block
	Mounting Style Through Hole
	Supply Voltage 32 V
	Maximum DC Voltage 32V
	Length 4.16mm
	Width 3.29mm
	Depth 1.52mm
	Maximum Operating Temperature +170°C
	Dimensions 4.16 x 3.29 x 1.52 mm
	Minimum Operating Temperature -40°C
	Reverse Polarity Protection Yes
