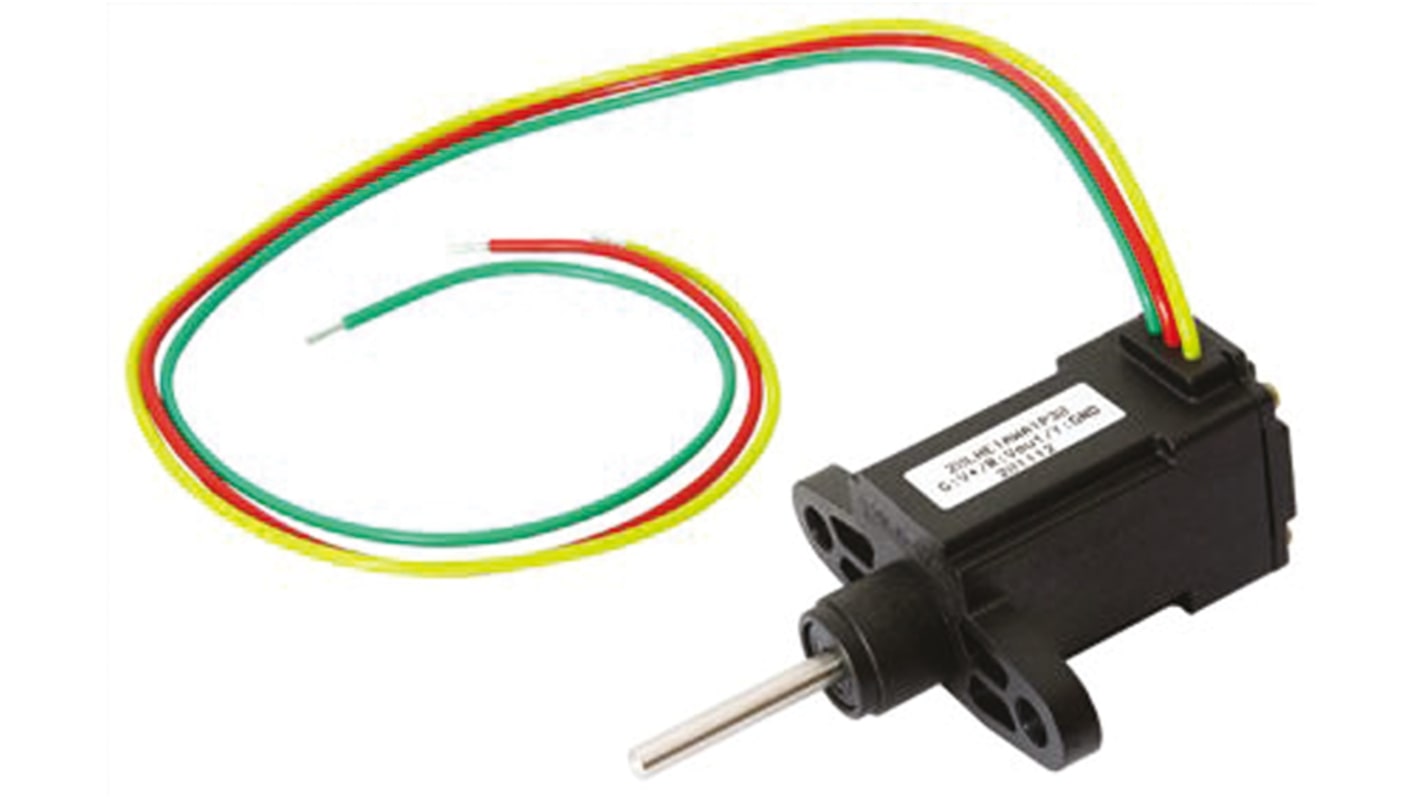

Vishay Flange Mount Hall Effect Sensor, 5 V dc, Block Body, 0 → 10 mm, 5V
- RS庫存編號:
- 811-3996
- 製造零件編號:
- 20LHE1AWA1P30E1
- 製造商:
- Vishay
當前暫無庫存，可於2024/9/16發貨，3 工作日送達。
已增加
單價 个
HK$1,019.01
| 單位 | Per unit |
| 1 - 2 | HK$1,019.01 |
| 3 - 4 | HK$996.59 |
| 5 + | HK$975.19 |
- RS庫存編號:
- 811-3996
- 製造零件編號:
- 20LHE1AWA1P30E1
- 製造商:
- Vishay
法例與合規
- COO (Country of Origin):
- FR
產品詳細資訊
Vishay 20LHE Series Linear Hall effect position sensor
From Vishay, the 20HLE Series linear hall effect position sensor features non-contacting hall effect technology with an accurate linearity down to 1 %. A robust, long life device, the 20HLE Series position centre is ideal for harsh environments and boasts a 10 million cycle life. This hall effect positions sensor is suitable for industrial applications such as pressure measurement and pedal displacement systems.
Features and Benefits:
• Electrical strokes from 0 mm to 10 mm
• Long life: Greater than 10M cycles
• Model dedicated to all applications in harsh environments
• Compliant to RoHS Directive 2002/95/EC
• Long life: Greater than 10M cycles
• Model dedicated to all applications in harsh environments
• Compliant to RoHS Directive 2002/95/EC
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
規格
Attribute | Value |
|---|---|
| Body Style | Block |
| Mounting Style | Flange Mount |
| Supply Voltage | 5 V dc |
| Terminal Type | Wire Lead |
| Maximum DC Voltage | 5V |
| Detection Range | 0 → 10 mm |
| Switching Current | 16 mA |
| Length | 46mm |
| Width | 47mm |
| Depth | 23.3mm |
| Dimensions | 46 x 47 x 23.3 mm |
| IP Rating | IP51 |
| Maximum Operating Temperature | +85°C |
| Housing Material | Thermoplastic |
| Short Circuit Overload Protection | Yes |
| Reverse Polarity Protection | Yes |
| Minimum Operating Temperature | -40°C |
