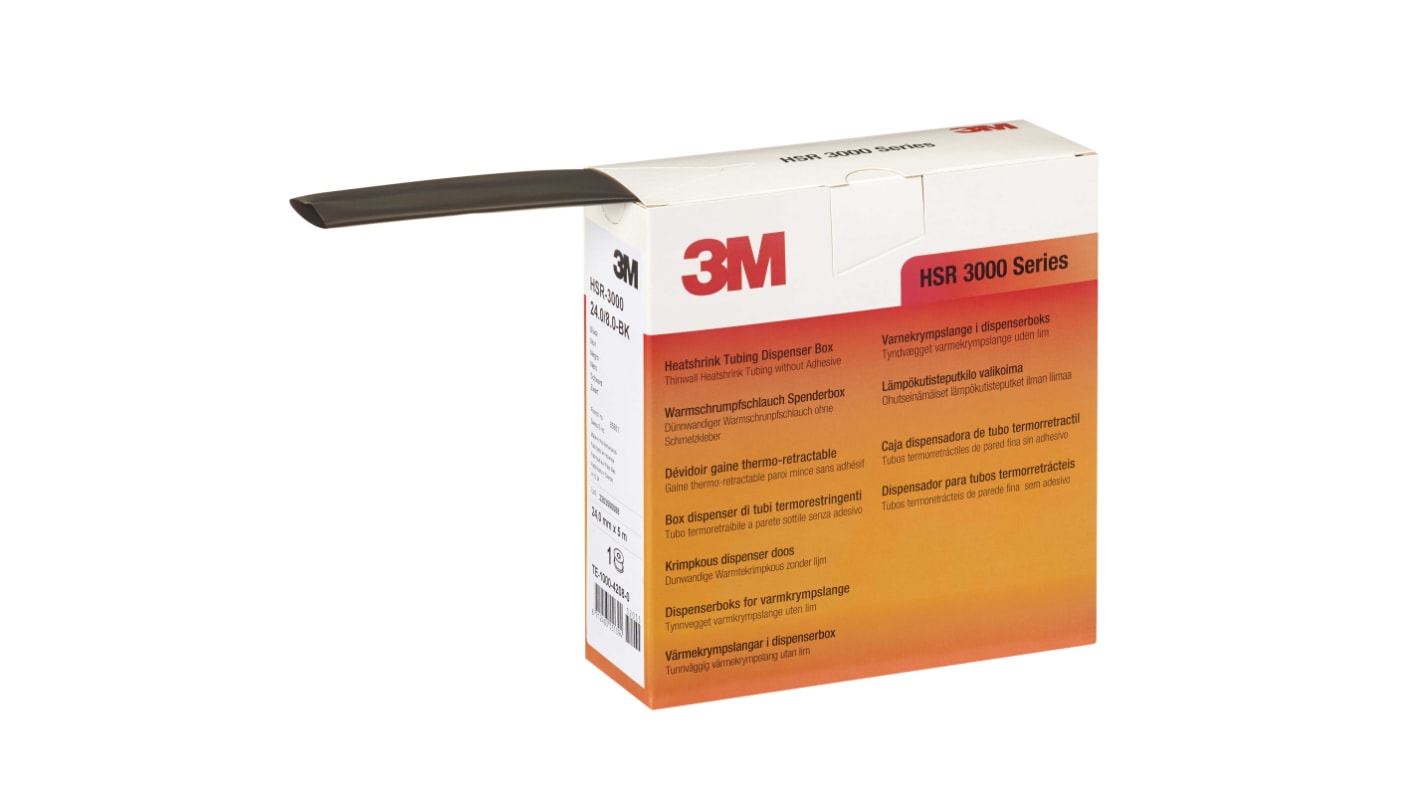

3M Heat Shrink Tubing, Black 1.5mm Sleeve Dia. x 12m Length 3:1 Ratio, HSR 3000 Series

Suitable for insulation, marking, identification and kink-protection
High mechanical strength and temperature resistance, and resistant to solvents and other chemicals
Tubing also flexible after assembly
Halogen-free

The 3M HSR 3000 series black 12m heat shrink tubing has a 3:1 shrink ratio. The tubing has a thin wall. It offers an outstanding balance of electrical, physical and chemical properties for a wide variety of industrial application. The product is delivered in a dispenser box that allows easy and efficient storing and dispensing.

• Sleeve diameter is 1.5mm
• Shrunk diameter is 0.5mm
• High mechanical strength and temperature resistance
• Resistant to solvents and other chemicals
• Tubing also flexible after assembly
• Di-electric strength is 350kV/cm
• Flame retardant
• Operating temperature ranging between -55°C and 135°C
• Thin wall tubing
• 3:1 shrink ratio
• Halogen free rated for 600V applications

• Identification and kink-protection
• Insulation
• Marking

• 407-791 is a 10 m heat shrink tube with a 6 mm sleeve diameter, shrinking to 2 mm
• 407-795 is a 5 m heat shrink tube with a 18 mm sleeve diameter, shrinking to 6 mm
• 407-802 is a 5 m heat shrink tube with a 24 mm sleeve diameter, shrinking to 8 mm
• 407-808 is a 7 m heat shrink tube with a 9 mm sleeve diameter, shrinking to 3 mm
• 407-814 is a 12 m heat shrink tube with a 1.5 mm sleeve diameter, shrinking to 0.5 mm
• 407-818 is a 10 m heat shrink tube with a 3 mm sleeve diameter, shrinking to 1 mm

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.
