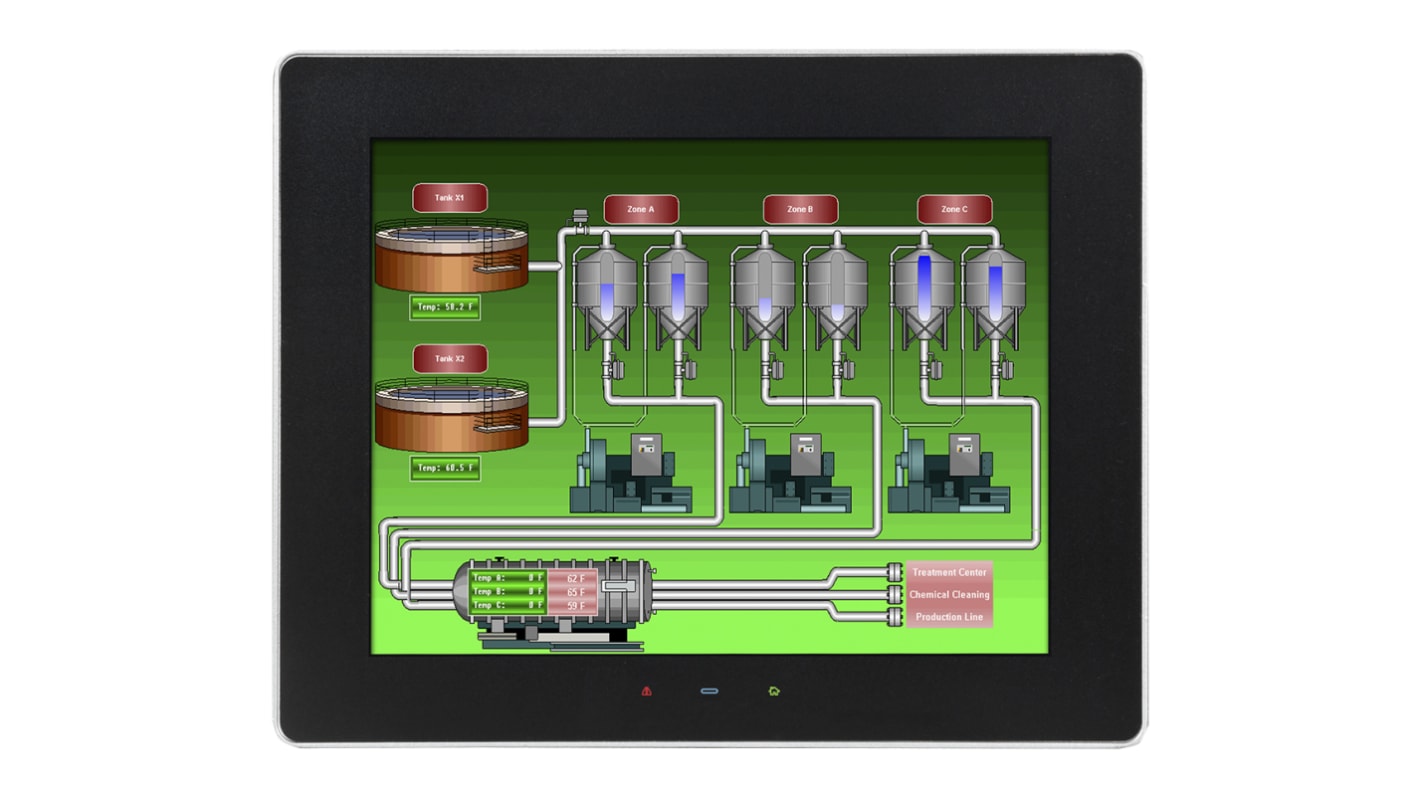

The Red Lion graphite advanced operator panel has 10inch TFT HMI LCD touchscreen display to combine a wide range of versatile plug-in modules with protocol conversion, data logging and web-based monitoring and control. With all the cast-aluminium construction and UL Class 1, Division 2, ABS, ATEX and IECEx zone 2/22 approvals. Graphite HMIs support wide operating temperatures and high shock/vibration tolerances to enable you to connect, monitor and control processes regardless of environment.
Features and Benefits
VGA colour standard touchscreen (640 x 480) Indoor model Up to 20 simultaneous protocol conversions One 10/100 base-TX Ethernet port Three fully isolated serial communication ports, (two RS-232 and one RS-422/485) One USB type B port Two high-retention USB host ports 7 Module slots to easily add I/O capability with plug-in modules 275mm x 218mm dimensions OPC UA client driver OPC UA historical access Crimson 3.0 software for easy drag-and-drop programming Send an email and/or SMS notifications on alarm conditions USB synchronization of database and log files Real-time data logging provides historic visibility to support process improvements Provides a built-in data logging (SD card), web server and FTP for remote access
Applications
Built-in MQTT connectors accelerate IIoT projects with point-and-click simplicity Store and forward buffering for cloud connectors
