NEWHAVEN DISPLAY INTERNATIONAL NHD-7.0CTP-CAPE-P TFT TFT LCD Display / Touch Screen, 7in, 800 x 480pixels
- RS庫存編號:
- 218-691
- 製造零件編號:
- NHD-7.0CTP-CAPE-P
- 製造商:
- NEWHAVEN DISPLAY INTERNATIONAL
小計（1 件）*
HK$1,350.60
訂單超過 HK$250.00 免費送貨
有庫存
- 2 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | HK$1,350.60 |
* 參考價格
- RS庫存編號:
- 218-691
- 製造零件編號:
- NHD-7.0CTP-CAPE-P
- 製造商:
- NEWHAVEN DISPLAY INTERNATIONAL
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | NEWHAVEN DISPLAY INTERNATIONAL | |
| Diagonal Display Size | 7in | |
| Interface Type | 24-bit | |
| Resolution | 800 x 480pixels | |
| Touch Screen | Yes | |
| Viewing Area Dimensions | 154.90 x 86.85mm | |
| Touch Screen Type | Capacitive | |
| Supply Voltage | 5 V | |
| Backlight Type | LED | |
| Display Mode | Transmissive | |
| Dimensions | 165 x 104 x 21.3mm | |
| Display Matrix Technology | TFT | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +70°C | |
| Brightness | 850cd/m² | |
| Viewing Area Width | 211.67mm | |
| Height | 127mm | |
| Voltage Rating | 5V | |
| Operating Temperature Range | -20 → 70°C | |
| Display Type | TFT | |
| Viewing Area Height | 127mm | |
| Standards Met | RoHS Compliant | |
| Width | 211.67mm | |
| 選取全部 | ||
|---|---|---|
品牌 NEWHAVEN DISPLAY INTERNATIONAL | ||
Diagonal Display Size 7in | ||
Interface Type 24-bit | ||
Resolution 800 x 480pixels | ||
Touch Screen Yes | ||
Viewing Area Dimensions 154.90 x 86.85mm | ||
Touch Screen Type Capacitive | ||
Supply Voltage 5 V | ||
Backlight Type LED | ||
Display Mode Transmissive | ||
Dimensions 165 x 104 x 21.3mm | ||
Display Matrix Technology TFT | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +70°C | ||
Brightness 850cd/m² | ||
Viewing Area Width 211.67mm | ||
Height 127mm | ||
Voltage Rating 5V | ||
Operating Temperature Range -20 → 70°C | ||
Display Type TFT | ||
Viewing Area Height 127mm | ||
Standards Met RoHS Compliant | ||
Width 211.67mm | ||
- COO (Country of Origin):
- CN

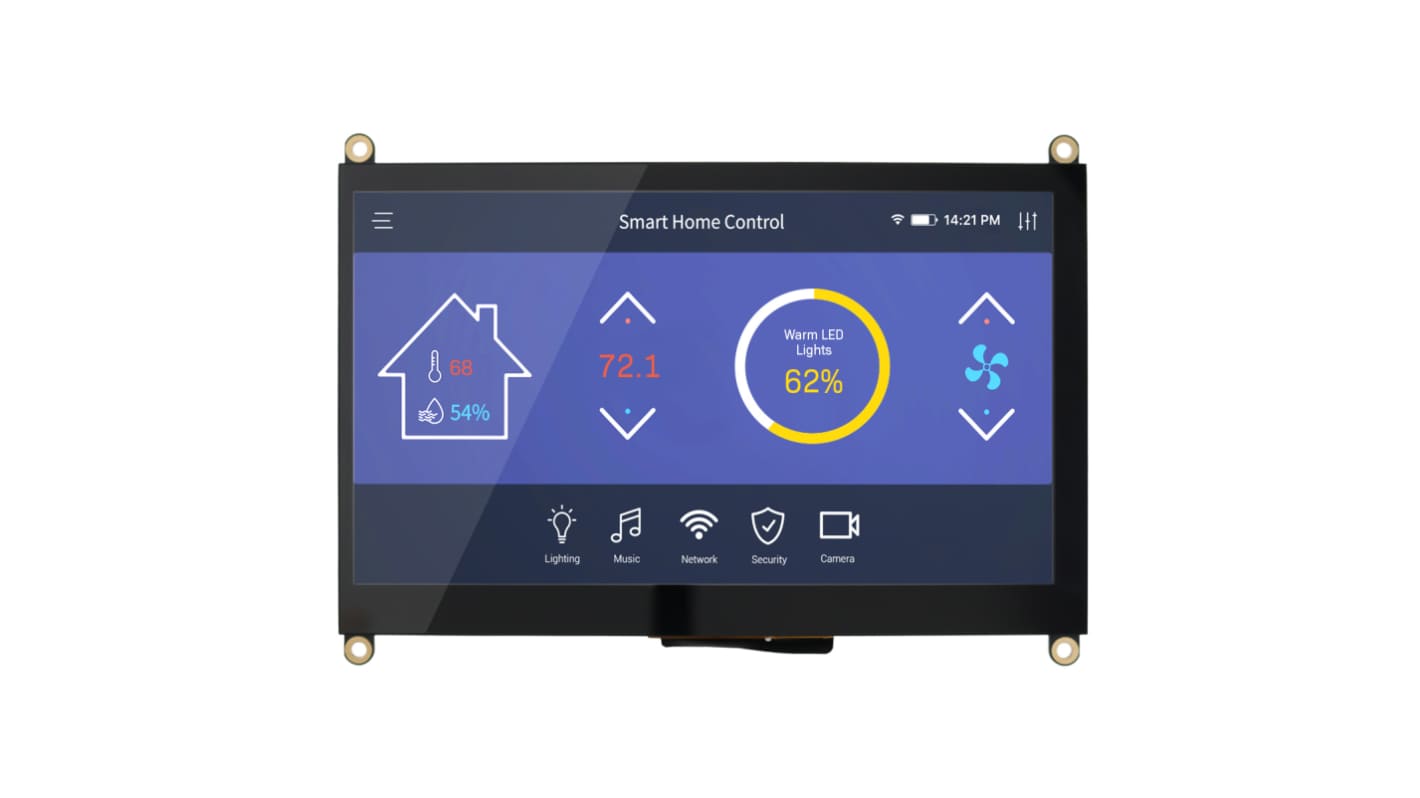

The NEWHAVEN DISPLAY INTERNATIONAL designed this BeagleBone cape in Elgin, IL to be a perfect fit with 7 inch IPS TFT display and upgraded it with EMI shielding. With a 10 point multi touch capacitive touchscreen, cover glass, 850 nits brightness. This cape will be quick to impress and work seamlessly while developing with operating systems like Android and Linux. It includes an on board dip switch for configuring EEPROM and secondary headers for additional cape connections.
Touchscreen Type Capacitive touchscreen for smooth and responsive multi touch functionality
Seamlessly integrates with BeagleBone boards like BeagleBone Black
Optical features normally black and transmissive
Eco-Conscious Design REACH and RoHS compliant for environmental responsibility
EMI Shielded FPC
Seamlessly integrates with BeagleBone boards like BeagleBone Black
Optical features normally black and transmissive
Eco-Conscious Design REACH and RoHS compliant for environmental responsibility
EMI Shielded FPC
