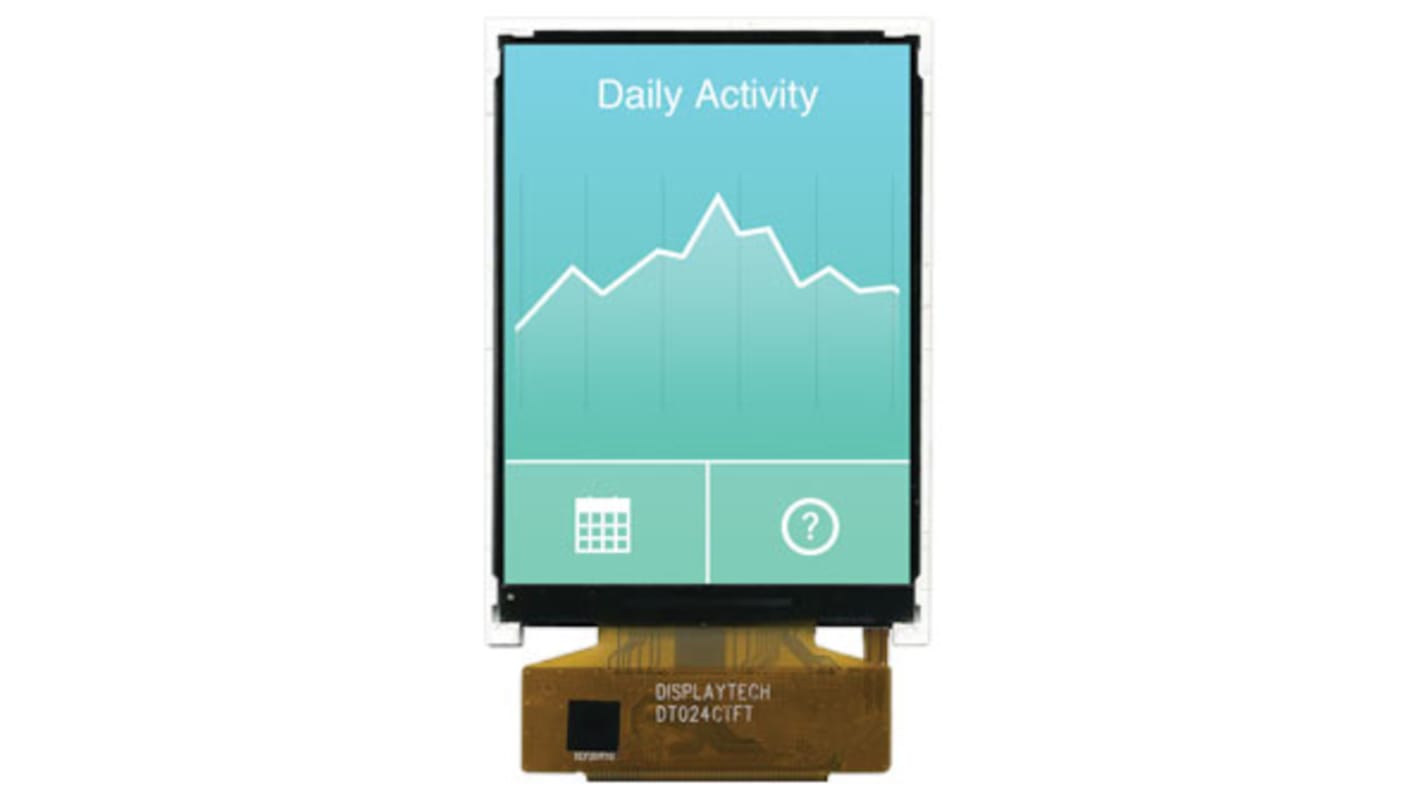

Displaytech DT024CTFT TFT LCD Colour Display, 2.4in QVGA, 240 x 320pixels

  • RS庫存編號 171-1713
  • 製造零件編號 DT024CTFT
  • 製造商 Displaytech
產品概覽和技術數據資料表
法例與合規
相容
COO (Country of Origin): CN
產品詳細資訊

Displaytech TFT LCD Display Modules

Displaytech's TFT LCD display modules are designed to combine performance with value. These reliable TFT LCD modules are suitable for a wide variety of industrial, medical and consumer applications. The driver ICs are mounted directly on to the glass and are as follows:
1.8" TFT (128x160) - driver IC ILI9163C
2.2", 2.4" and 2.8" TFT (240x320) - driver IC ILI9341
3.5" TFT (320x240) - driver IC NT39016D
4.3" TFT (480x272) - driver IC HX8257-A
The DT024DTFT 2.4" module (135-9775) has an IPS display offering improved colour accuracy, a wider viewing angle, and high refresh rate.

• Transmissive TFT LCD display modules
• LED backlight
• DC voltage input
• Connection to drive the display module is via FPC (Flexible Printed Circuit)
• Operating temperature range: -20 to +70°C
• Viewing direction: 6 o’clock (DT035TFT and DT035TFT-TS are: 12 o’clock)
• Touch screen versions come fitted with a 4 wire resistive touch screen

Note

Suitable 45-way, 0.5mm pitch, 0.3mm thickness (with stiffener) FFC/FPC connectors for use with these Displaytech TFT LCD display modules are: 738-8950, 772-7027 or 772-6756.

Displaytech Colour LCD Graphic Dispalys

規格
Attribute Value
Diagonal Display Size 2.4in
Interface Type Parallel, RGB
Resolution 240 x 320pixels
Touch Screen No
Viewing Area Dimensions 36.72 x 48.96mm
Touch Screen Type None
Supply Voltage -0.3 → +4.6 V dc
Backlight Type LED
Display Mode Transmissive
AC or DC Input Voltage Dc
Dimensions 59.46 x 42.72 x 2.8mm
Display Matrix Technology TFT
Minimum Operating Temperature -20°C
Maximum Operating Temperature +70°C
Graphics Array Type QVGA
Height 59.46mm
Response Time 20ms
Viewing Area Width 48.96mm
Number of Colours 262,144
Width 42.72mm
Depth 2.8mm
Operating Temperature Range -20 → +70°C
Aspect Ratio 4:3
Viewing Area Height 36.72mm
Contrast Ratio 350:1
Brightness 200cd/m²
