RS PRO TFT TFT LCD Display / Touch Screen, 8in WXGA, 1024 x 768pixels
- RS庫存編號:
- 254-0009
- 製造商:
- RS PRO
可享批量折扣
單價 个**
HK$3,538.96
3 現貨庫存，可於3工作日發貨。*
* 交貨日期可能會根據您選擇的數量和交貨地址而變更。
訂單金額滿 HK$850.00 即可享受 免費 送貨服務
單位 | 每單位 |
|---|---|
| 1 - 4 | HK$3,538.96 |
| 5 - 9 | HK$3,468.15 |
| 10 + | HK$3,364.11 |
** 參考價格
- RS庫存編號:
- 254-0009
- 製造商:
- RS PRO
- COO (Country of Origin):
- TW

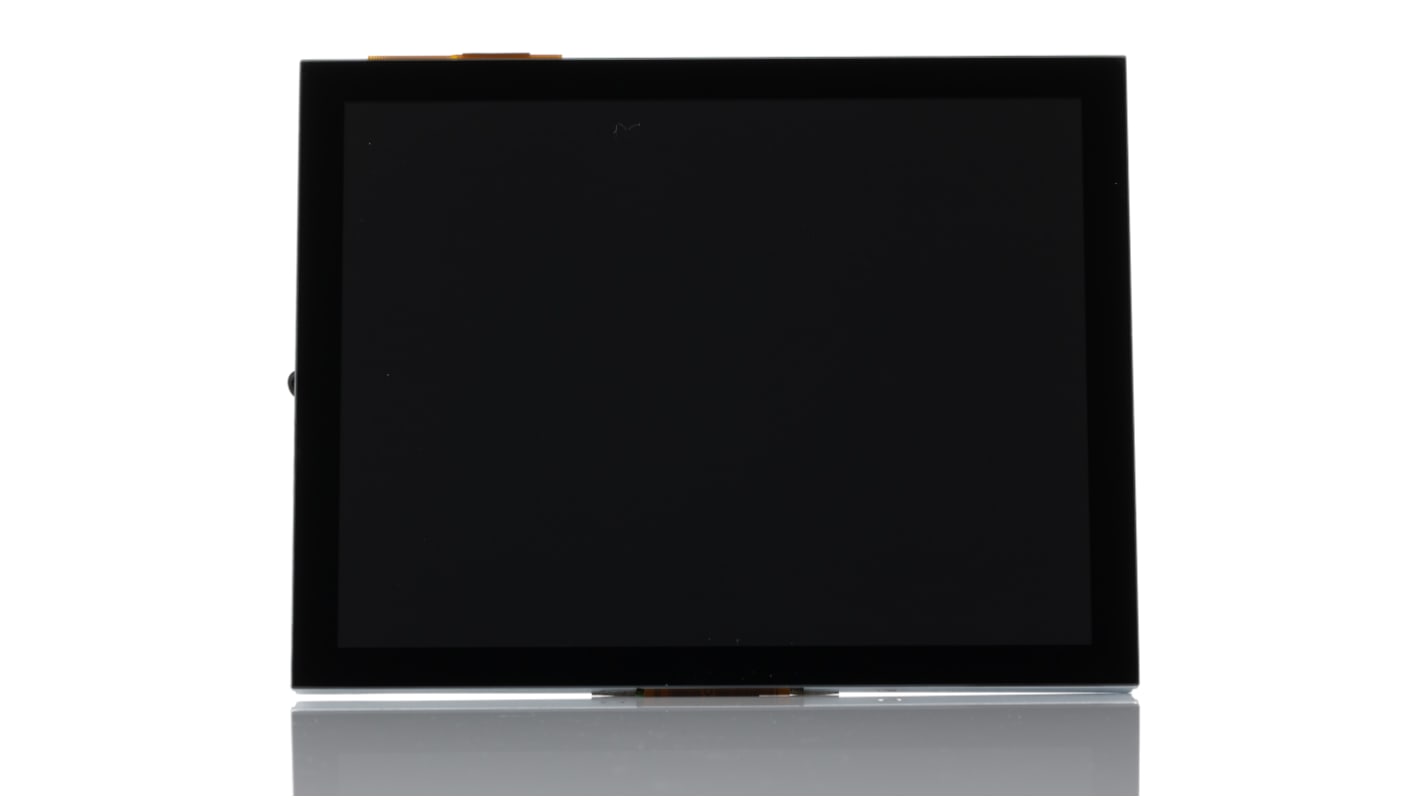

RS PRO 8in HDMI TFT LCD Touchscreen Display
A high quality 8in (4:3) LCD Touchscreen display with HDMI interface featuring WXGA 1024x768 resolution and 16.7 million colours providing excellent image quality.
Composed of a TFT LCD panel, a white LED backlight system and a scratch resistant Projected Capacitive Touch Panel (PACP) which offers many advantages over resistive touch screens including a brighter, cleaner image and faster and more responsive touch sensitivity.
Constructed with an IPS panel (In-Plane Switching) the 8in LCD touchscreen offers unrivalled colour quality with excellent viewing angles and is easy to connect to an array of devices with HDMI output.
Ideal for use in shop displays, embedded computers and single board computers such as Raspberry Pi and ROCK.
Features and Benefits
- 8in TFT screen
- PACP touchscreen
- Wide XGA graphics array
- 1024 x 768 resolution
- Screen size of 162 x 121.54mm
- HDMI input
- IPS panel
- White LED backlight
Suitable RS PRO USB to IDC Connection Cables
268-2651 USB A to 8 Pin IDC Connnection Cable - 500mm
268-2652 USB A to 8 Pin IDC Connnection Cable - 2m
Why RS PRO?
RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.
Attribute | Value |
|---|---|
| Diagonal Display Size | 8in |
| Interface Type | HDMI |
| Resolution | 1024 x 768pixels |
| Touch Screen | Yes |
| Viewing Area Dimensions | 162 x 121.54mm |
| Supply Voltage | 12 V |
| Backlight Type | LED |
| Display Mode | Transmissive |
| AC or DC Input Voltage | dc |
| Dimensions | 183 x 141 x 25.1mm |
| Display Matrix Technology | TFT |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +70°C |
| Graphics Array Type | WXGA |
| Brightness | 1100cd/m² |
| Voltage Rating | 12V |
| Operating Temperature Range | -20 → +70°C |
| Viewing Area Height | 121.54mm |
| Aspect Ratio | 4:3 |
| Viewing Area Width | 162mm |
| Depth | 25.1mm |
| Display Type | LCD |
| Contrast Ratio | 800:1 |
| Response Time | 10 → 30ms |
| Height | 141mm |
| Width | 183mm |
| Number of Colours | 16.7 Million |
