- RS庫存編號:
- 902-8650
- 製造零件編號:
- uLCD-43D
- 製造商:
- 4D Systems
當前暫無庫存,可於2024/6/11發貨,3 工作日送達。
已增加
單價 个
HK$924.98
單位 | Per unit |
1 - 4 | HK$924.98 |
5 - 9 | HK$906.48 |
10 - 24 | HK$888.35 |
25 + | HK$870.58 |
替代產品
該產品我們目前不提供。 這是我們推薦的替代產品。
- RS庫存編號:
- 902-8650
- 製造零件編號:
- uLCD-43D
- 製造商:
- 4D Systems
法例與合規
產品詳細資訊

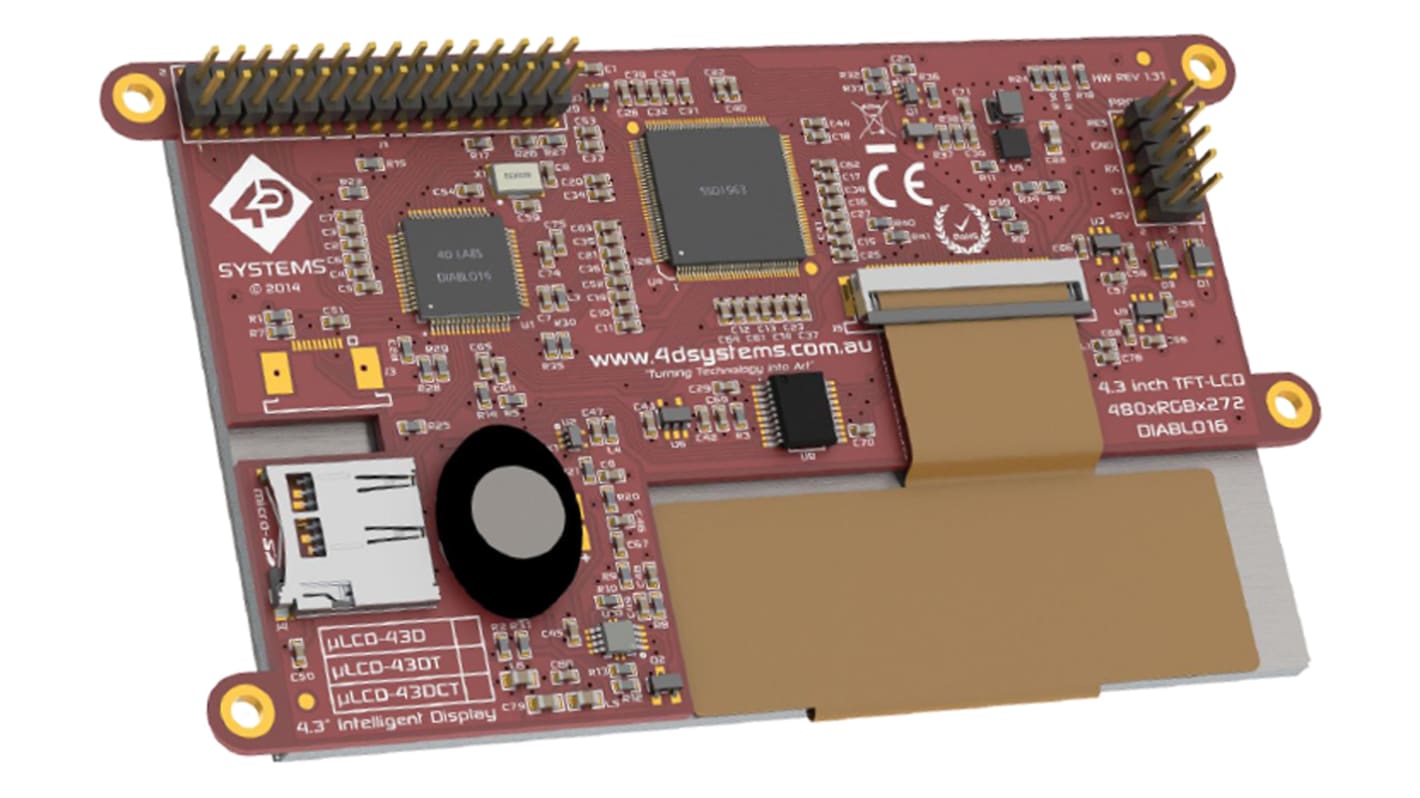

LCD Display Module with DIABLO16 processor. 4D Systems
The uLCD-43D LCD Display Module features an embedded DIABLO16 graphics controller. The DIABLO16 is driven by Extensible Virtual Engine (EVE) and benefits from features such as full colour image, animation, icon and video display. You also have access to Workshop4 IDE for software development and coding using the 4DGL graphics language.
Features & Benefits of the 4.3 inch LCD Display Module
•Dimensions: 119.5 mm x 67 mm x 15.2 mm
•Viewing area: 95.04 mm x 53.85 mm
•480 x 272 pixel resolution
•16 GPIO pins
•Up to 65k colours
•6 banks of 32750 bytes of flash memory
•32 KB SRAM
•microSD memory card socket
•FAT16 DOS compatible file access
•PWM audio pin
•Suitable for a 4 V to 5.5 V power supply
•4 corner plates with 2.7 mm holes for mounting
Features & Benefits of the 4.3 inch LCD Display Module
•Dimensions: 119.5 mm x 67 mm x 15.2 mm
•Viewing area: 95.04 mm x 53.85 mm
•480 x 272 pixel resolution
•16 GPIO pins
•Up to 65k colours
•6 banks of 32750 bytes of flash memory
•32 KB SRAM
•microSD memory card socket
•FAT16 DOS compatible file access
•PWM audio pin
•Suitable for a 4 V to 5.5 V power supply
•4 corner plates with 2.7 mm holes for mounting
Note
For new designs the 4D Systems gen4 range of LCD displays should be considered, including:
• gen4-uLCD-43DT (RS part 1257947)
• gen4-uLCD-43DT (RS part 1257947)
4D Systems Colour Graphic LCD Displays
規格
Attribute | Value |
---|---|
Diagonal Display Size | 4.3in |
Interface Type | I2C, TTL |
Resolution | 480 X 272pixels |
Touch Screen | No |
Viewing Area Dimensions | 95 x 54mm |
Touch Screen Type | None |
Supply Voltage | 5.5 V |
Backlight Type | LED |
Display Mode | Transmissive |
AC or DC Input Voltage | dc |
Dimensions | 67 x 119.5 x 15.2mm |
Display Matrix Technology | TFT |
Minimum Operating Temperature | -10°C |
Maximum Operating Temperature | +60°C |
Brightness | 480cd/m² |
Standards Met | CE, RoHS Compliant |
Depth | 15.2mm |
Width | 119.5mm |
Number of Colours | 65,536 |
Operating Temperature Range | -10 → +60°C |
Contrast Ratio | 350:1 |
Viewing Area Height | 53.85mm |
Viewing Area Width | 95.04mm |
Height | 67mm |
Current Rating | 350mA |
