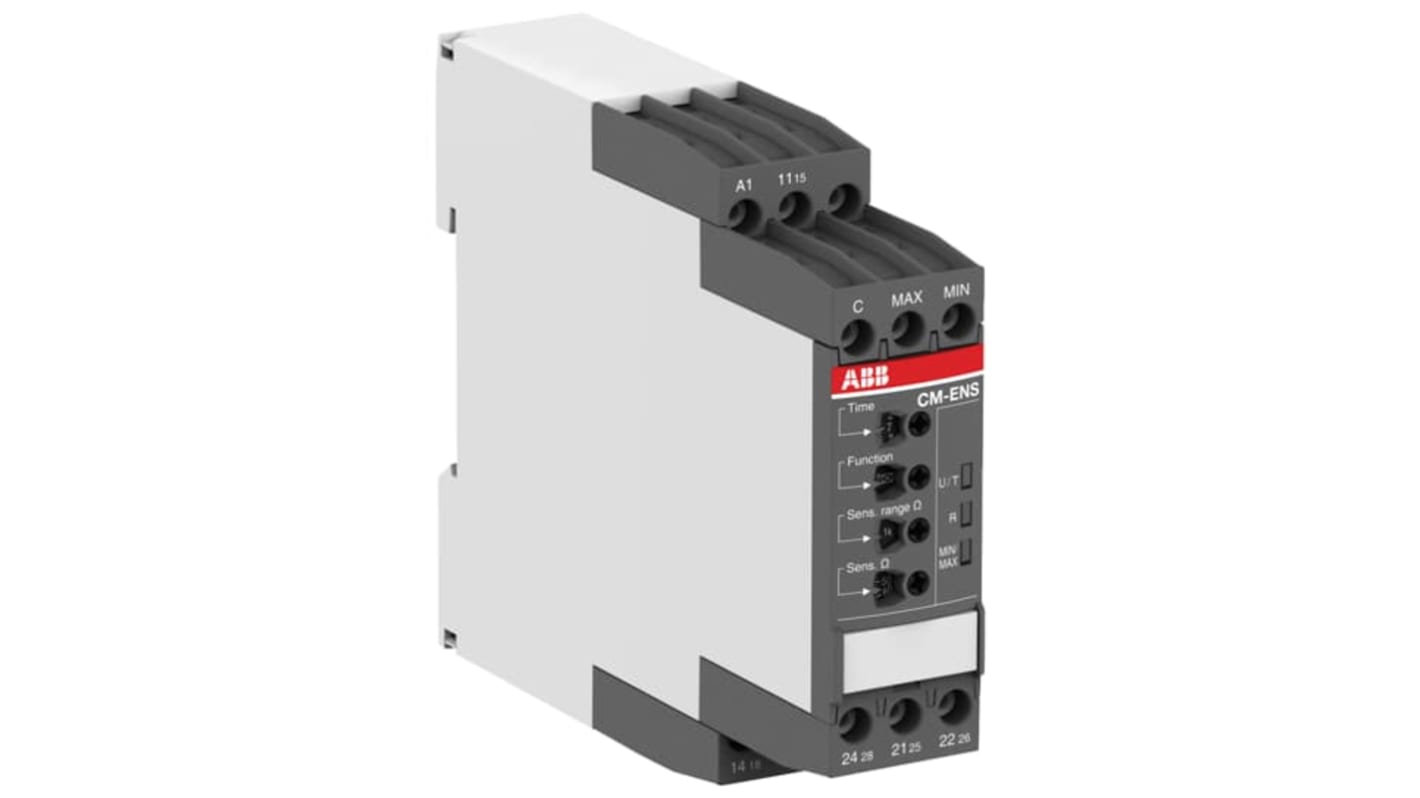

ABB CM-ENS Series Liquid Level Relay - DIN Rail, 24 → 240 V ac/dc 1 Voltage Input SPDT Relay

RS庫存編號:: 135-6328
製造零件編號:: 1SVR730850R0300 CM-ENS.31S
製造商:: ABB

ABB CM-ENS Series Liquid Level Relay - DIN Rail, 24 → 240 V ac/dc 1 Voltage Input SPDT Relay

查看所有Level Controllers

7 現貨庫存，可於3工作日發貨。

已增加

查看購物車

單價个

HK$1,562.41

單位	Per unit
1 +	HK$1,562.41

RS庫存編號:: 135-6328
製造零件編號:: 1SVR730850R0300 CM-ENS.31S
製造商:: ABB

產品概覽和技術數據資料表

Datasheet

法例與合規

不適用

COO (Country of Origin):: DE

產品詳細資訊

CM-ENS Liquid Level Relays

A series of liquid level control relays from ABB for conductive liquids. The CM-ENS range gives a choice of 3 variants each with a compact, space saving housing with the highest fire protection and environmentally friendly materials. Installation is quick and easy using screw or easy-connect terminals and tool free DIN Rail mounting.

Features and Benefits (CM-ENS.1 / CM-ENS.2 / CM-ENS.3)

• 3 LED operational state indication

• Choices of Easy connect push in terminals or screw terminals

• DIN Rail mountable - no tooling required

• Easy adjustment using front panel

• Cascadable

• Adjustable response sensitivity

• 1 C/O SPDT output contact

• Compact 22.5 mm width

Additional Features CM-ENS.2

• Control of two levels (MIN/MAX)

• Front panel adjustment of fill and drain function

Additional Features CM-ENS.31

• Control of two levels (MIN/MAX)

• Front panel adjustment of fill and drain function

• 2 C/O SPDT Contacts

• Selectable ON / OFF delay

Applications

• Dry running protection

• Overflow protection

• Liquid level control

ABB Liquid Level Relay, 0.1 to 1000kΩ Sensitivity, 1 Input - CM-ENS Series - 1SVR730850R0300 CM-ENS.31S

Tired of the ups and downs of tank filling? Level up with this liquid level relay from ABB. It takes the guesswork out of fluid monitoring, as it automatically signals a pump to open when your liquid storage container reaches low levels. The deft device patrols high water points and is easy to set manually using the potentiometer on its front face. A selectable and adjustable on/off delay is on hand to help you overcome nuisance tripping. You can mount this relay in a jiffy by simply snapping it onto a DIN rail.

Features & Benefits

• LED indicator lights for quick and convenient visual diagnostics
• For safety, flame-retardant housing won't catch alight in the event of a fire
• Compact dimensions of 113.4 (L) x 22.5 (W) x 113.4 (D) to maximise board packing efficiency
• Screw terminals hold wires securely so there's minimal need for retightening

Applications

• Waste water management
• Power utilities
• Food and beverage industries
• Pharmaceutical manufacturing

Can I adjust the sensitivity of this liquid level relay?

Yes, the device has an adjustable sensitivity range between 0.1 and 1000kΩ for flexibility.

Liquid Level Relays are used to monitor the levels of conductive liquids, and are available in Up/Down, Minimum, Maximum, and Fill/Empty variations. Liquid Level Relays are straightforward to install and safe to use.

Application Examples

Liquid Level Relays (Conductive Level Sensors) are used in a wide variety of applications including waste water management and the monitoring and management of corrosive liquid media, and designed specifically to provide for the:

Monitoring and control of liquid levels
Protection of pumps against dry running
Ability to detect liquid leaks in a system
Control of media mixing ratios
Control of liquid levels

規格

Attribute	Value
Number of Inputs	1
Mounting Style	DIN Rail
Supply Voltage	24 → 240 V ac/dc
Overall Length	113.4mm
Overall Width	22.5mm
Overall Depth	113.4mm
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+60°C
Sensitivity	0.1 → 1000 kΩ
Isolation Voltage	300 (Supply Circuit)V
Number of Outputs	1
Current Rating	11 mA
Output Type	SPDT Relay
IP Rating	IP20 (Terminal), IP50 (Housing)
Termination Type	Screw
Input Type	Voltage
Series	CM-ENS
Standards Met	CAN/CSA C22.2 No.14, IEC/EN 60255-27, IEC/EN 60947-5-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL 508
