Flowline EchoSonic Series Ultrasonic Level Transmitter Ultrasonic Level Sensor, Vertical, PC Body
- RS庫存編號:
- 124-0123
- 製造零件編號:
- LU27-01
- 製造商:
- Flowline
- RS庫存編號:
- 124-0123
- 製造零件編號:
- LU27-01
- 製造商:
- Flowline
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- US
產品詳細資訊

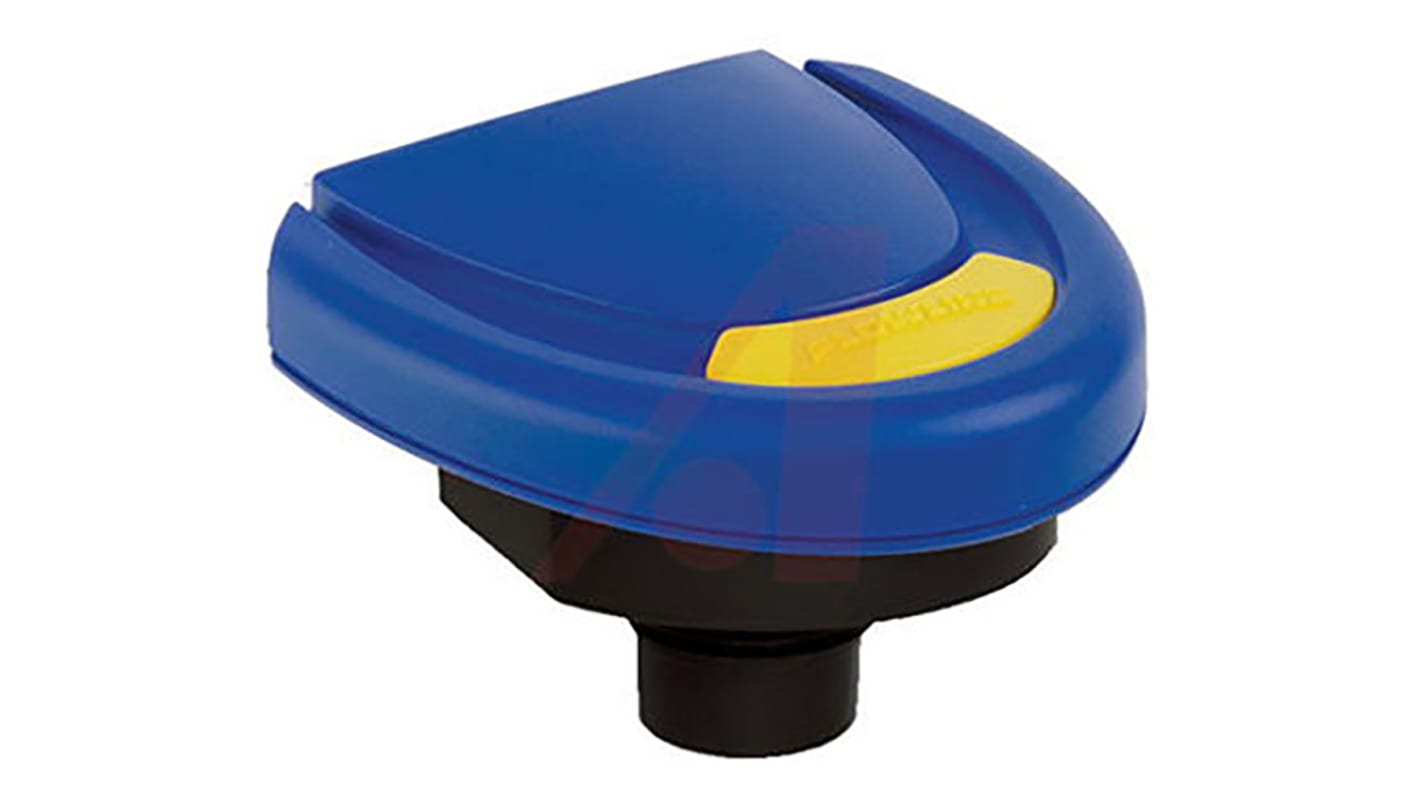

Flowline EchoSonic LU Series Level Transmitter
Robust & reliable level transmitter offered within a 6P enclosure with cable interface. Flowline's echoSonic range of level controllers provide general purpose continuous level measurement over a variety of levels, with a 4-20mA signal output
Various lengths offered, ranging from 3m -10m
Transducer comprised of PVDF and a polycarbonate enclosure suitable for use with corrosive liquids
Plug & Play setup thanks to DSP auto-adaptive filters which can provide optimal signal output
Optional USB communication adapter available (RS Stock No 889-1570)
Transducer comprised of PVDF and a polycarbonate enclosure suitable for use with corrosive liquids
Plug & Play setup thanks to DSP auto-adaptive filters which can provide optimal signal output
Optional USB communication adapter available (RS Stock No 889-1570)
Note
The EchoSonic series is compatible Flowline's free WebCal software to make calibration effortless
Flowline Sensors
規格
Attribute | Value |
|---|---|
| Device Type | Ultrasonic Level Transmitter |
| Mounting Type | Vertical |
| Body Material | PC |
| Cable Length | 3m |
| Minimum Operating Temperature | -35°C |
| Maximum Operating Temperature | +60°C |
| Maximum DC Voltage | 24V |
| Maximum Current | 20 mA |
| Maximum Pressure | 2bar |
| Gasket Material | FKM |
| Series | EchoSonic |
