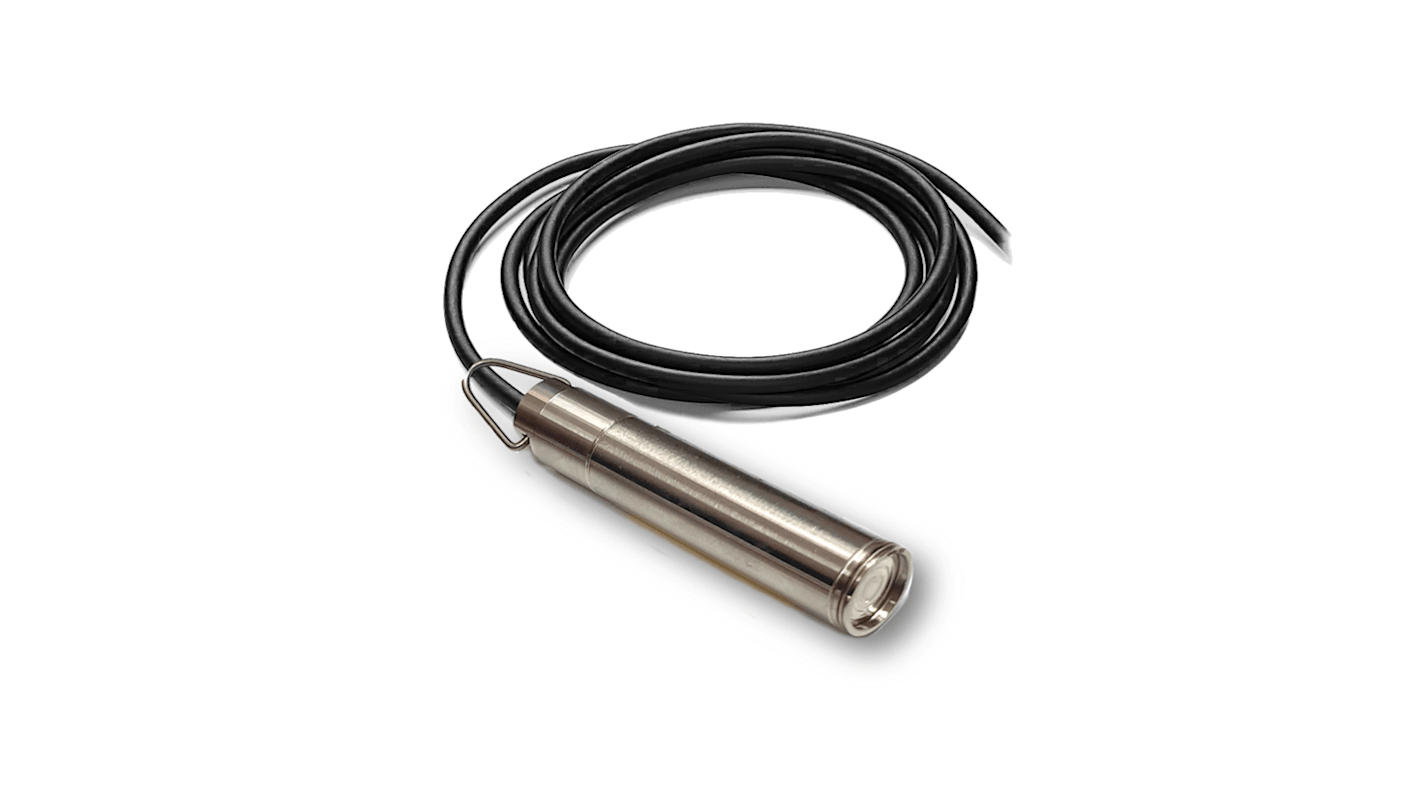

ATMI PIEZO AS Series Piezometric Level Sensors, 4-20mA Output, Cable Mount, Stainless Steel Body
- RS庫存編號:
- 208-5481
- 製造零件編號:
- PIEZOAS0-2mh20-10M
- 製造商:
- ATMI
當前暫無庫存，可於2024/5/13發貨，3 工作日送達。
單價 个
HK$7,977.60
| 單位 | Per unit |
| 1 - 4 | HK$7,977.60 |
| 5 + | HK$6,565.56 |
- RS庫存編號:
- 208-5481
- 製造零件編號:
- PIEZOAS0-2mh20-10M
- 製造商:
- ATMI
法例與合規
- COO (Country of Origin):
- FR
產品詳細資訊
This hydrostatic level probe allows to measure and control height of stable or moving liquid, concerning surface water (rivers, lakes, canals, muddy waters), thanks to its non-stick coating and its flush membrane.
The level measurement is carried out by measuring the differential pressure between the surface of the liquid and the position of the submerged transmitter. The pressure is converted into an electrical signal by piezo resistive technology and conditioned in a 4-20mA loop.
The level measurement is carried out by measuring the differential pressure between the surface of the liquid and the position of the submerged transmitter. The pressure is converted into an electrical signal by piezo resistive technology and conditioned in a 4-20mA loop.
Precision 1 %
Voltage range 8 to 36 VDC
Voltage range 8 to 36 VDC
規格
Attribute | Value |
|---|---|
| Device Type | Piezometric |
| Mounting Type | Cable Mount |
| Switch Output | 4-20mA |
| Body Material | Stainless Steel 316L |
| Cable Length | 10m |
| Maximum Operating Temperature | +40°C |
| Maximum DC Voltage | 36V |
| For Use With | Waste Water |
| Series | PIEZO AS |
