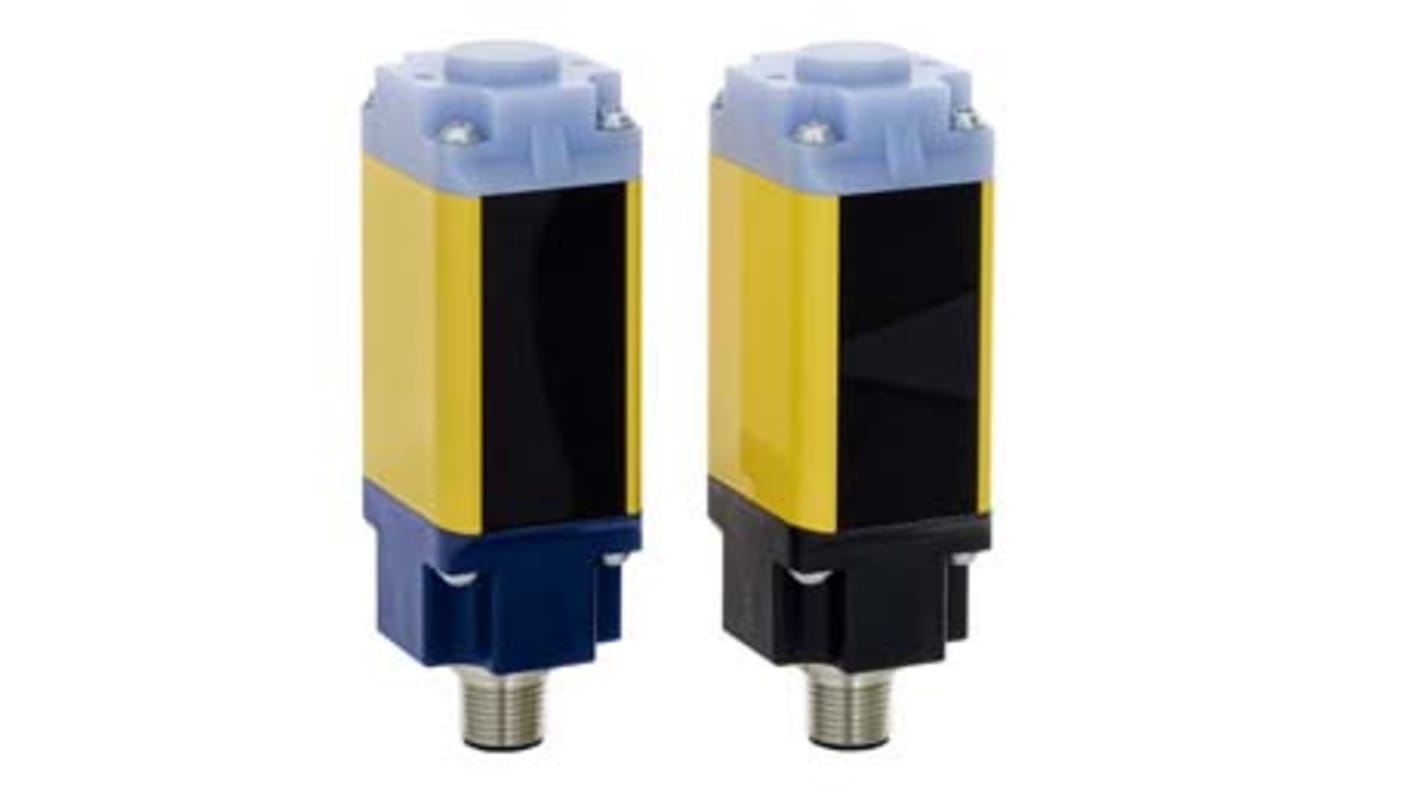

Schmersal SLB240 Series Light Beam Sender, 1 Beam(s), 15m Max Range
- RS庫存編號:
- 146-5815
- 製造零件編號:
- SLB240-E-1-ST
- 製造商:
- Schmersal
查看所有Light Detection and Ranging
- RS庫存編號:
- 146-5815
- 製造零件編號:
- SLB240-E-1-ST
- 製造商:
- Schmersal
- COO (Country of Origin):
- DE
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- DE
產品詳細資訊
Schmersal Light Beam Sender, 15m Maximum Range, 1 Beam - SLB240 Series - SLB240-E-1-ST
Increase safety in hazardous areas with this light beam sender from Schmersal. When the beam is interrupted, it sends a signal to a safety switch that cuts power to a machine, helping to prevent injury in your workplace. As no safety door is required, your work area stays visible at all times. To keep production running smoothly, the beam distinguishes between people and materials so that it only halts a process when personnel are at risk. This optoelectronic safety device is suitable for securing smaller areas, like machine openings or slots.
Features & Benefits
• Compact dimensions of 33 (length) x 27.8 (width) x 91mm (height) for installation in tight spaces
• IP67 rating indicates it's dust-tight and protected against submersion in 1m of water for up to 30 minutes
• IP67 rating indicates it's dust-tight and protected against submersion in 1m of water for up to 30 minutes
Applications
• Robotics
• Warehouses and packaging facilities
• Automotive industry
• Paper and pulp mills
• Warehouses and packaging facilities
• Automotive industry
• Paper and pulp mills
What's the reaction time of this light beam sender?
This light beam sender has a rapid reaction time of 7 to 22ms, so it immediately switches off a machine when there's a safety risk.
規格
| Attribute | Value |
| Series | SLB240 |
| Component Type | Sender |
| Maximum Scanning Distance | 15m |
| Minimum Scanning Distance | 300mm |
| Safety Type | 2 |
| SIL IEC 61508 | SIL 1 |
| PL EN ISO 13849-1 | PL c |
| Number of Beams | 1 |
| Peak Wavelength | 880nm |
| Maximum Response Time | 22 ms |
| Terminal Type | M12 Plug |
| Dimensions | 33 x 27.8 x 91 mm |
| Diameter | M12 |
| Features | Automatic Start or Restart Interlock, Compact Design with Integral Evaluation, Range 15 m, Safe OSSD Outputs to Plc, Set-up Tool & Diagnostic Indication, Sturdy Metal Enclosure with M12 Connector or Cable |
| Width | 27.8mm |
| Application | Body |
| Length | 33mm |
| Height | 91mm |
