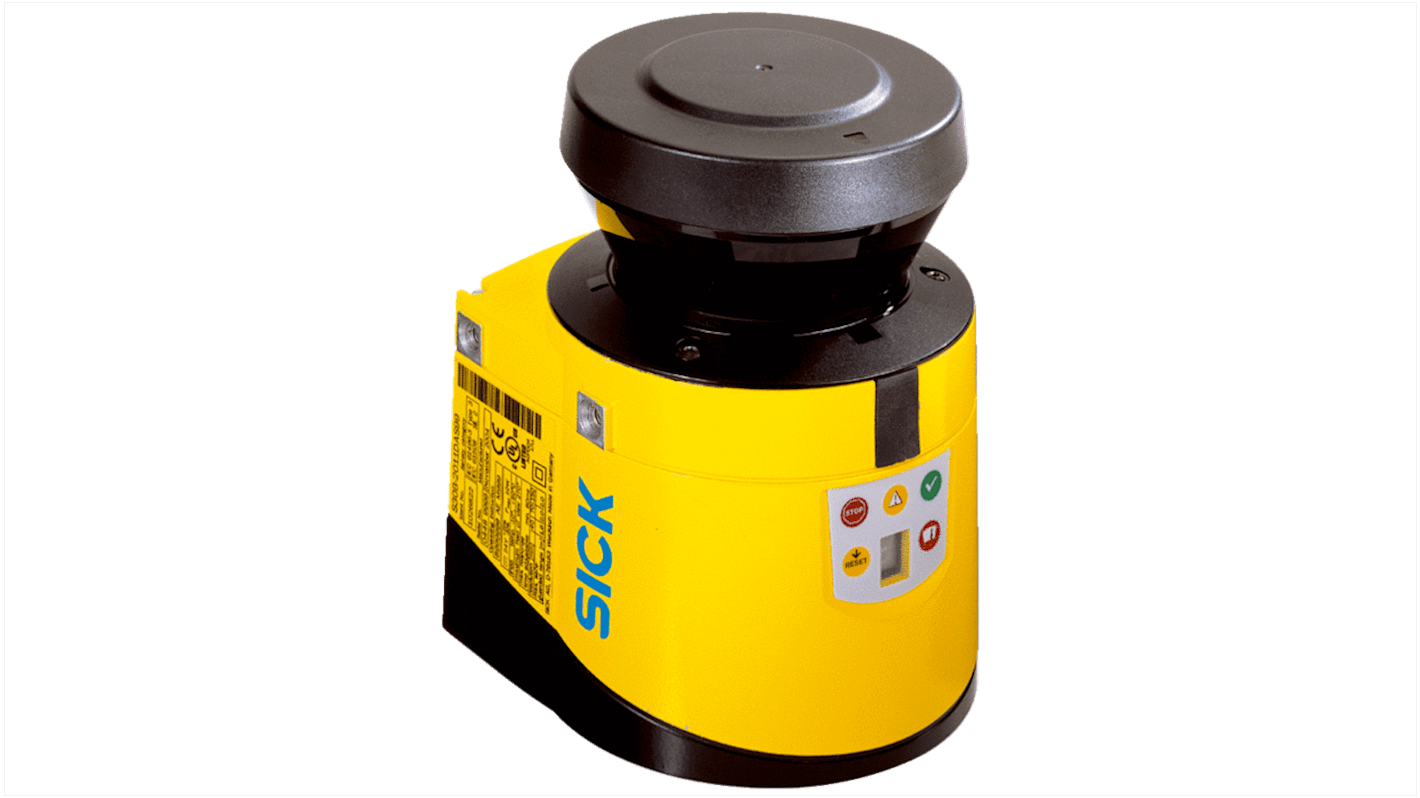

SICK S300 Advanced Series Laser Scanner Scanner, 30m Max Range

查看所有Light Detection and Ranging

小計（1 件）*

HK$45,519.49

Add to Basket
選擇或輸入數量
有庫存
  • 1 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
1 +HK$45,519.49

* 參考價格

RS庫存編號:
231-1896
製造零件編號:
S30B-2011CA / 1026821
製造商:
SICK
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

SICK

Series

S300 Advanced

Component Type

Scanner

Maximum Scanning Distance

30m

Safety Type

3

SIL IEC 61508

2

PL EN ISO 13849-1

d

Maximum Response Time

80000 μs

Terminal Type

Plug

Dimensions

102 x 152 x 106 mm

Protective Height

2000mm

Length

106mm

Features

EDM

Application

Area, Body, Hand

Height

152mm

Width

102mm

Overview


The S300 Advanced meets the highest standards and is particularly suitable for mobile and stationary applications. Production processes can be easily optimized thanks to the four protective fields and eight warning fields. The new triple-field mode allows the simultaneous activation of three fields: one protective field and two warning fields. The integrated EFI interface improves interoperability with other safety laser scanners and safety controls from SICK. In addition, the configuration memory integrated in the connection system facilitates quick commissioning and replacement of the device. The CDS software (Configuration & Diagnostic Software) is used to define the protective fields

At a glance


Compact size
2 or 3 m protective field range
270 ° scan angle
4 switchable field sets
Configuration memory integrated in the system connector
Safe communication interface (EFI) of SICK devices
Output of measurement data via RS-422
Reference contour for vertical applications

Your Benefit


Smooth integration thanks to its compact dimensions
Easy installation, commissioning and maintenance for fixed and mobile applications
Unparalleled cost-effectiveness: 270 ° scanning angle allows 360 ° control with just two scanners
Safety technology, without loss of productivity
Fast commissioning thanks to configuration memory
Easy modular expansions, limited wiring and additional functions with SICK safety controllers via EFI
Safety techniques, proven for decades, guarantee optimum reliability and availability, even under difficult conditions
Easy alignment and safe vertical operation

Applications


Protection of hazardous areas or prevention of bypassing at loading and unloading stations.
Protection of hazardous areas in production lines
Protection of driverless vehicles
Protection of small driverless vehicles (automated guided carts)
Access control at entry / exit stations
Access control on machines and installations
Protection of hazardous points at the installation site
Safe robotic platform for final testing of navigation systems
Secure material lock for standard palletizing tasks
Secure material lock for standard palletizing tasks
