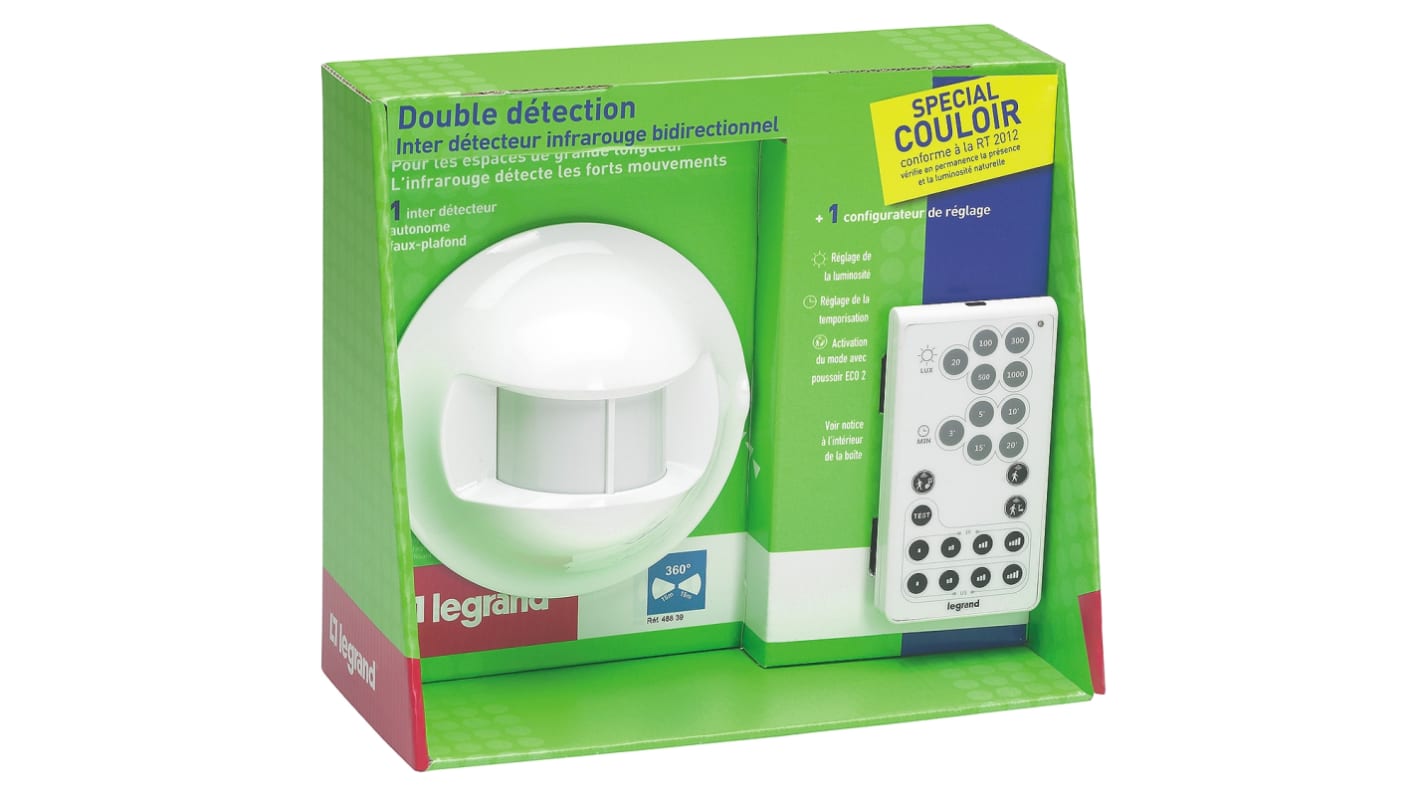

Legrand Mosaic ECO 2 0.4W Ceiling PIR Detector Motion Detector, Ceiling Mount

  • RS庫存編號 827-2705
  • 製造零件編號 0 488 39
  • 製造商 Legrand
產品概覽和技術數據資料表
法例與合規
相容
COO (Country of Origin): CN
產品詳細資訊

Legrand Mosaic ECO2 Ceiling Mounted Ambient Light IR Daylight Detector

The Legrand 048839 is an ECO2 ready to install programmable daylight detector for lighting control.

Dual technology daylight and lighting control in one configurable unit
Control of light sources: 2000 W max halogen, 230V
1000 VA max (halogen) halogen, fluorescent and neon with ballast
500 W max compact fluorescent and LED
Motion detector comes with configurator
Automatic switching on and off (default setting)
Brightness threshold adjustable 5-1275 lux
Ceiling mounted
Suitable for installation in high traffic areas like hallways
Set comprises 1 x 360° dual technology detector and a remote configuation keypad
ECO2

Supplied with

Configurator keypad.

Lighting Controllers

When body heat is detected, the load is switched on. At a preset time after movement has ceased the load is automatically switched off. Available for standard lighting or electrical appliance applications.

規格
Attribute Value
Controller Type Motion Detector
Mount Type Ceiling
Range 15 m
Power Consumption 400mW
Time Delay 5 s, 59 min
Series Mosaic ECO 2
1 在3 工作日內發貨 (海外庫存)
1 在3 工作日內發貨 (海外庫存)
單價 個
HK$ 1,855.35
(不含稅)
單位
Per unit
1 +
HK$1,855.35
