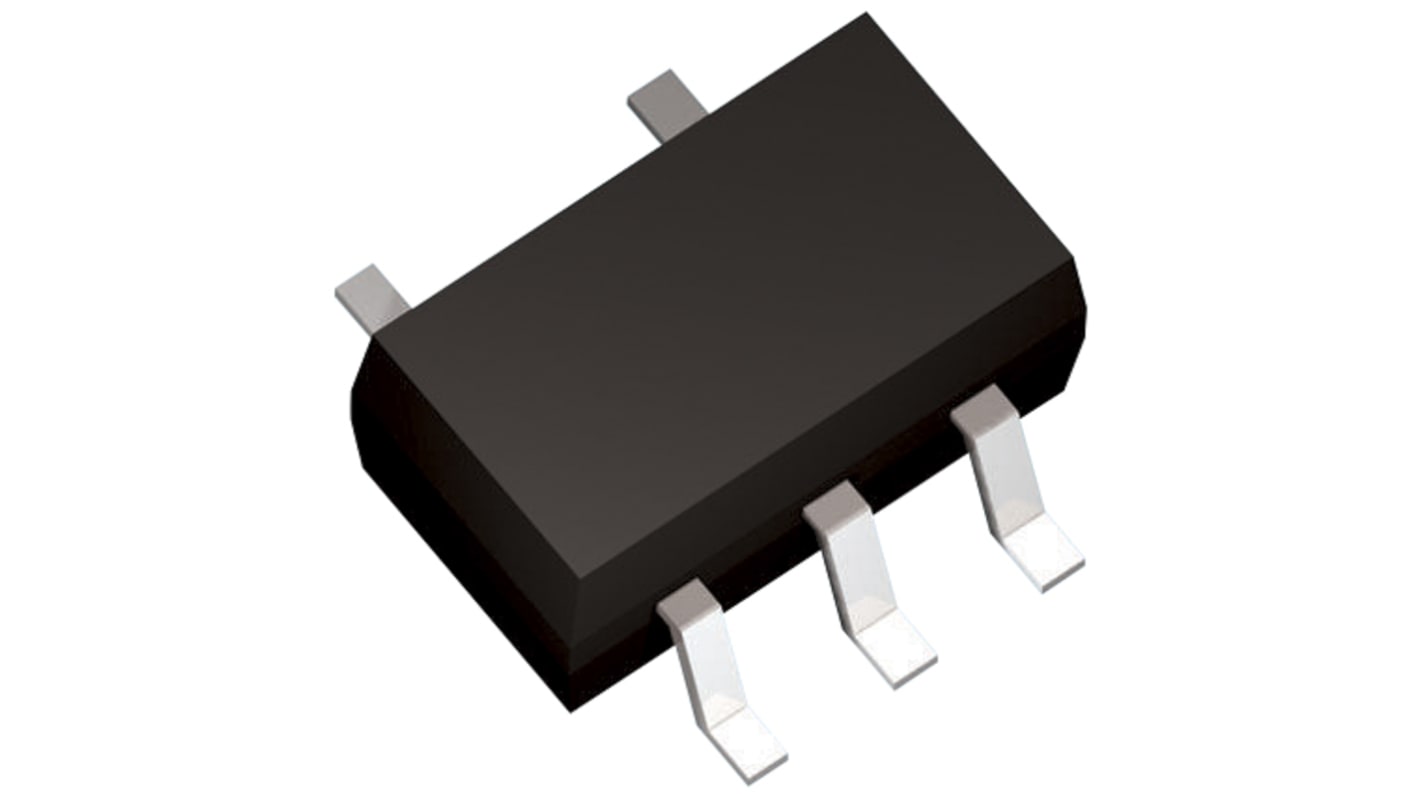

Toshiba TC7SZ86FU 2-Input XOR Logic Gate, 5-Pin SOT-353
- RS庫存編號:
- 171-3159
- 製造零件編號:
- TC7SZ86FU
- 製造商:
- Toshiba
500 現貨庫存，可於3工作日發貨。
已增加
單價 个（每托盘 100 ）
HK$1.085
| 單位 | Per unit | Per Pack* |
| 100 - 700 | HK$1.085 | HK$108.50 |
| 800 - 1400 | HK$1.058 | HK$105.80 |
| 1500 + | HK$1.042 | HK$104.20 |
| * 參考價格 | ||
- RS庫存編號:
- 171-3159
- 製造零件編號:
- TC7SZ86FU
- 製造商:
- Toshiba
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
Wide operating temperature range: Topr = -40 to 125 (Note 2)
High output current: ±24 mA (min) at VCC = 3.0 V
Super high speed operation: tpd = 2.9 ns (typ.) at VCC = 5.0 V, CL = 50 pF
Operation voltage range: VCC = 1.65 to 5.5 V
5.5 V tolerant inputs
5.5 V power down protection output
Matches the performance of TC74LCX series when operated at 3.3 V VCC
High output current: ±24 mA (min) at VCC = 3.0 V
Super high speed operation: tpd = 2.9 ns (typ.) at VCC = 5.0 V, CL = 50 pF
Operation voltage range: VCC = 1.65 to 5.5 V
5.5 V tolerant inputs
5.5 V power down protection output
Matches the performance of TC74LCX series when operated at 3.3 V VCC
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
規格
Attribute | Value |
|---|---|
| Logic Function | XOR |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Number of Inputs per Gate | 2 |
| Package Type | SOT-353 |
| Pin Count | 5 |
| Input Type | CMOS |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum High Level Output Current | -32mA |
| Maximum Propagation Delay Time @ Maximum CL | 13.5 ns @ 15 pF |
| Minimum Operating Supply Voltage | 1.65 V |
| Maximum Low Level Output Current | 32mA |
| Height | 0.9mm |
| Width | 1.25mm |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 2 x 1.25 x 0.9mm |
| Automotive Standard | AEC-Q100 |
| Propagation Delay Test Condition | 15pF |
| Output Type | CMOS |
| Maximum Operating Temperature | +125 °C |
| Length | 2mm |
