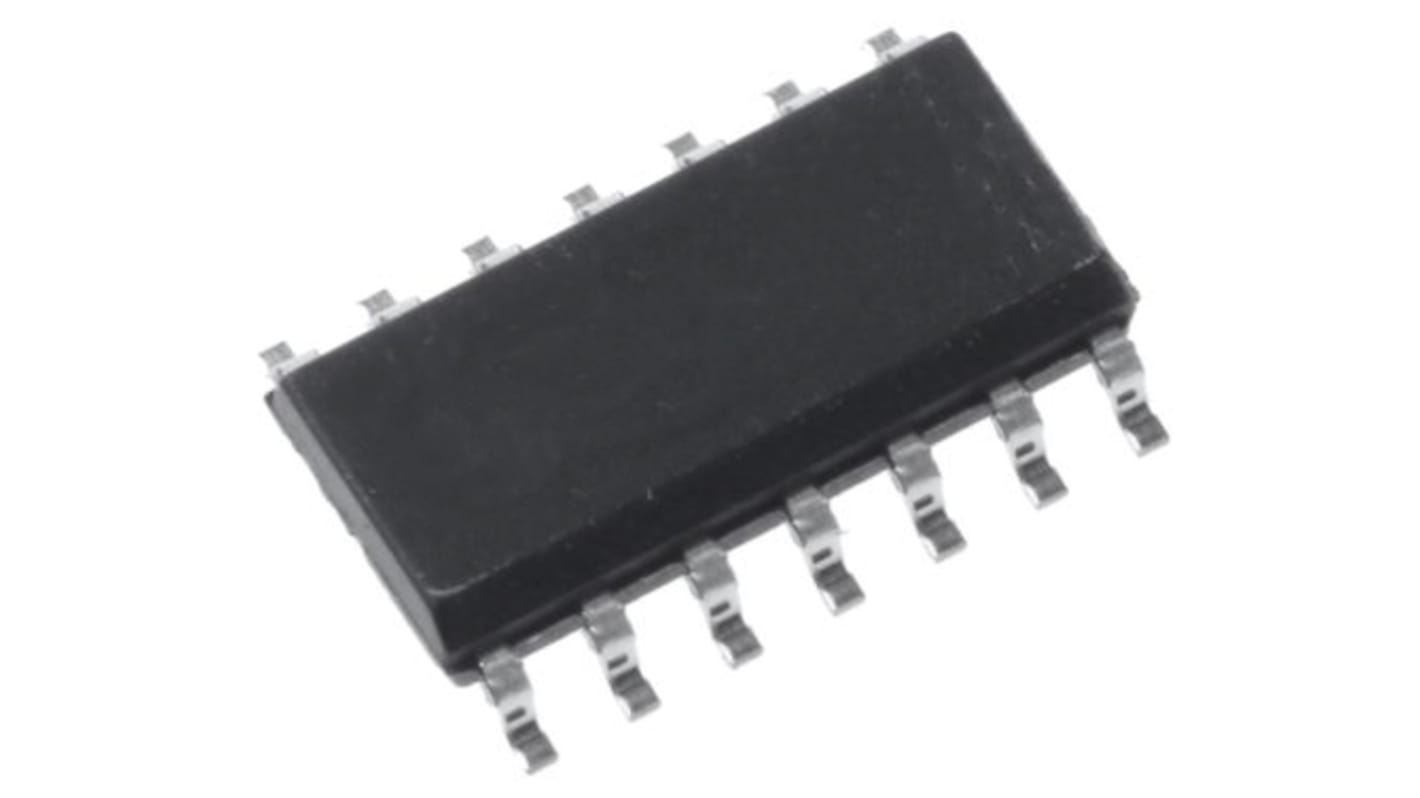

onsemi MC74ACT08DG, Quad 2-Input AND Logic Gate, 14-Pin SOIC
- RS庫存編號:
- 186-8310
- 製造零件編號:
- MC74ACT08DG
- 製造商:
- onsemi
可享批量折扣
小計（1 包，共 25 件）*
HK$59.60
訂單超過 HK$250.00 免費送貨
暫時缺貨
- 從 2026年4月02日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 | 每包* |
|---|---|---|
| 25 - 100 | HK$2.384 | HK$59.60 |
| 125 + | HK$2.352 | HK$58.80 |
* 參考價格
- RS庫存編號:
- 186-8310
- 製造零件編號:
- MC74ACT08DG
- 製造商:
- onsemi
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | onsemi | |
| Logic Function | AND | |
| Mounting Type | Surface Mount | |
| Number of Elements | 4 | |
| Number of Inputs per Gate | 2 | |
| Package Type | SOIC | |
| Pin Count | 14 | |
| Logic Family | ACT | |
| Input Type | TTL | |
| Maximum Operating Supply Voltage | 5.5 V | |
| Maximum High Level Output Current | -24mA | |
| Maximum Propagation Delay Time @ Maximum CL | 10 ns @ 50 pF | |
| Minimum Operating Supply Voltage | 4.5 V | |
| Maximum Low Level Output Current | 24mA | |
| Minimum Operating Temperature | -40 °C | |
| Dimensions | 8.75 x 4 x 1.5mm | |
| Width | 4mm | |
| Height | 1.5mm | |
| Length | 8.75mm | |
| Maximum Operating Temperature | +85 °C | |
| Propagation Delay Test Condition | 50pF | |
| 選取全部 | ||
|---|---|---|
品牌 onsemi | ||
Logic Function AND | ||
Mounting Type Surface Mount | ||
Number of Elements 4 | ||
Number of Inputs per Gate 2 | ||
Package Type SOIC | ||
Pin Count 14 | ||
Logic Family ACT | ||
Input Type TTL | ||
Maximum Operating Supply Voltage 5.5 V | ||
Maximum High Level Output Current -24mA | ||
Maximum Propagation Delay Time @ Maximum CL 10 ns @ 50 pF | ||
Minimum Operating Supply Voltage 4.5 V | ||
Maximum Low Level Output Current 24mA | ||
Minimum Operating Temperature -40 °C | ||
Dimensions 8.75 x 4 x 1.5mm | ||
Width 4mm | ||
Height 1.5mm | ||
Length 8.75mm | ||
Maximum Operating Temperature +85 °C | ||
Propagation Delay Test Condition 50pF | ||
MC74ACT Family, ON Semiconductor
Quad 2-Input AND Gate High−Performance Silicon−Gate CMOS
Outputs Source/Sink 24 mA
ACT04 Has TTL Compatible Inputs
These are Pb−Free Devices
ACT04 Has TTL Compatible Inputs
These are Pb−Free Devices
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
74ACT Family
