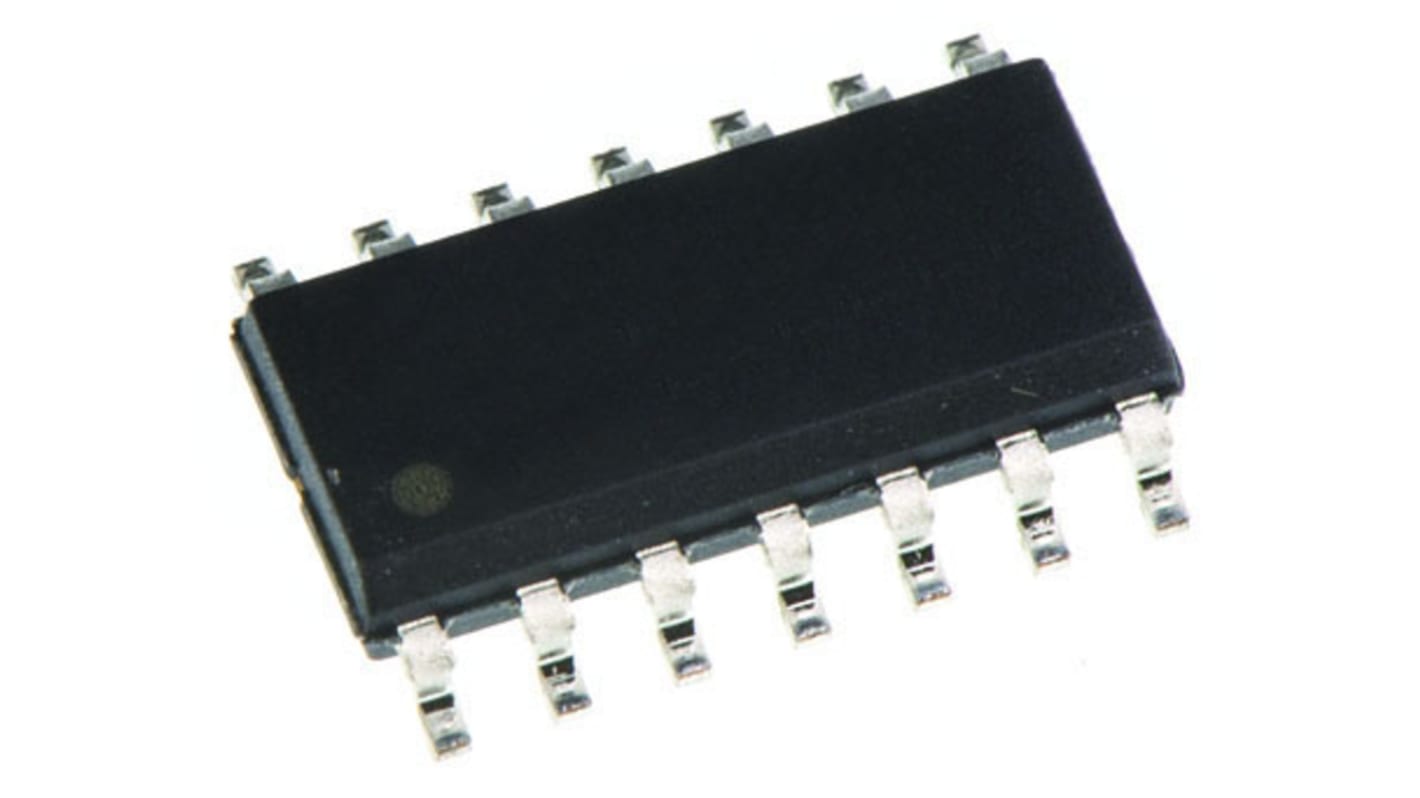

Texas Instruments CD74HCT11M, Triple 3-Input AND Logic Gate, 4.5 → 5.5 V, 14-Pin SOIC
- RS庫存編號 663-0468
- 製造零件編號 CD74HCT11M
- 製造商 Texas Instruments
產品概覽和技術數據資料表
產品詳細資訊
74HCT Family Logic Gates, Texas Instruments
Texas Instruments range of standard Logic Gates from the 74HCT Family of CMOS Logic ICs. Inputs of the 74HCT family are 74LSTTL compatible, and the products use silicon gate CMOS technology to achieve operating speeds similar to the LSTTL family but with the low power consumption of standard CMOS integrated circuits.
High-Speed CMOS Logic
Operating Voltage 4.5 to 5.5 V
Compatibility: Input TTL, Output CMOS
74HCT Family
規格
| Attribute | Value |
|---|---|
| Logic Function | AND |
| Mounting Type | Surface Mount |
| Number of Elements | 3 |
| Number of Inputs per Gate | 3 |
| Schmitt Trigger Input | No |
| Package Type | SOIC |
| Pin Count | 14 |
| Logic Family | HCT |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum High Level Output Current | -4mA |
| Maximum Propagation Delay Time @ Maximum CL | 28 ns @ 4.5 V |
| Minimum Operating Supply Voltage | 4.5 V |
| Maximum Low Level Output Current | 4mA |
| Width | 3.91mm |
| Dimensions | 8.65 x 3.91 x 1.58mm |
| Height | 1.58mm |
| Maximum Operating Temperature | +125 °C |
| Length | 8.65mm |
| Minimum Operating Temperature | -55 °C |
| Propagation Delay Test Condition | 50pF |
230 現貨庫存，可於3工作日發貨。
單價 /個 (每包:10個)
HK$
2.841
(不含稅)
單位
Per unit
Per Pack*
10 - 40
HK$2.841
HK$28.41
50 - 90
HK$2.785
HK$27.85
100 - 240
HK$2.729
HK$27.29
250 - 490
HK$2.674
HK$26.74
500 +
HK$2.621
HK$26.21
* 參考價格
由於暫時的供應限制，RS目前不接受延期交貨訂單。
