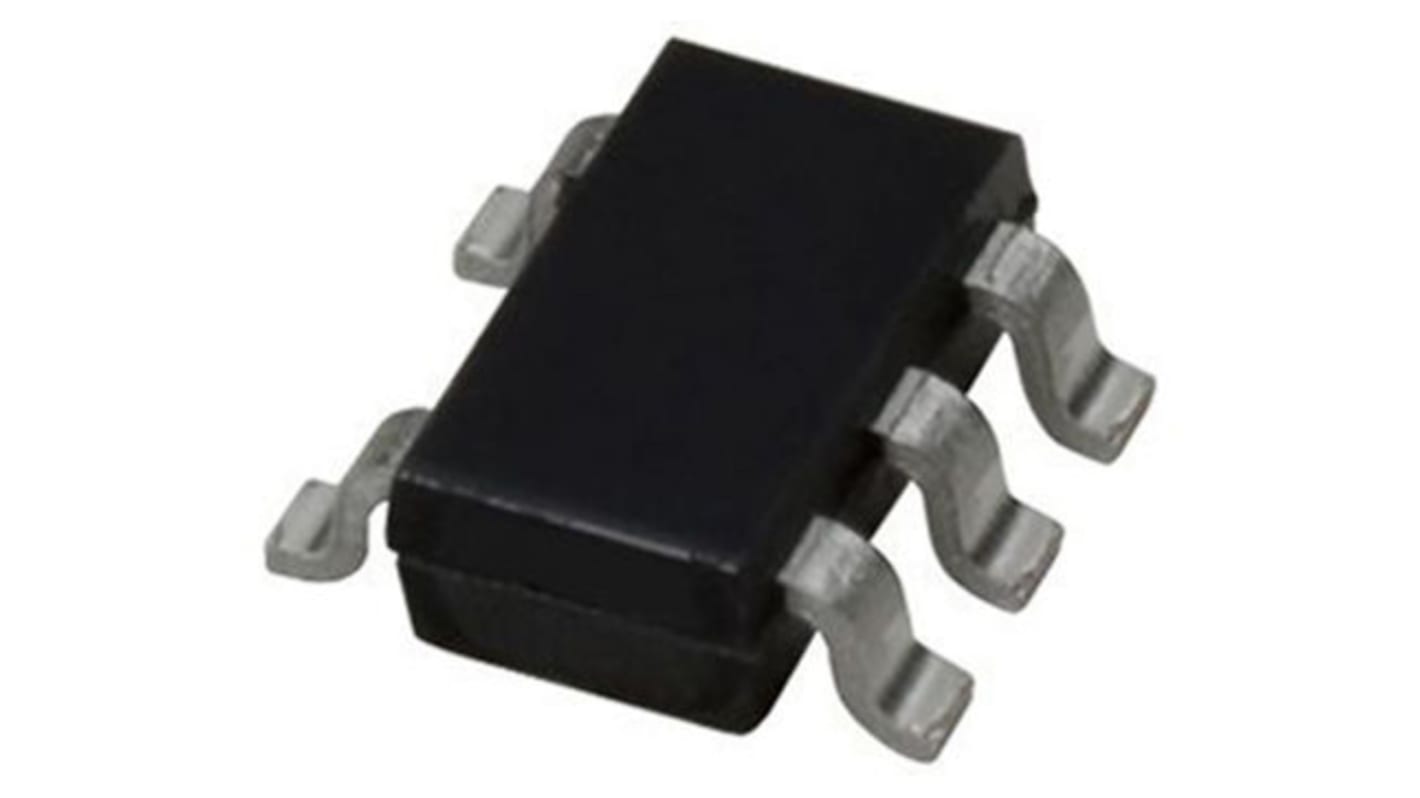

DiodesZetex 74AHCT1G32SE-7 2-Input OR Logic Gate, 5-Pin SOT-353
- RS庫存編號:
- 921-0271P
- 製造零件編號:
- 74AHCT1G32SE-7
- 製造商:
- DiodesZetex
可享批量折扣
Price 个 (以每卷裝提供)**
HK$0.619
2300 現貨庫存，可於3工作日發貨。*
* 交貨日期可能會根據您選擇的數量和交貨地址而變更。
訂單金額滿 HK$250.00 即可享受 免費 送貨服務
即時庫存查詢
單位 | 每單位 |
|---|---|
| 800 - 1400 | HK$0.619 |
| 1500 + | HK$0.61 |
** 參考價格
- RS庫存編號:
- 921-0271P
- 製造零件編號:
- 74AHCT1G32SE-7
- 製造商:
- DiodesZetex
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | DiodesZetex | |
| Logic Function | OR | |
| Mounting Type | Surface Mount | |
| Number of Elements | 1 | |
| Number of Inputs per Gate | 2 | |
| Schmitt Trigger Input | No | |
| Package Type | SOT-353 | |
| Pin Count | 5 | |
| Logic Family | AHCT | |
| Input Type | CMOS | |
| Maximum Operating Supply Voltage | 5.5 V | |
| Maximum High Level Output Current | -8mA | |
| Maximum Propagation Delay Time @ Maximum CL | 10 ns @ 50 pF | |
| Minimum Operating Supply Voltage | 4.5 V | |
| Maximum Low Level Output Current | 8mA | |
| Dimensions | 2.2 x 1.35 x 1mm | |
| Length | 2.2mm | |
| Minimum Operating Temperature | -40 °C | |
| Propagation Delay Test Condition | 50pF | |
| Output Type | Totem Pole | |
| Maximum Operating Temperature | +125 °C | |
| Height | 1mm | |
| Width | 1.35mm | |
選取全部 | ||
|---|---|---|
品牌 DiodesZetex | ||
Logic Function OR | ||
Mounting Type Surface Mount | ||
Number of Elements 1 | ||
Number of Inputs per Gate 2 | ||
Schmitt Trigger Input No | ||
Package Type SOT-353 | ||
Pin Count 5 | ||
Logic Family AHCT | ||
Input Type CMOS | ||
Maximum Operating Supply Voltage 5.5 V | ||
Maximum High Level Output Current -8mA | ||
Maximum Propagation Delay Time @ Maximum CL 10 ns @ 50 pF | ||
Minimum Operating Supply Voltage 4.5 V | ||
Maximum Low Level Output Current 8mA | ||
Dimensions 2.2 x 1.35 x 1mm | ||
Length 2.2mm | ||
Minimum Operating Temperature -40 °C | ||
Propagation Delay Test Condition 50pF | ||
Output Type Totem Pole | ||
Maximum Operating Temperature +125 °C | ||
Height 1mm | ||
Width 1.35mm | ||
