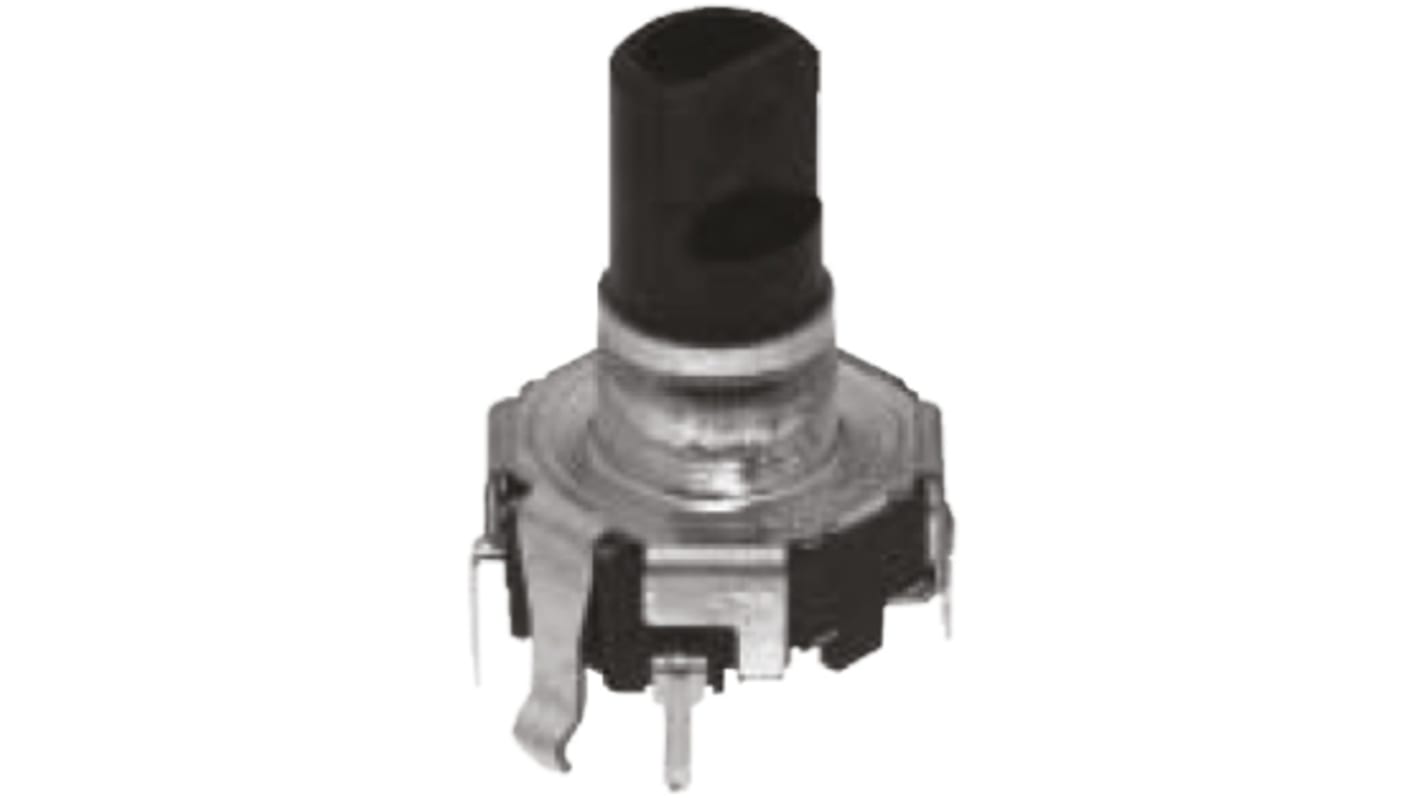

Alps Alpine 15 Pulse Incremental Mechanical Rotary Encoder with a 5.975 mm Flat Shaft (Not Indexed), Through Hole
- RS庫存編號:
- 172-6332
- 製造零件編號:
- EC12D1564404
- 製造商:
- Alps Alpine
此圖片僅供參考，請參閲產品詳細資訊及規格
庫存資訊目前無法查詢
- RS庫存編號:
- 172-6332
- 製造零件編號:
- EC12D1564404
- 製造商:
- Alps Alpine
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Alps Alpine | |
| Pulses Per Revolution | 15 | |
| Shaft Style | Flat | |
| Shaft Diameter | 5.975 mm | |
| Encoder Reading | Incremental | |
| Encoder Signal | Digital Square Wave | |
| Shaft Length | 17.5mm | |
| Mounting Type | Through Hole | |
| Index Output | Not Indexed | |
| Mounting Hole Diameter | 1.05 mm, 2.1 mm, 2.15 x 2.05 mm | |
| 選取全部 | ||
|---|---|---|
品牌 Alps Alpine | ||
Pulses Per Revolution 15 | ||
Shaft Style Flat | ||
Shaft Diameter 5.975 mm | ||
Encoder Reading Incremental | ||
Encoder Signal Digital Square Wave | ||
Shaft Length 17.5mm | ||
Mounting Type Through Hole | ||
Index Output Not Indexed | ||
Mounting Hole Diameter 1.05 mm, 2.1 mm, 2.15 x 2.05 mm | ||
- COO (Country of Origin):
- JP
12mm Snap-in Insulated Shaft Encoder - EC12 Series
Insulated shaft type with a wide variety of applications
EC12D series comes with Push-on Switch
Typical rating 5Vdc, 0.5mA
Operating life 15,000 cycles (without Detent)
30,000 cycles (with Detent)
Operating Temperature ｰ10 to +70℃ (EC12E)
ｰ40 to +85℃ (EC12D)
EC12D series comes with Push-on Switch
Typical rating 5Vdc, 0.5mA
Operating life 15,000 cycles (without Detent)
30,000 cycles (with Detent)
Operating Temperature ｰ10 to +70℃ (EC12E)
ｰ40 to +85℃ (EC12D)
