Microchip AC243008, Serial SuperFlash(R) Kit 2 Serial Flash Evaluation Board for DM240001, DM240001-2
- RS庫存編號:
- 165-5117
- 製造零件編號:
- AC243008
- 製造商:
- Microchip
庫存資訊目前無法查詢
- RS庫存編號:
- 165-5117
- 製造零件編號:
- AC243008
- 製造商:
- Microchip
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Microchip | |
| Memory Technology | Serial Flash | |
| Kit Classification | Evaluation Board | |
| For Use With | Explorer 16 Development Board (DM240001), Explorer 16/32 Development Board (DM240001-2) | |
| Featured Device | DM240001, DM240001-2 | |
| Kit Name | Serial SuperFlash(R) Kit 2 | |
| 選取全部 | ||
|---|---|---|
品牌 Microchip | ||
Memory Technology Serial Flash | ||
Kit Classification Evaluation Board | ||
For Use With Explorer 16 Development Board (DM240001), Explorer 16/32 Development Board (DM240001-2) | ||
Featured Device DM240001, DM240001-2 | ||
Kit Name Serial SuperFlash(R) Kit 2 | ||

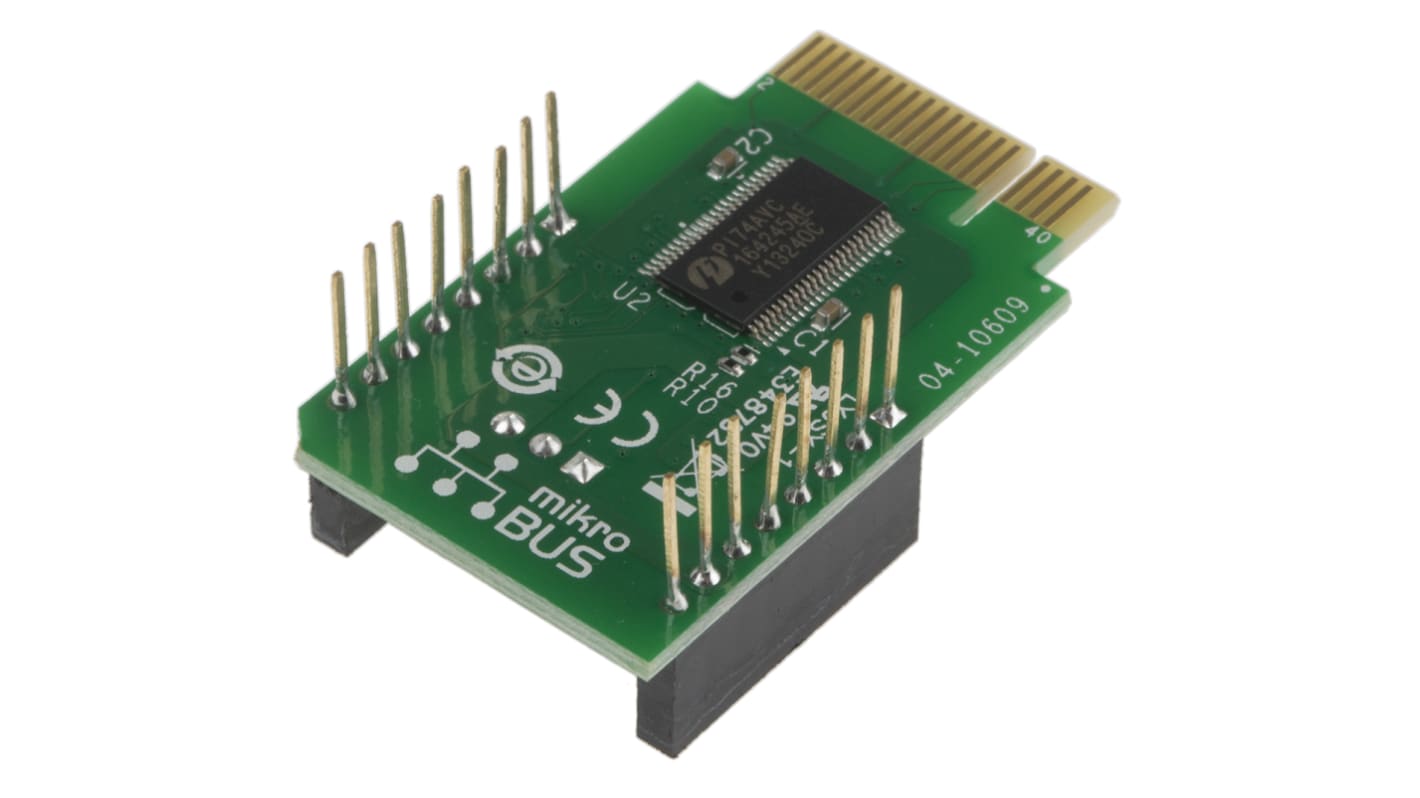

The Serial SuperFlash® Kit 2 allows evaluation of Microchip's Serial Flash Devices which are made using the SST SuperFlash® technology. The Serial SuperFlash Kit 2 contains three Serial Flash Daughter Boards. The Serial Flash Daughter Board is an evaluation board designed to interface with the mikroBUS™ connector on the Explorer 16/32 Development Board (DM240001-2). It can also interface with the PICtail™ Plus connector located on the Explorer 16 Development Board (DM240001).
3-pin header provides easy access for the external power supply and power measurement capability
Plugs into the mikroBUS connector of the Explorer 16/32 Development Board
Plugs into the PICtail Plus connector of the Explorer 16 Development BoardFollows published recommended usage, including decoupling capacitors
Plugs into the mikroBUS connector of the Explorer 16/32 Development Board
Plugs into the PICtail Plus connector of the Explorer 16 Development BoardFollows published recommended usage, including decoupling capacitors
