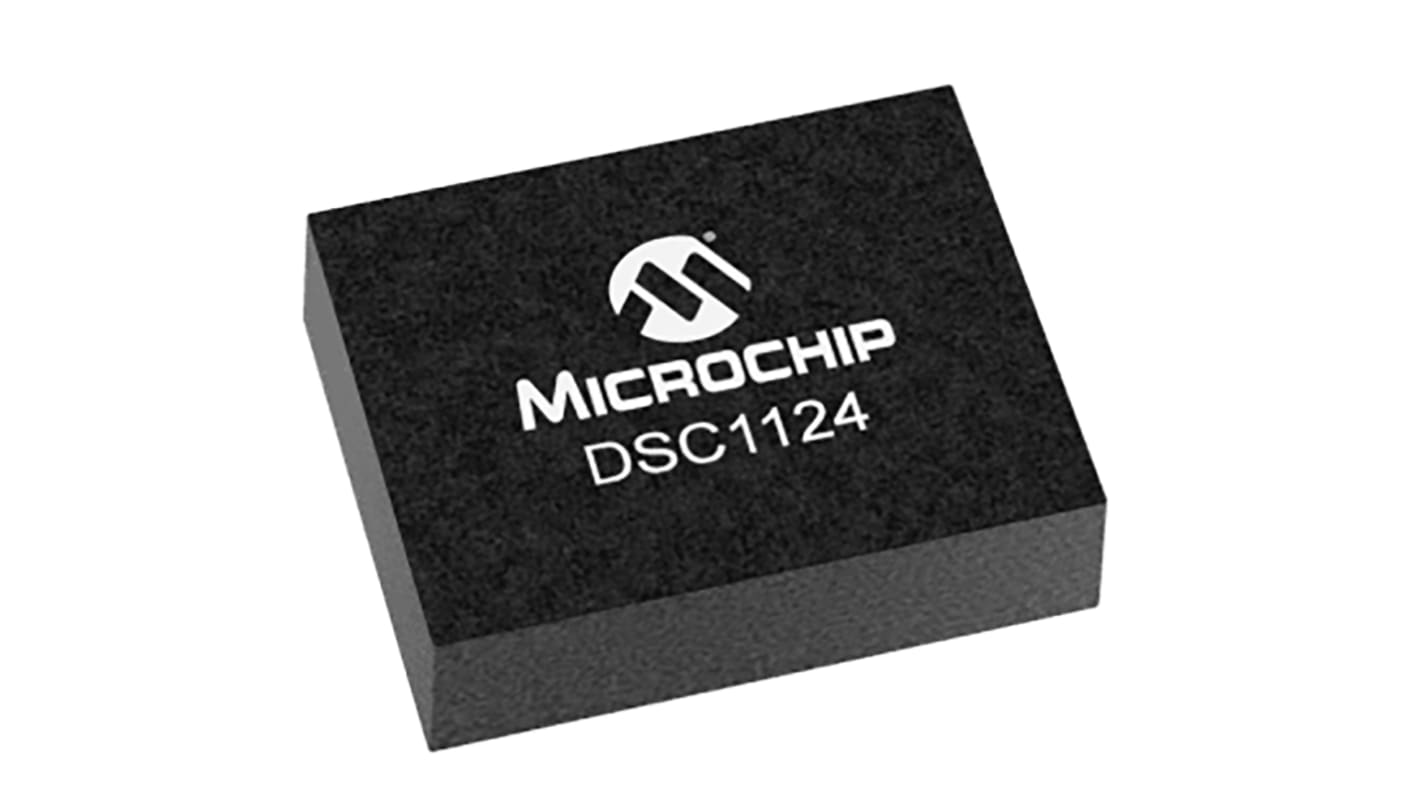

Microchip 156MHz MEMS Oscillator, 6-Pin CDFN, ±50ppm, DSC1124CI1-156.2500T
- RS庫存編號:
- 176-0746
- 製造零件編號:
- DSC1124CI1-156.2500T
- 製造商:
- Microchip
查看所有MEMS Oscillators
當前暫無庫存,可於2023/9/28發貨,3 工作日送達。
單價 個 (在毎卷:1000)
HK$15.425
單位 | Per unit | Per Reel* |
1000 - 4000 | HK$15.425 | HK$15,425.00 |
5000 + | HK$13.883 | HK$13,883.00 |
* 參考價格 |
- RS庫存編號:
- 176-0746
- 製造零件編號:
- DSC1124CI1-156.2500T
- 製造商:
- Microchip
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
The DSC series of high performance oscillators utilizes a proven silicon MEMS technology to provide excellent jitter and stability over a wide range of supply voltages and temperatures. By eliminating the need for quartz or SAW technology, MEMS oscillators significantly enhance reliability and accelerate product development, while meeting stringent clock performance criteria for a variety of communications, storage, and networking applications.
Low RMS Phase Jitter: <1 ps (typ.)
High Stability: ±10, ±25, ±50 ppm
Wide Temperature Range
Industrial: -40°C to 85°C
Ext. commercial: -20°C to 70°C
High Supply Noise Rejection: -50dBc
Wide Freq. Range: 2.3 to 460MHz
Small Industry Standard Footprint
Excellent Shock & Vibration Immunity
High Reliability
20x better MTF than quartz oscillators
Low Current Consumption
Supply Range of 2.25V to 3.6V
Standby & Output Enable Function
Lead free
High Stability: ±10, ±25, ±50 ppm
Wide Temperature Range
Industrial: -40°C to 85°C
Ext. commercial: -20°C to 70°C
High Supply Noise Rejection: -50dBc
Wide Freq. Range: 2.3 to 460MHz
Small Industry Standard Footprint
Excellent Shock & Vibration Immunity
High Reliability
20x better MTF than quartz oscillators
Low Current Consumption
Supply Range of 2.25V to 3.6V
Standby & Output Enable Function
Lead free
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
規格
Attribute | Value |
Oscillator Type | MEMS |
Maximum Output Frequency | 156MHz |
Frequency Stability | ±50ppm |
Mounting Type | Surface Mount |
Package Type | CDFN |
Pin Count | 6 |
Dimensions | 3.2 x 2.5 x 0.85mm |
Length | 3.2mm |
Width | 2.5mm |
Height | 0.85mm |
Maximum Operating Temperature | 85°C |
Minimum Operating Temperature | -40°C |
